ANSI 150 Stainless Steel Flanged Double Acting Fire Safe Ball Valve

From $247.50

In Stock
Make an Enquiry

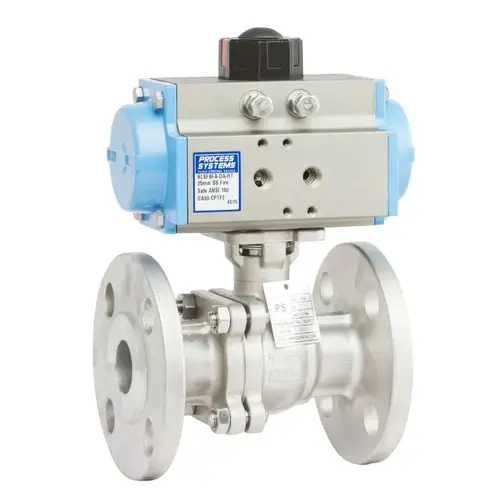

High quality 316 Stainless Steel ANSI 150 flanged 2 way ball valve with a direct mounted double acting pneumatic actuator. This allows the user to air open/air close the ball valve. Features reinforced Teflon seats (RTFE) allowing it to handle media up to 180°C and an anodised aluminium actuator with visual indicator. Ball valve designed & manufactured to ANSI B16.34, face to face complies with ANSI B16.10, flange ends comply with ANSI B16.5 and testing and inspection according to API598. Great for fuel applications, pipelines, water treatment and general industry. Ball valve Firesafe Approved API607 Sixth Edition, Cert. No 230679.

Model Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BLS4FA-DA-RT 15 DA50 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8" BSP
BLS5FA-DA-RT 20 DA50 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8" BSP
BLS6FA-DA-RT 25 DA50 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8" BSP
BLS7FA-DA-RT 32 DA63 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8" BSP
BLS8FA-DA-RT 40 DA63 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8" BSP
BLS9FA-DA-RT 50 DA75 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8" BSP
BLS10FA-DA-RT 63 DA88 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8" BSP
BLS11FA-DA-RT 80 DA100 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4" BSP
BLS12FA-DA-RT 100 DA115 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4" BSP
BLS13FA-DA-RT 125 DA125 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4" BSP
BLS14FA-DA-RT 150 DA145 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4" BSP
BLS15FA-DA-RT 200 DA160 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4" BSP
BLS16FA-DA-RT 250 DA200 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4" BSP
BLS17FA-DA-RT 300 DA240 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4" BSP

Double Acting Flanged Fire Safe Stainless Steel Ball Valve

Double Acting Flanged Fire Safe Stainless Steel Ball Valve

Model Size (mm) Actuator Ød L f b Z-Ød1 ØD ØD1 ØD2 h J K P
BLSF4FA-DA-RT 15 DA50 15 108 2 11 4-Ø15 89 60.5 35 48 90 138 1/8"
BLSF5FA-DA-RT 20 DA50 20 117 2 11 4-Ø15 98 70 43 53 90 138 1/8"
BLSF6FA-DA-RT 25 DA50 25 127 2 12 4-Ø15 108 79.5 51 58.5 90 138 1/8"
BLSF7FA-DA-RT 32 DA63 32 140 2 13 4-Ø15 117 89 64 71 100 162 1/8"
BLSF8FA-DA-RT 40 DA63 40 165 2 15 4-Ø15 127 98.5 73 76.5 100 162 1/8"
BLSF9FA-DA-RT 50 DA75 50 178 2 16 4-Ø19 152 120.05 92 85 117 208 1/8"
BLSF10FA-DA-RT 65 DA88 65 190 2 18 4-Ø19 178 139.5 105 110 136 245 1/8"
BLSF11FA-DA-RT 80 DA100 80 203 2 19 4-Ø19 190 152.5 127 122.5 142 266 1/4"
BLSF12FA-DA-RT 100 DA115 100 229 2 24 8-Ø19 229 190.5 157 145.5 172 310 1/4"
BLSF13FA-DA-RT 125 DA125 125 356 2 24 8-Ø19 254 216 186 185 184 340 1/4"
BLSF14FA-DA-RT 150 DA145 150 394 2 26 8-Ø22 279 241.5 216 202.5 209 401 1/4"
BLSF15FA-DA-RT 200 DA160 200 457 2 29 8-Ø22 343 298.5 270 257 222 430 1/4"

All dimension in mm unless shown otherwise.

Double Acting Flanged Fire Safe Stainless Steel Ball Valve

Item Description Material
1 Cap CF8M
2 Bolt SS304
3 Body Gasket Pure Graphite
4 Body CF8M
5 Ball SS316
6 Ball Seat Pure PTFE
7 Stem SS316
Item Description Material
8 Thrust Washer Pure PTFE
9 O-Ring Viton
10 Stem Packing Pure Graphite
11 Packing Ring SS304
12 Belleville Washer SS301
13 Nut Stopper SS304
14 Nut SS304
15 Pnuematic Actuator Anodized Aluminium


Size 15mm to 300mm
Body 316 Stainless Steel
Pressure 20 Bar @ ambient
Temperature -20°C to 180°C
Actuation Double Acting Pnuematic
Fire Safe API607 Approved

  • What is a 2 Way ANSI 150 Flanged Double Acting Pneumatic Stainless Steel Ball Valve?

    A two way ANSI 150 Flanged double acting stainless steel ball valve is constructed of two body pieces and held together by the way of stainless steel bolts which hold these two pieces together. It has a direct mounted anodised aluminium rack and pinion actuator fixed to the valve which conducts its 90 degree turn (open,close). This kind of ball valve design (flanged) makes it easy to remove from the line as you do not need to unscrew it to maintain the valve like you would on a threaded valve. It is also very easy to change the valve seats as you can access them directly by unbolting the two halves of the valve. Our design also has a longer neck to reduce thermal transfer and a direct mounting pad for mounting actuators without the use of a bracket and drive dog. They also have a reinforced teflon (PTFE) seat which is filled with 15% glass filler. This allows higher pressures and temperatures up to 180 degrees Celcius, making it suitable for steam applications (refer to the temperature vs pressure graph). If a higher temperature is required, these seats can be changed out to a 50% stainless steel seat. The actuator has a namur interface and position indicator. The ball valve carries a fire safe certification (API607 Sixth Edition).

  • How does a Two Way Double Acting ANSI 150 Flanged Stainless Steel Ball Valve work?

    The 2 way ANSI 150 flanged double acting stainless steel ball valves works the same as any normal two way ball valve, whereby the ball is rotated 90 degrees within the body of the valve which will either open or close the valve. The ball itself has a hole either end which the media will flow through when it is open. When the valve is closed, these holes are blocked off to the flow effectively isolating the media either side of the valve. The ball is turned by a double acting rack & pinion actuator which is connected to a shaft which in turn is mated to the ball by a female slot. When the actuator is operated by a 5/2 valve (all double acting actuators need a 5/2 valve to operate, the most common we see is a 5/2 direct interfacing namur solenoid valve) the shaft will be rotated effectively turning the ball inside the cavity and switching it to its other state (either open or close). Extras such as limit switch boxes and positioners can also be mounted directly to the actuator.

  • How long will my Two Way ANSI 150 Flanged Double Acting Stainless Steel Ball Valve last?

    Like any valve this depends upon the usage case of your ball valve, its environment, media and how many times it is cycled. For instance if it is on a clean media, in a clean environment and not cycled regularly the life will be decades or more. If it is on a corrosive media and in a dry application with a high cycle rate the life will be much shorter. We conduct regular lab testing and 30,000 cycles is a reasonable life cycle for the ball valve depending upon the application. Repair kits are readily available for valve refurbishment if the application requires. The actuators life will depend upon how clean and dry the supply air is (the air that makes the actuator operate) however we regularly test these to over 800,000 cylces. Install a basic air filter if you are not sure about the quality of your air, we have pneumatic actuators that have been in operation for decades. The most common failure we see is due to dirty wet air being sent to the actuator.

  • How do I install a two way double acting ANSI 150 Flanged Stainless Steel Ball Valve?

    As this is an ANSI 150 flanged 2 way valve it will need to be fitted between two of the same flanges (ANSI 150 standard) in the pipework. Between the mated flanges will need to be a gasket to ensure a positive seal. The type of gasket will depend upon the media and temperature, for instance a water application may use EPDM or NBR whereas a steam application may use graphite or a spiral wound gasket. The bolts should be fitted and then tightened in a diagonal direction to ensure an even fastening force across the face of the flange (for bolt torque refer to the flange standard). The double acting actuator can accommodate a namur solenoid valve which is a very popular configuration (the 5/2 control valve bolts directly onto the actuator with an o-ring face seal on the back of the valve) or just a standalone 5/2 valve. If you are using a stand alone 5/2 valve, the air lines will need to be run from here into the ports on the actuator (remember the longer the run the slower the operation unless you use quick exhaust valves near the actuator).

  • What are typical uses of a two way ANSI 150 Flanged double acting pneumatic stainless steel ball valve?

    These two way ANSI 150 flanged double acting ball valves are used in a very wide application range. They are quite often used in corrosive environments as they are 316 Stainless Steel such as areas where there is a caustic washdown. It also carries a fire safe certification so they are quite often used in areas where this is a requirement.  Other applications include water treatment, steam applications to 10 bar, chemical applications and many more. Been double acting pneumatic they are not used in fail safe applications as if you loose air it will just stay in its current configuration (if you need fail safe choose a spring return option for the actuation).

  • How long will my product take to get to me?

    This depends upon where you are based and the freight method chosen. If the express freight option is selected it is usually next day delivery to metropolitan areas in Australia for under 5kg. If free freight has been selected it will go by road freight which can be anywhere from 1 to 10 days depending upon your location. It usually averages 3 days.

  • What warranty do I get?

    All of our products come standard with a 12 month warranty. The good news is we have very strict quality controls and all valves leave our warehouse tested (full material and testing certificates to API598 are available) and inspected so there are rarely any issues. Also once your valve is in and operating it will most likely continue to do so for a very long time.
