316 SS Exd 5/2 Namur Solenoid Valve - Mono Stable

G1/4" 316 SS Namur 1.5-8 Bar Sol/Spring 24v DC Ex d IECEx

Calculate Shipping

316 SS body 5 way 2 position differential namur solenoid/spring return valve.G1/4" NBR seat, manual override. Aluminum coil enclosure. 24v DC2-8 BAR pressure range, media temp -20°C to 80°C. Cv 1.1Ex d IIC T6 Gb IP66. M20x1.5 connection. -20 to+60deg.C IE

Our 5 way 2 position stainless steel exd approved namur solenoid valve is suitable for hazardous areas where there is a need for a solenoid valve to operate. Available in mono stable (solenoid/spring) and bi stable (solenoid/solenoid) configurations.

Model	Voltage	Function	Port Size	Orrifice	Cv	Media Temp	Media Pressure
ALV610F3-C4-1	240v AC	Solenoid/Spring	1/4"	6mm	1.1	-25°C to 80°C	2 to 8 BAR
ALV610F3-C4-2	110v AC	Solenoid/Spring	1/4"	6mm	1.1	-25°C to 80°C	2 to 8 BAR
ALV610F3-C4-8	24v DC	Solenoid/Spring	1/4"	6mm	1.1	-25°C to 80°C	2 to 8 BAR

(ALV610F3-C4)

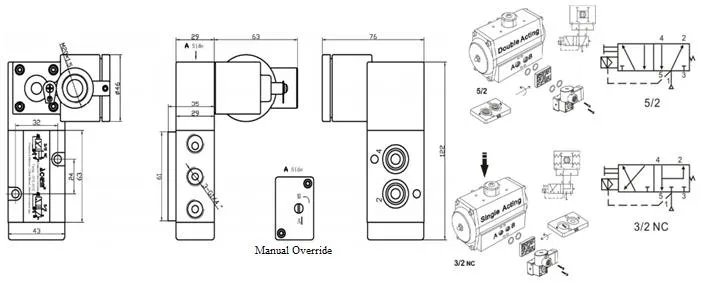

Stainless Steel Exd Namur Solenoid Valve Dimensions

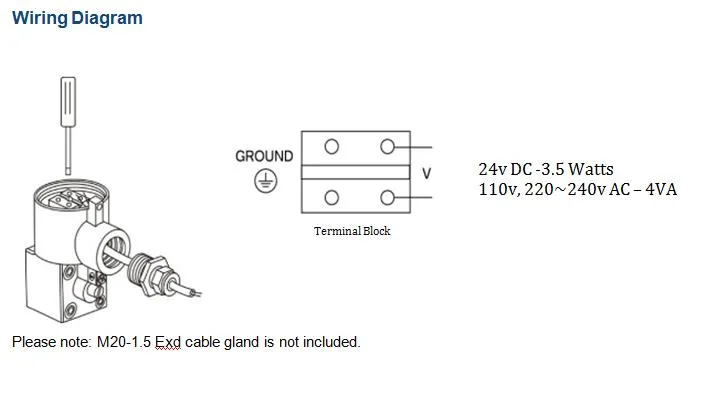

Stainless Steel Namur Solenoid Valve Wiring Diagrame

Size 1/4" BSP Only
Function 5 way 2 position solenoid/spring namur with manual override
Valve Operation Servo Assisted
Body 316 Stainless Steel
Seat NBR
Pressure Range 1.5 to 8 BAR
Media Air

Be The First To Review This Product!

Help other Process Systems users shop smarter by writing reviews for products you have purchased.

Write a product review

Description

Our 5 way 2 position stainless steel exd approved namur solenoid valve is suitable for hazardous areas where there is a need for a solenoid valve to operate. Available in mono stable (solenoid/spring) and bi stable (solenoid/solenoid) configurations.

Model	Voltage	Function	Port Size	Orrifice	Cv	Media Temp	Media Pressure
ALV610F3-C4-1	240v AC	Solenoid/Spring	1/4"	6mm	1.1	-25°C to 80°C	2 to 8 BAR
ALV610F3-C4-2	110v AC	Solenoid/Spring	1/4"	6mm	1.1	-25°C to 80°C	2 to 8 BAR
ALV610F3-C4-8	24v DC	Solenoid/Spring	1/4"	6mm	1.1	-25°C to 80°C	2 to 8 BAR

(ALV610F3-C4)

Dimensions

Construction

Features

Size 1/4" BSP Only
Function 5 way 2 position solenoid/spring namur with manual override
Valve Operation Servo Assisted
Body 316 Stainless Steel
Seat NBR
Pressure Range 1.5 to 8 BAR
Media Air

Reviews

Be The First To Review This Product!

Help other Process Systems users shop smarter by writing reviews for products you have purchased.

Write a product review
