SKU: RK-BLSFA

BLSFA Flanged Ball Valve Repair Kit for ANSI 150 & ANSI 300

From $22.00

Inc GST
In Stock
Make an Enquiry

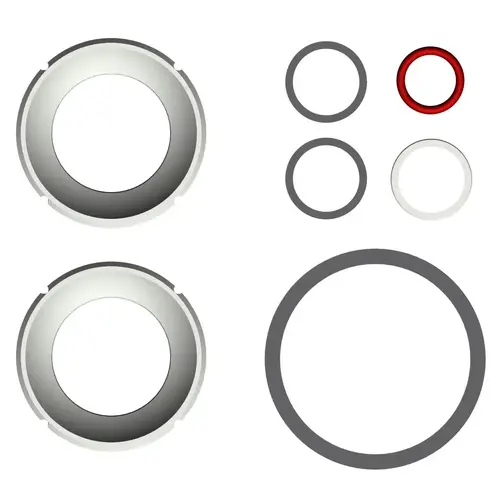

PTFE seats and repair kit for Fire Safe 2 way Flanged Ball Valves. Includes seats, seals and crush washers.

Size (mm) Bolt Tightening Torque for Body and Bonnet (Nm)
15 16
20 16
25 16
32 44
40 44
50 44
65 64
80 74
100 74
125 74
150 74
200 80

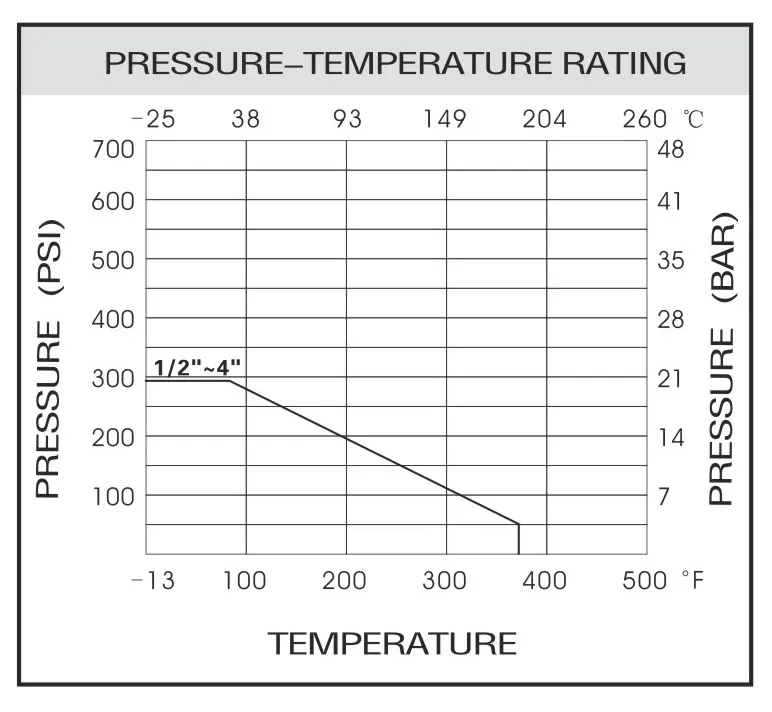

BLSF Pressure vs Temperature

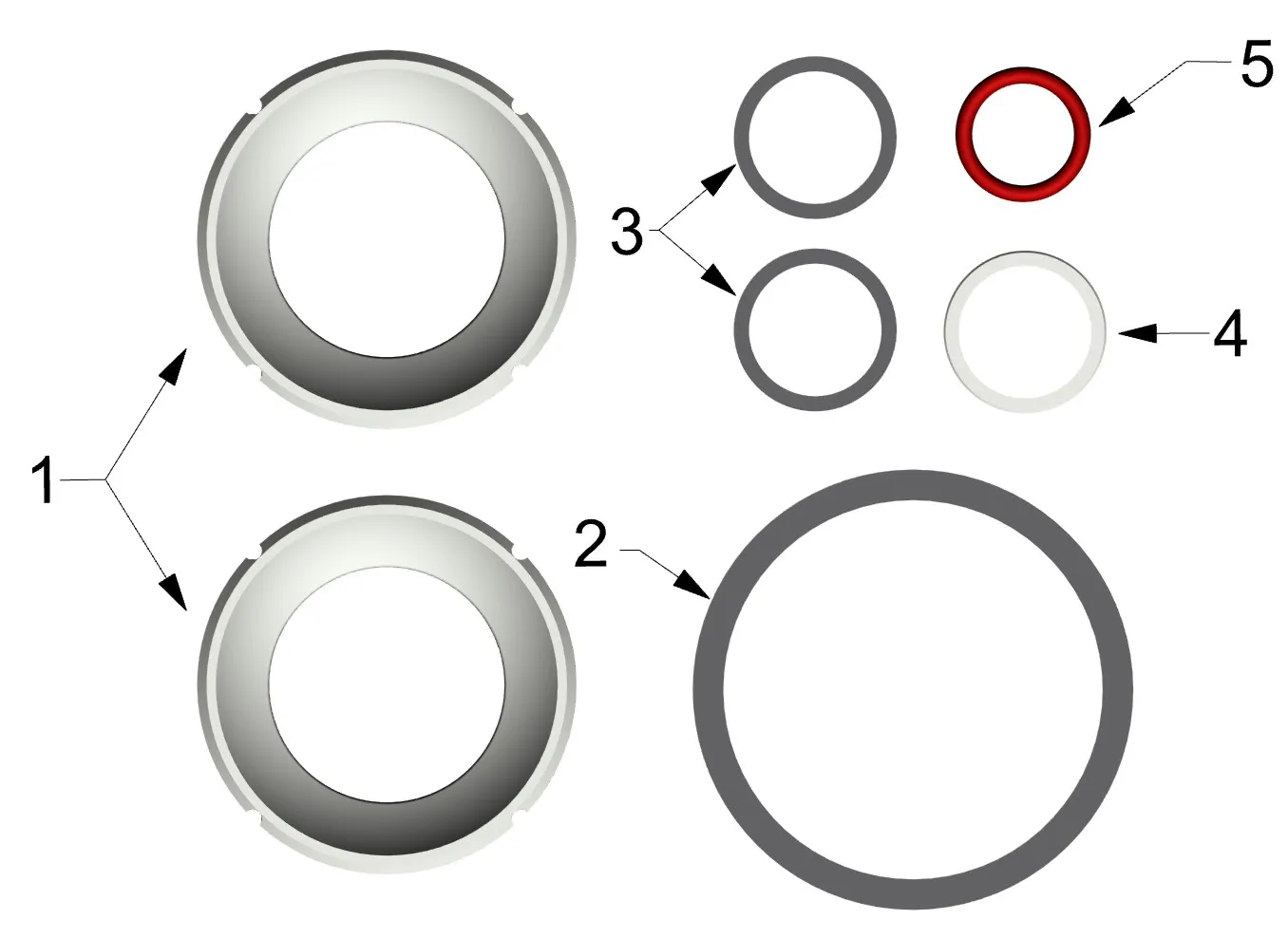

Item Description Material Qty
1 Ball Seat PTFE 2
2 Body Gasket Pure Graphite 1
3 Stem Packing Pure Graphite 1 Set
4 Thrust Washer PTFE 1 Set
5 O-Ring Viton 1

Size 15mm to 200mm
To Suit 316 Stainless Steel 2 way 2 piece Flanged Ball Valves
Pressure 20 BAR @ Ambient
Temperature -20°C to 180°C

DATA SHEET
