Features:
Size 15mm to 300mm
Body 316 Stainless Steel
Seat PTFE
Pressure 150 pound
Temperature -20°C to 180°C
Actuation Lockable Lever or Gear Box

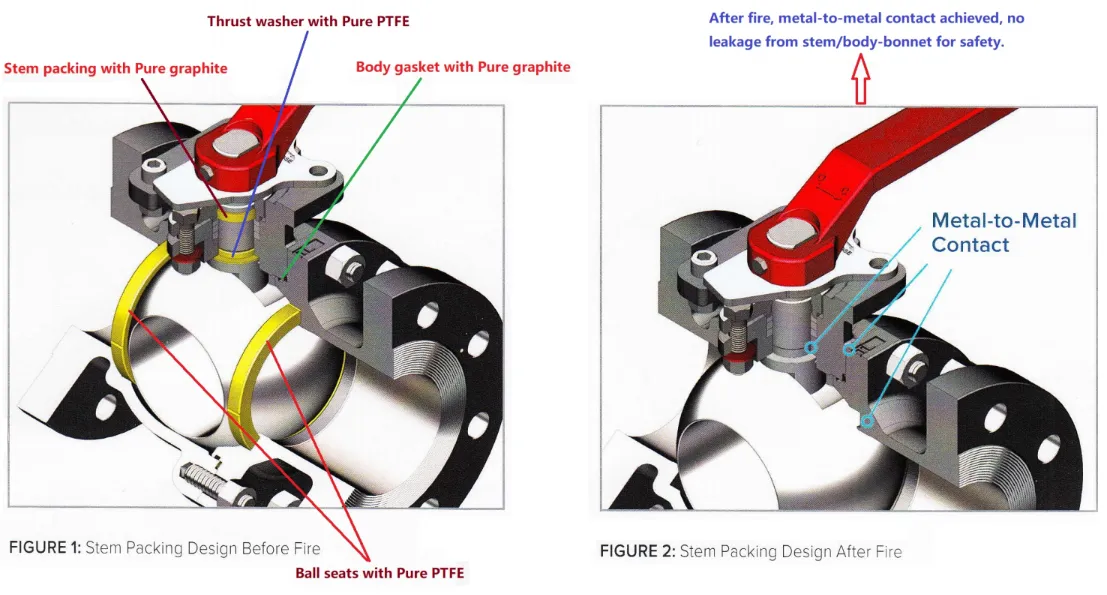

Fire Safe API607 Approved

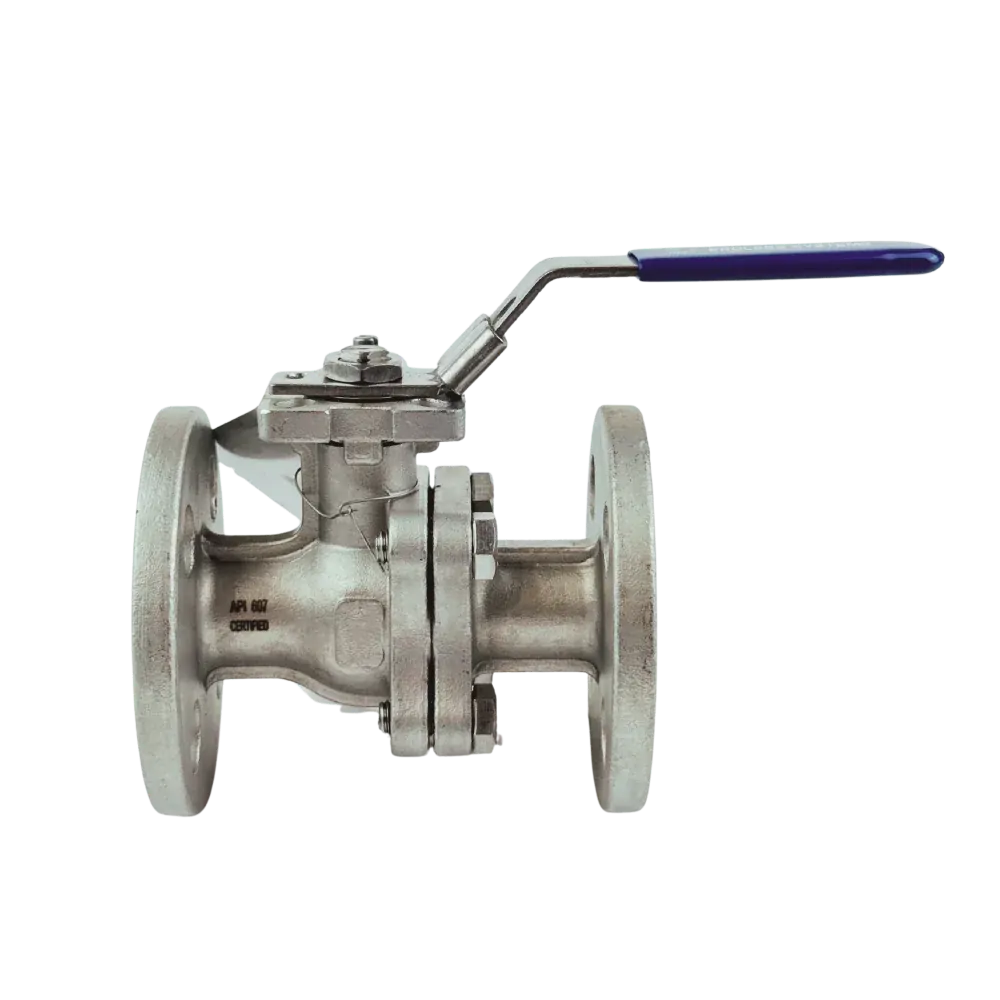

Two piece two way ANSI 150 lb flanged fire safe approved ball valve, lockable lever operation. 316 Stainless Steel body, R-PTFE seats, FKM backing ring, live loaded packing and anti static device. Firesafe Approved API607 Sixth Edition, Cert. No 230679. ISO5211 Mounting Pad allowing direct coupling of actuation. Great for fuel applications, pipelines, water treatment and general industry. If you are using these on steam or other high temperature applications (above 120°C) and do not need the fire safe certification, we recommend going with a 50/50 stainless steel/ptfe seat to extend your valve life.
- Design & Manufacture to ANSI B16.34
- Face to Face comply with ANSI B16.10
- Flange Ends comply with ANSI B16.5
- Inspection & Testing in accordance wtih API598
| Model | Size (mm) | Media Pressure | Media Temperature | Torque (Nm) |
|---|---|---|---|---|
| BLSF4FA-L-RT | 15 | Vacuum (29" Hg) to 20 BAR (10 BAR Steam) | -20°C to 180°C | 5 |
| BLSF5FA-L-RT | 20 | Vacuum (29" Hg)to 20 BAR (10 BAR Steam) | -20°C to 180°C | 8 |
| BLSF6FA-L-RT | 25 | Vacuum (29" Hg) to 20 BAR (10 BAR Steam) | -20°C to 180°C | 10 |
| BLSF7FA-L-RT | 32 | Vacuum (29" Hg) to 20 BAR (10 BAR Steam) | -20°C to 180°C | 14 |
| BLSF8FA-L-RT | 40 | Vacuum (29" Hg) to 20 BAR (10 BAR Steam) | -20°C to 180°C | 18 |
| BLSF9FA-L-RT | 50 | Vacuum (29" Hg) to 20 BAR (10 BAR Steam) | -20°C to 180°C | 25 |
| BLSF10FA-L-RT | 63 | Vacuum (29" Hg) to 20 BAR (10 BAR Steam) | -20°C to 180°C | 48 |
| BLSF11FA-L-RT | 80 | Vacuum (29" Hg) to 20 BAR (10 BAR Steam) | -20°C to 180°C | 75 |
| BLSF12FA-L-RT | 100 | Vacuum (29" Hg) to 20 BAR (10 BAR Steam) | -20°C to 180°C | 150 |
| BLSF13FA-L-RT | 125 | Vacuum (29" Hg) to 20 BAR (10 BAR Steam) | -20°C to 180°C | 200 |
| BLSF14FA-L-RT | 150 | Vacuum (29" Hg) to 20 BAR (10 BAR Steam) | -20°C to 180°C | 300 |
| BLSF15FA-L-RT | 200 | Vacuum (29" Hg) to 20 BAR (10 BAR Steam) | -20°C to 180°C | 400 |
| BLSF16FA-L-RT | 250 | Vacuum (29" Hg) to 20 BAR (10 BAR Steam) | -20°C to 180°C | 1100 |
| BLSF17FA-L-RT | 300 | Vacuum (29" Hg) to 20 BAR (10 BAR Steam) | -20°C to 180°C | 1890 |

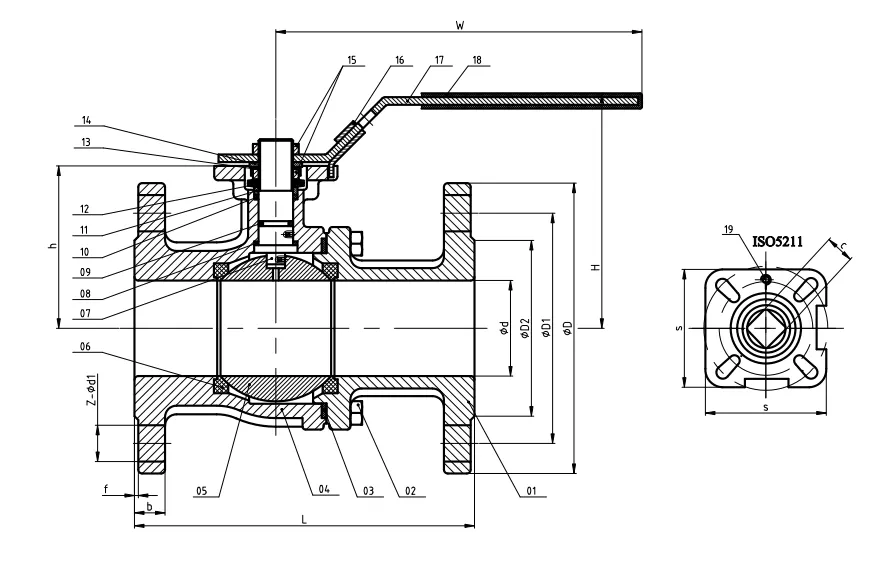

50mm to 100mm
| Size | d | L | D | D1 | D2 | b | f | H | W | C | ISO5211 | Z-Ød1 | h | s | Kgs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 15 | 108 | 89 | 60.5 | 35 | 11 | 2 | 82 | 117 | 9 | F03/F04 | 4-15 | 48 | 42.6 | 1.48 |
| 3/4" | 20 | 117 | 98 | 70 | 43 | 11 | 2 | 87 | 117 | 9 | F03/F04 | 4-15 | 53 | 42.6 | 2.04 |
| 1" | 25 | 127 | 108 | 79.5 | 51 | 12 | 2 | 90 | 164 | 11 | F04/F05 | 4-15 | 58.5 | 50 | 2.86 |
| 1-1/4" | 32 | 140 | 117 | 89 | 64 | 13 | 2 | 100 | 164 | 11 | F04/F05 | 4-15 | 71 | 50 | 3.94 |
| 1-1/2" | 40 | 165 | 127 | 98.5 | 73 | 15 | 2 | 116 | 203 | 14 | F05/F07 | 4-15 | 76.5 | 64.5 | 5.94 |
| 2" | 50 | 178 | 152 | 120.5 | 92 | 16 | 2 | 125 | 203 | 14 | F05/F07 | 4-19 | 85 | 64.5 | 7.61 |
| 2-1/2" | 65 | 190 | 178 | 139.5 | 105 | 18 | 2 | 164 | 255 | 17 | F07/F10 | 4-19 | 110 | 93.6 | 13.2 |
| 3" | 80 | 203 | 190 | 152.5 | 127 | 19 | 2 | 174 | 255 | 17 | F07/F10 | 4-19 | 122.5 | 93.6 | 17.1 |
| 4" | 100 | 229 | 229 | 190.5 | 157 | 24 | 2 | 200 | 302 | 17 | F07/F10 | 8-19 | 145.5 | 93.6 | 29.2 |
| 5" | 125 | 356 | 254 | 216 | 186 | 24 | 2 | 258 | 600 | 22 | F10/F12 | 8-18 | 185 | 114 | 42 |
| 6" | 150 | 394 | 279 | 241.5 | 216 | 26 | 2 | 276 | 600 | 22 | F10/F12 | 8-22 | 202.5 | 114 | 82 |
| 8" | 200 | 457 | 343 | 298.5 | 270 | 29 | 2 | 350 | 800 | 27 | F12/F14 | 8-22 | 257 | 131 | 140 |
50mm to 100mm
| Item | Part | Material | Qty |
|---|---|---|---|
| 1 | Cap | 1.4408 (CF8M) | 1 |
| 2 | Bolt | SS304 | 4(8) |
| 3 | Body Gasket | Pure Graphite | 1 |
| 4 | Body | 1.4408 (CF8M) | 1 |
| 5 | Ball | SS316 | 1 |
| 6 | Ball Seat | R-PTFE (15%) | 2 |
| 7 | Stem | SS316 | 1 |
| 8 | Thrust Washer | Pure PTFE | 1 |
| 9 | O-ring | Viton | 1 |
| 10 | Stem Packing | Pure Graphite | 1 |
| 11 | Packing Ring | SS304 | 1 |
| 12 | Bellevlle Washer | SS301 | 2 |
| 13 | Nut Stopper | SS304 | 1 |
| 14 | Plate Washer | SS304 | 1 |
| 15 | Nut | SS304 | 2 |
| 16 | Lock Device | SS304 | 1 |
| 17 | Handle | SS304 | 1 |
| 18 | Plastic Cover | Plastic | 1 |
| 19 | Stop Pin | SS304 | 1 |

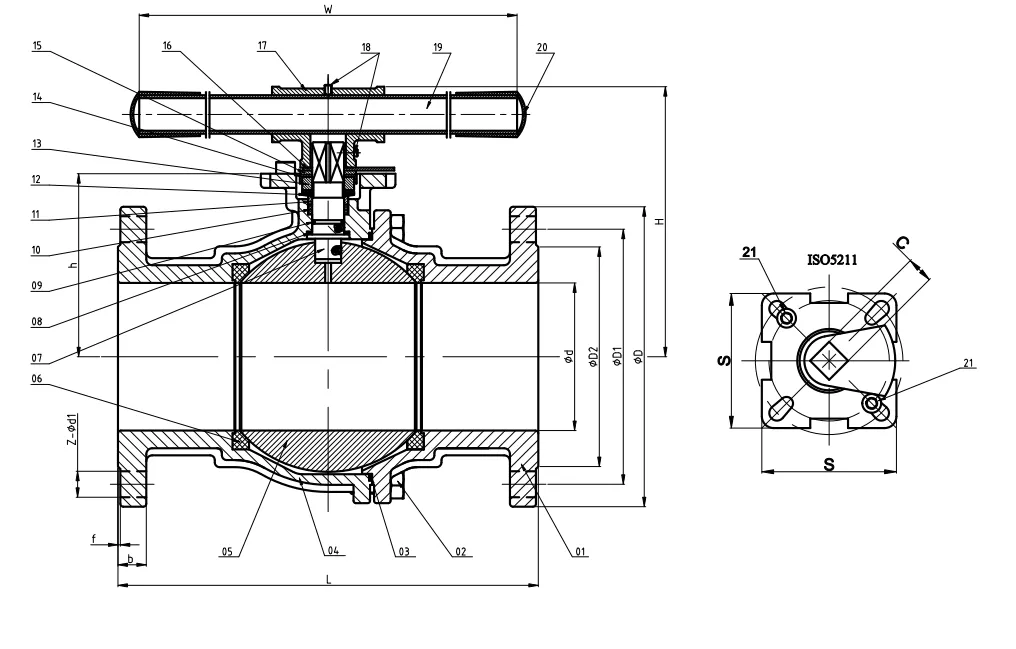

125mm to 200mm
| Item | Part | Material | Qty |
|---|---|---|---|
| 1 | Cap | 1.4408 (CF8M) | 1 |
| 2 | Bolt | SS304 | 8 |
| 3 | Body Gasket | Pure Graphite | 1 |
| 4 | Body | 1.4408 (CF8M) | 1 |
| 5 | Ball | SS316 | 1 |
| 6 | Ball Seat | Pure PTFE | 2 |
| 7 | Stem | SS316 | 1 |
| 8 | Thrust Washer | Pure PTFE | 1 |
| 9 | O-ring | Viton | 1 |
| 10 | Stem Packing | Pure Graphite | 1 |
| 11 | Packing Ring | SS304 | 1 |
| 12 | Bellevlle Washer | SS301 | 2 |
| 13 | Nut | SS304 | 1 |
| 14 | Nut Stopper | SS304 | 1 |
| 15 | Plate Washer | SS304 | 1 |
| 16 | Lock Device | SS304 | 1 |
| 17 | Sleeve | CF8M | 1 |
| 18 | Jackscrew | SS304 | 2 |
| 19 | Handle | Galvanized Pipe | 1 |
| 20 | Plastic Cover | Plastic | 1 |
| 21 | Stop Pin | SS304 | 2 |
.png)
Size 15mm to 300mm
Body 316 Stainless Steel
Seat PTFE
Pressure 150 pound
Temperature -20°C to 180°C
Actuation Lockable Lever or Gear Box
Fire Safe API607 Approved
-
What is a 2 Way ANSI 150 Flanged Stainless Steel Ball Valve?
A two way ANSI 150 flanged stainless steel ball valve is constructed of two separate body pieces and held together by stainless steel bolts connecting both sections against each other. It has an ANSI 150 flange (this is just the flange standard it suits) at either end which is used to connect to the pipework. The valve is fire safe approved and features a direct mounting ISO pad on the top (this is so you can bolt an actuator directly to the valve without the use of a bracket & drive dog) and a square drive. It is operated either by a lockable handle or an IP67 gear box. It has live loaded packings and PTFE seats allowing temperatures up to 180 degrees celsius (refer to the pressure vs temperature graph). If a higher temperature is required these seats can be changed out to a 50% stainless steel seat if required.
-
How does a Two Way ANSI 150 Flanged Stainless Steel Ball Valve work?
The 2 way ANSI 150 flanged ball valve works the same as any normal two way ball valve whereby the ball is rotated 90 degrees within the body of the valve which will either open or close the valve. The ball itself has a hole either end which the media will flow through when it is open. When the valve is closed these holes are blocked off to the flow effectively isolating the media either side of the valve. The ball is turned by a handle or gearbox (or actuator) which is connected to a shaft which in turn is mated to the ball by a female slot. When it is operated by a handle (our handles are lockable) there is a stop pin which only allows you to operate the valve in a 90 degree turn (this will take you from open to close or vice versa). When it is operated by a gear box the gear box will hit its stop on the worm drive which will not let the ball rotate past 90 degrees.
-
How long will my ANSI 150 Flanged Two Way Stainless Steel Ball Valve last?
Like any valve this depends upon the usage case of your ball valve, its environment, media and how many times it is cycled. For instance if it is on a clean media, in a clean environment and not cycled regularly the life will be decades. If it is on a corrosive media and in a dry application with a high cycle rate the life will be much shorter. We conduct regular lab testing and 30,000 cycles is a reasonable life cycle depending upon the application. Being a 2 piece flanged construction it is relatively easy to remove the ball valve from the line and change the seats & seals out if they are worn. These are available as a complete repair kit.
-
How do I install a two way ANSI 150 Stainless Steel Ball Valve?
As this is an ANSI 150 flanged 2 way valve it will need to be fitted between two of the same flanges (ANSI 150 standard) in the pipework. Between the mated flanges will need to be a gasket to ensure a positive seal. The type of gasket will depend upon the media and temperature, for instance a water application may use EPDM or NBR whereas a steam application may use graphite or a spiral wound gasket. The bolts should be fitted and then tightened in a diagonal direction to ensure an even fastening force across the face of the flange (for bolt torque refer to the flange standard).
-
What are typical uses of a two piece ANSI 150 flanged stainless steel ball valve?
These two way ANSI 150 flanged ball valves are used in a wide variety of applications. Being stainless steel they are quite often used in corrosive environments or areas where caustic washdown is present such as abattoirs. Other applications include water treatment, steam applications to 10 bar, chemical applications and many more.
-
How long will my product take to get to me?
This depends upon where you are based and the freight method chosen. If the express freight option is selected it is usually next day delivery to metropolitan areas in Australia for under 5kg. If free freight has been selected it will go by road freight which can be anywhere from 1 to 10 days depending upon your location. It usually averages 3 days.
-
What warranty do I get?
All of our products come standard with a 12 month warranty. The good news is we have very strict quality controls and all valves leave our warehouse tested (full material and testing certificates to API598 are available) and inspected so there are rarely any issues. Also once your valve is in and operating it will most likely continue to do so for a very long time.
