Quick Exhaust Valve

Calculate Shipping

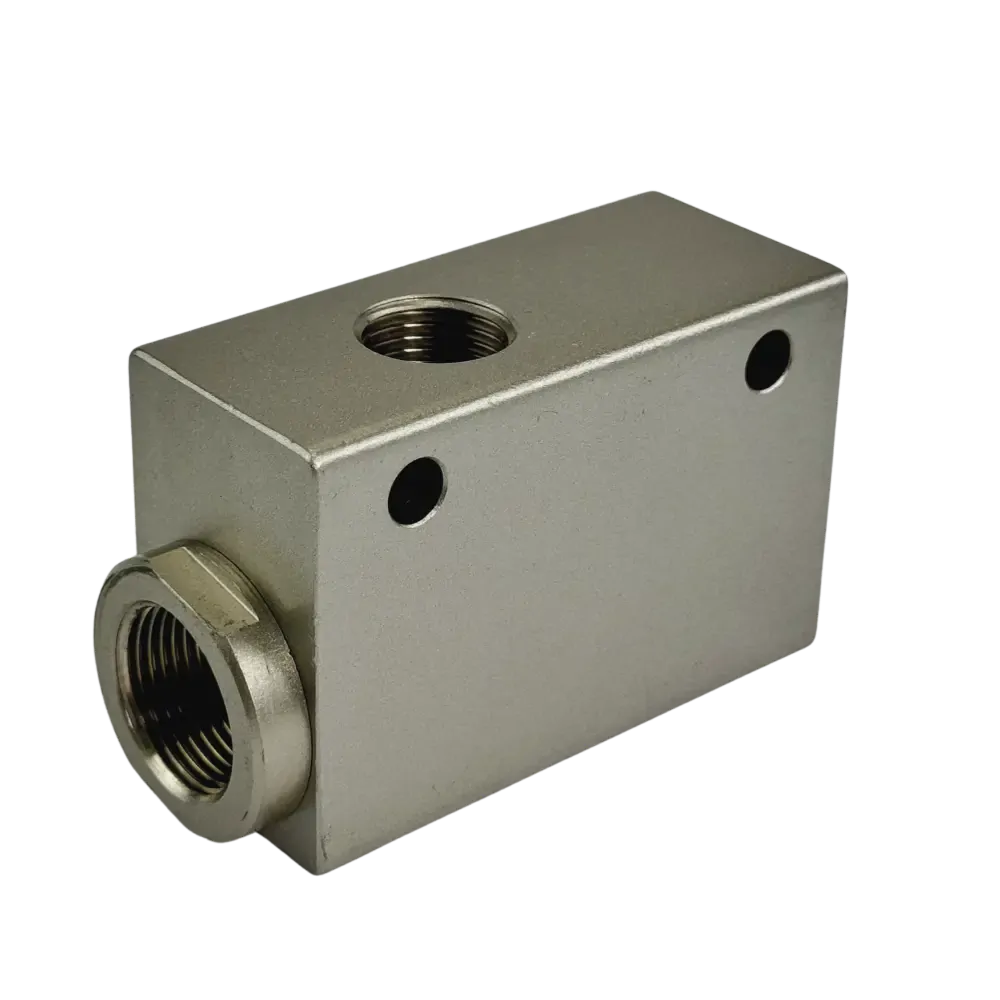

Aluminium quick exhaust valve for air, femaile BSPP ends.G1/8" 6mm nominal diameter.0.5 to 12 BAR pressure range, -5 to 60°C temperature range.

Allows air to be exhausted quickly without the need to go back to the control valve. Great for increasing the speed of pneumatic cylinders and actuators as it dumps the exhaust air directly to atmosphere bypassing the need for it to go back through the control valve. Easy to install and use.

Quick Exhaust Valve Symbol

Specification	AQE-01	AQE-02	AQE-03	AQE-04	AQE-05	AQE-06
Port Size	G1/8”	G1/4”	G3/8”	G1/2”	G3/4”	G1”
Nominal Diameter	6mm	8mm	10mm	15mm	20mm	25mm
Exhaust Port Size	G1/4”	G3/8”	G3/8”	G3/4”	G3/4”	G1”
Pressure Range	0.5 to 12 BAR
Max Inlet Pressure	12 BAR
Medium Temperature	-5 to 60°C
Body	Die Cast Aluminium
Lubrication	Not Required
Applicable Medium	Air

(AQE)

Quick Exhaust Valve Dimensions

Specification	A	B	C	D	E	F	G	H
AQE-01	40	32	27	11	30	Ø4.3	G1/8”	22
AQE-02	55	40	32	16	39	Ø5.5	G1/4”	26
AQE-03	55	40	32	16	39	Ø5.5	G3/8”	26
AQE-04	99	60	50	20	60	Ø8.5	G1/2"	40
AQE-05	99	60	50	20	60	Ø8.5	G3/4”	40
AQE-06	113	75	63	26	80	Ø8.5	G1”	50

All dimensions in mm unless shown otherwise.

Size 1/8" to 1" BSP
Function Quick Exhaust Valve
Body Aluminium
Pressure Range 0.5 to 12 BAR
Media Air

Be The First To Review This Product!

Help other Process Systems users shop smarter by writing reviews for products you have purchased.

Write a product review

Description

Specification	AQE-01	AQE-02	AQE-03	AQE-04	AQE-05	AQE-06
Port Size	G1/8”	G1/4”	G3/8”	G1/2”	G3/4”	G1”
Nominal Diameter	6mm	8mm	10mm	15mm	20mm	25mm
Exhaust Port Size	G1/4”	G3/8”	G3/8”	G3/4”	G3/4”	G1”
Pressure Range	0.5 to 12 BAR
Max Inlet Pressure	12 BAR
Medium Temperature	-5 to 60°C
Body	Die Cast Aluminium
Lubrication	Not Required
Applicable Medium	Air

(AQE)

Videos

Dimensions

Specification	A	B	C	D	E	F	G	H
AQE-01	40	32	27	11	30	Ø4.3	G1/8”	22
AQE-02	55	40	32	16	39	Ø5.5	G1/4”	26
AQE-03	55	40	32	16	39	Ø5.5	G3/8”	26
AQE-04	99	60	50	20	60	Ø8.5	G1/2"	40
AQE-05	99	60	50	20	60	Ø8.5	G3/4”	40
AQE-06	113	75	63	26	80	Ø8.5	G1”	50
