Pneumatic Shuttle Valve

Calculate Shipping

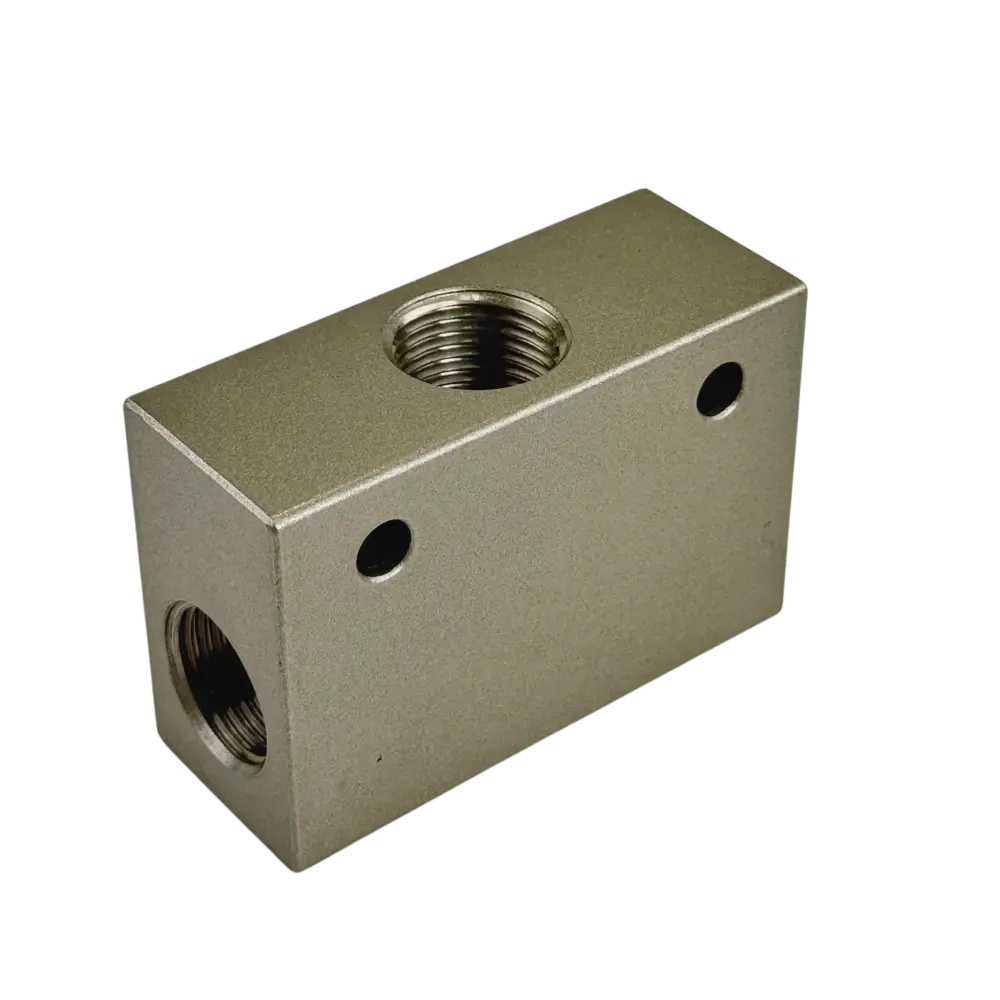

Aluminium shuttle valve for air, BSPP female ports.G1/8", 3mm nominal diameter.0.5 to 12 BAR pressure range, -5 to 60°C temperature range.

Pneumatic shuttle valve which is also sometimes called an 'or valve' (either this inlet 'or' that inlet).Two inlets with one outlet where only one inlet can be active. Available from 1/4" to 1". Great for applications where there is two pressure supplies but only one will be working at a specific time.

Specification	ASV-01	ASV-02	ASV-03	ASV-04	ASV-05	ASV-06
Port Size	G1/8”	G1/4”	G3/8”	G1/2”	G3/4”	G1”
Nominal Diameter	3mm	6mm	8mm	10mm	15mm	20mm
Pressure Range	0.5 to 12 BAR
Max Inlet Pressure	12 BAR
Medium Temperature	-5 to 60°C
Body	Die Cast Aluminium
Lubrication	Not Required
Applicable Medium	Air

(ASV)

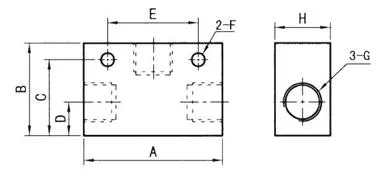

Shuttle Valve Dimensions

Specification	A	B	C	D	E	F	G	H
ASV-01	40	26	21	8	25	Ø4.3	G1/8”	16
ASV-02	52	35	25	11	35	Ø5.5	G1/4”	22
ASV-03	75	50	41	18	48	Ø7	G3/8”	30
ASV-04	75	50	41	18	48	Ø7	G1/2"	30
ASV-05	110	70	58	22	72	Ø7	G3/4”	40
ASV-06	110	70	58	22	72	Ø7	G1”	40

All dimensions in mm unless shown otherwise.

Size 1/4" to 1" BSP
Function Shuttle Valve
Body Aluminium
Pressure Range 0.5 to 12 BAR
Media Air

Be The First To Review This Product!

Help other Process Systems users shop smarter by writing reviews for products you have purchased.

Write a product review

Description

Specification	ASV-01	ASV-02	ASV-03	ASV-04	ASV-05	ASV-06
Port Size	G1/8”	G1/4”	G3/8”	G1/2”	G3/4”	G1”
Nominal Diameter	3mm	6mm	8mm	10mm	15mm	20mm
Pressure Range	0.5 to 12 BAR
Max Inlet Pressure	12 BAR
Medium Temperature	-5 to 60°C
Body	Die Cast Aluminium
Lubrication	Not Required
Applicable Medium	Air

(ASV)

Videos

Dimensions

Specification	A	B	C	D	E	F	G	H
ASV-01	40	26	21	8	25	Ø4.3	G1/8”	16
ASV-02	52	35	25	11	35	Ø5.5	G1/4”	22
ASV-03	75	50	41	18	48	Ø7	G3/8”	30
ASV-04	75	50	41	18	48	Ø7	G1/2"	30
ASV-05	110	70	58	22	72	Ø7	G3/4”	40
ASV-06	110	70	58	22	72	Ø7	G1”	40
