Flanged Ball Check Valve

From $143.00

Inc GST
In Stock
Make an Enquiry

Fusion Bonded Epoxy coated Ductile Iron Ball Check Valve flanged to AS4087 PN16 / AS2129 Table E. Stainless Steel fasteners and NBR coated steel ball. Self Cleaning check valve ideal for applications where debris is present such as pump stations and sewerage which prevents other check valves been used. Minimum back pressure of 0.3 to 0.5 BAR (depending upon size) is needed for a complete seal. Full bore with low pressure drop across the valve. Silent operation with a removable bonnet for cleaing or chainging out the ball without dissassembly of the pipline. Can be installed either on a horizontal or vertical access.

Model DN (mm) Media Pressure Media Temperature
BCV-050 50 0 to 16 BAR 0 to 80°C
BCV-065 65 0 to 16 BAR 0 to 80°C
BCV-080 80 0 to 16 BAR 0 to 80°C
BCV-100 100 0 to 16 BAR 0 to 80°C
BCV-125 125 0 to 16 BAR 0 to 80°C
BCV-150 150 0 to 16 BAR 0 to 80°C
BCV-200 200 0 to 16 BAR 0 to 80°C
BCV-250 250 0 to 16 BAR 0 to 80°C
BCV-300 300 0 to 16 BAR 0 to 80°C

Flanged Ball Check Valve Installation

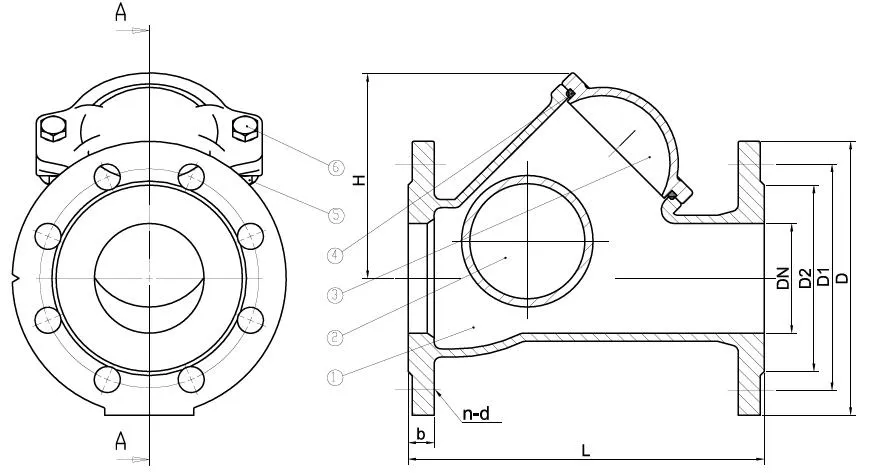

Flanged Ball Check Valve Dimensions



Model DN L D D1 D2 n-d b H
BCV-050 50 200 165 114 102 4-18 19 100
BCV-065 65 240 185 127 122 4-18 19 125
BCV-080 80 260 200 146 138 4-18 19 136
BCV-100 100 300 220 178 158 8-18 19 185
BCV-125 125 350 250 210 188 8-18 19 196
BCV-150 150 400 285 235 212 8-18 19 265
BCV-200 200 500 340 292 268 8-18 20 340
BCV-250 250 600 405 356 320 12-22 22 420
BCV-300 300 700 460 406 378 12-22 24.5 480

All dimensions in mm unless shown otherwise.

Flanged Ball Check Valve Construction

Number Item Material
1 Body DI GGG50
2 Ball Steel + NBR
3 Bonnet DI GGG50
4 Bonnet Gasket NBR
5 Bolt 316SS
6 Nut 304SS

Size 50mm to 300mm
Flange AS4087 PN16 / AS2129 Table E
Body FBE Coated Ductile Iron
Ball NBR Coated
Pressure Range 0 to 16 BAR
Temperature 0 to 80°C
