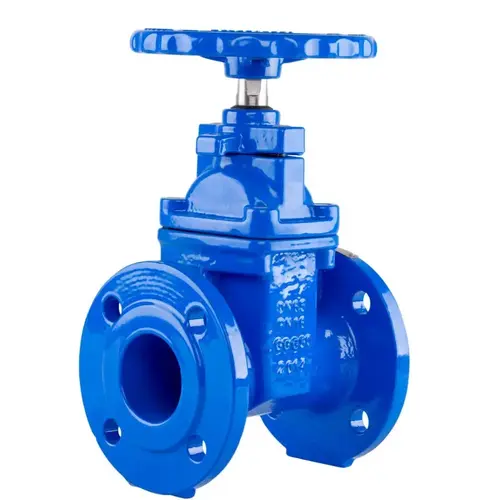

Resilient Seated Ductile Iron Gate Valve

From $170.50

Inc GST
In Stock
Make an Enquiry

Resilient seated ductile iron gate valve also commonly known as a sluice valve. The gate valve is manually operated by a non rising stem handwheel operation (clockwise to close) made in accordance with AS2638.2. AS4087 PN16 flanged (compatable with table D, fits Table E in some sizes, check dimensions table for comatibility). Great for use in waste water and water treatment industries. All Bolt holes are silicone filled to avoid water pooling and corrosion. Gate valve features oversized shaft, double shaft seals and twin lip seals to prevent ingress and egress of media and foreign material. Key Caps available upon request.

Model DN (mm) Turns for full cycle Pressure Range Media Temp Weight (kg)
GVC-50 50 12 0 to 16 BAR 0 to 80°C 9
GVC-65 65 12 0 to 16 BAR 0 to 80°C 12
GVC-80 80 19 0 to 16 BAR 0 to 80°C 14
GVC-100 100 23 0 to 16 BAR 0 to 80°C 22
GVC-125 125 28 0 to 16 BAR 0 to 80°C 28
GVC-150 150 32 0 to 16 BAR 0 to 80°C 33
GVC-200 200 35 0 to 16 BAR 0 to 80°C 51
GVC-250 250 44 0 to 16 BAR 0 to 80°C 101
GVC-300 300 53 0 to 16 BAR 0 to 80°C 148
GVC-350 350 35 0 to 16 BAR 0 to 80°C 206
GVC-400 400 39 0 to 16 BAR 0 to 80°C 302
GVC-450 450 41 0 to 16 BAR 0 to 80°C 359
GVC-500 500 47 0 to 16 BAR 0 to 80°C 439
GVC-600 600 50 0 to 16 BAR 0 to 80°C 600

Cast Iron Resilient Seated Gate Valve

DN L D D1 D2 b f n-d H W Table E Flange
50 178 150 114 90 18 3 4-18 270 180 Yes
65 190 165 127 103 18 3 4-18 280 180 Yes
80 203 185 146 122 18 3 4-18 290 200 Yes
100 229 215 178 154 20 3 4-18 315 200 Number of Holes Different
125 254 255 210 187 21 3  8-18 410 260 Yes
150 267 280 235 211 23 3 8-18 410 280 Bolt Size Different
200 292 335 292 268 23 3 8-18 515 320 Bolt Size Different
225 330 405 324 300 24 3 8-18 560 320 N/A
250 330 405 356 328 24 3 8-22 605 320 Number of Holes Different
300 356 455 406 378 30 4 12-22 695 450 Bolt Size Different
350 381 525 470 438 33 4 12-26 790 450 Bolt Size Different
375 406 580 795 463 33 4 12-26 880 450 N/A
400 406 580 521 489 33 4 12-26 970 560 Yes
450 432 640 584 552 33 4 12-26 1045 560 Number of Holes Different
500 457 705 641 609 35 4 16-26 1120 800 Bolt Size Different
600 508 825 756 720 42 5 16-30 1320 800 Bolt Size Different

All dimensions in mm unless shown otherwise.

Cast Iron Resilient Seated Gate Valve

Number Part Material
1 Body AS 1831 500-7
2 Wedge AS 1831 500-7 + EPDM
3 Stem SS431
4 Stem Nut Bronze C83600
5 Bonnet Gasket EPDM
6 Bolt SS316
7 Bonnet Gasket AS 1831 500-7
8 Up Sealing NBR
9 Washer Nylon
10 Bushing Nut Bronze C83600
11 O-Ring NBR
12 O-Ring NBR
13 Dust Guard NBR
14 Handwheel AS 1831 500-7

Size 50mm to 600mm
Body Jotun Powder Coated Ductile Iron
Seat EPDM
Pressure Range 0 to 16 BAR
Operation Handwheel non rising stem

  • What is a Resilient Seated Ductile Iron Gate Valve?

    An Resilient Seated Ductile Iron Gate Valve is a manual linear isolation valve designed to fully open or fully close the flow of media in a pipeline. The valve body is manufactured from cast iron, and the gate is fully encapsulated with a resilient elastomer, providing a tight shut-off when the valve is closed. The valve features AS 4087 PN16 flanged connections, making it compatible with Table D flanges and suitable for installation on Table E drilling patterns in some sizes. This makes the valve ideal for Australian water and infrastructure applications where these flange standards are commonly used. Resilient seated gate valves are preferred over metal-seated gate valves where a bubble-tight seal is required, particularly in water and wastewater systems.

  • How does a Resilient Seated Ductile Iron Gate Valve work?

    This gate valve works by raising and lowering a wedge-shaped gate inside the valve body. Turning the handwheel rotates the stem, which lifts the gate to allow flow or lowers it to block the flow. When the valve is fully open, the gate is completely withdrawn from the flow path, creating a full bore opening with minimal pressure loss. When closed, the resilient elastomer seat compresses against the valve body, providing a tight seal and preventing leakage. Because the sealing surface is resilient, these valves offer excellent shut-off performance even at lower pressures.

  • How long will my Resilient Seated Ductile Iron Gate Valve last?

    The service life of a resilient seated gate valve depends on the media, operating conditions, environment and how often the valve is cycled. These valves are commonly used in clean or mildly contaminated water systems and, when operated within their design limits, can provide many years of reliable service. The cast iron body provides mechanical strength, while the resilient seat protects the sealing surfaces from wear, making this valve well suited to civil, municipal and industrial water applications.

  • How do I install a Resilient Seated Ductile Iron Gate Valve?

    Before installation, ensure the pipeline is fully depressurised and drained. This valve has AS 4087 PN16 flanges, so it should be installed between matching flanges. Install a suitable flange gasket between the mating flange faces, insert the bolts and tighten them in a diagonal sequence to ensure even compression and correct sealing. Once installed, slowly bring the system up to operating pressure and inspect all flange connections for leaks. The valve should be installed in a location that allows easy access to the handwheel for operation.

  • What are typical uses of a Resilient Seated Ductile Iron Gate Valve?

    These resilient seated cast iron gate valves are widely used in applications where tight shut-off and reliable isolation are required. Typical applications includes potable and non-potable water supply systems, wastewater and sewage pipelines, irrigation and agricultural networks, stormwater systems and fire service and civil infrastructure applications.

  • How long will my product take to get to me?

    This depends upon where you are based and the freight method chosen. If the express freight option is selected it is usually next day delivery to metropolitan areas in Australia for under 5kg. If free freight has been selected it will go by road freight which can be anywhere from 1 to 10 days depending upon your location. It usually averages 3 days.

  • What warranty do I get?

    All of our products come standard with a 12 month warranty. The good news is we have very strict quality controls and all valves leave our warehouse tested (full material and testing certificates to API598 are available) and inspected so there are rarely any issues. Also once your valve is in and operating it will most likely continue to do so for a very long time.

DATA SHEET

Others Also Bought

GVC

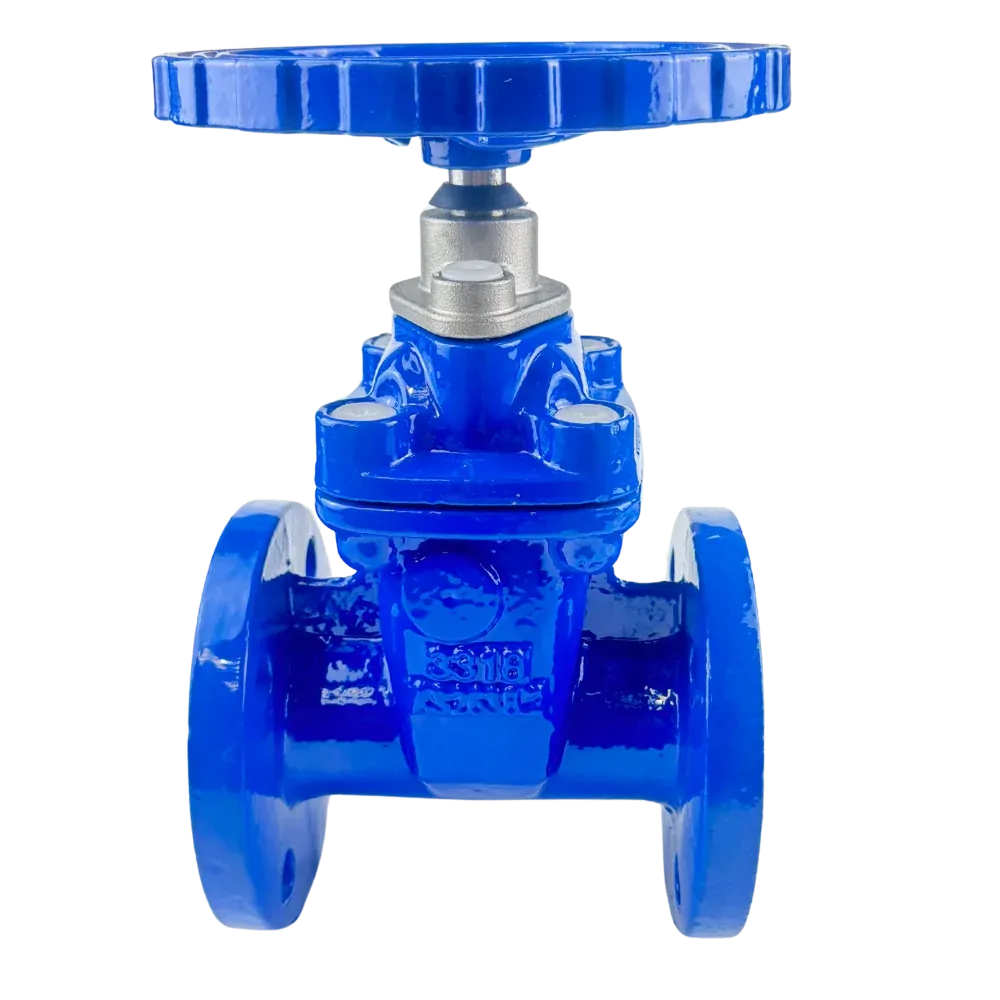

Resilient Seated Ductile Iron Gate Valve

Features:

Size 50mm to 600mm
Body Jotun Powder Coated Ductile Iron
Seat EPDM
Pressure Range 0 to 16 BAR
Operation Handwheel non rising stem

Description:

Resilient seated ductile iron gate valve also commonly known as a sluice valve. The gate valve is manually operated by a non rising stem handwheel operation (clockwise to close) made in accordance with AS2638.2. AS4087 PN16 flanged (compatable with table D, fits Table E in some sizes, check dimensions table for comatibility). Great for use in waste water and water treatment industries. All Bolt holes are silicone filled to avoid water pooling and corrosion. Gate valve features oversized shaft, double shaft seals and twin lip seals to prevent ingress and egress of media and foreign material. Key Caps available upon request.

Model DN (mm) Turns for full cycle Pressure Range Media Temp Weight (kg)
GVC-50 50 12 0 to 16 BAR 0 to 80°C 9
GVC-65 65 12 0 to 16 BAR 0 to 80°C 12
GVC-80 80 19 0 to 16 BAR 0 to 80°C 14
GVC-100 100 23 0 to 16 BAR 0 to 80°C 22
GVC-125 125 28 0 to 16 BAR 0 to 80°C 28
GVC-150 150 32 0 to 16 BAR 0 to 80°C 33
GVC-200 200 35 0 to 16 BAR 0 to 80°C 51
GVC-250 250 44 0 to 16 BAR 0 to 80°C 101
GVC-300 300 53 0 to 16 BAR 0 to 80°C 148
GVC-350 350 35 0 to 16 BAR 0 to 80°C 206
GVC-400 400 39 0 to 16 BAR 0 to 80°C 302
GVC-450 450 41 0 to 16 BAR 0 to 80°C 359
GVC-500 500 47 0 to 16 BAR 0 to 80°C 439
GVC-600 600 50 0 to 16 BAR 0 to 80°C 600
.

Resilient Seated Ductile Iron Gate Valve

GVC

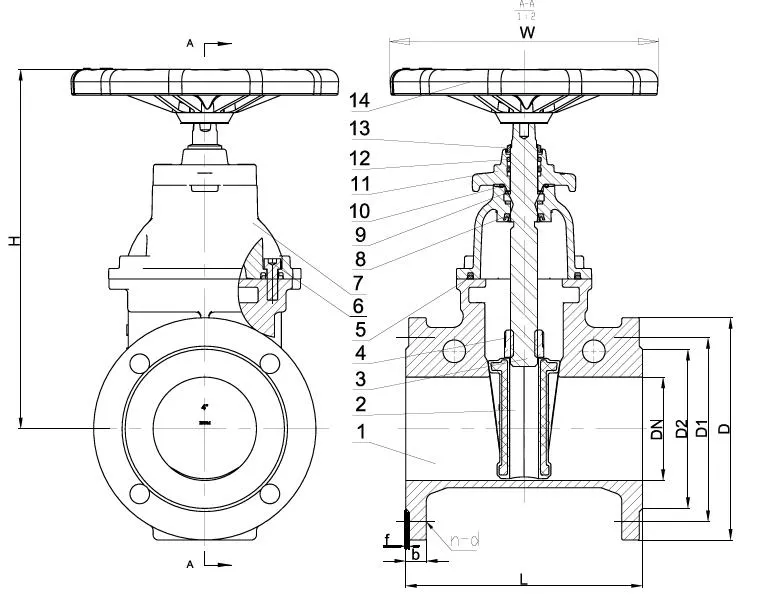

Dimensions:

Cast Iron Resilient Seated Gate Valve

DN L D D1 D2 b f n-d H W Table E Flange
50 178 150 114 90 18 3 4-18 270 180 Yes
65 190 165 127 103 18 3 4-18 280 180 Yes
80 203 185 146 122 18 3 4-18 290 200 Yes
100 229 215 178 154 20 3 4-18 315 200 Number of Holes Different
125 254 255 210 187 21 3  8-18 410 260 Yes
150 267 280 235 211 23 3 8-18 410 280 Bolt Size Different
200 292 335 292 268 23 3 8-18 515 320 Bolt Size Different
225 330 405 324 300 24 3 8-18 560 320 N/A
250 330 405 356 328 24 3 8-22 605 320 Number of Holes Different
300 356 455 406 378 30 4 12-22 695 450 Bolt Size Different
350 381 525 470 438 33 4 12-26 790 450 Bolt Size Different
375 406 580 795 463 33 4 12-26 880 450 N/A
400 406 580 521 489 33 4 12-26 970 560 Yes
450 432 640 584 552 33 4 12-26 1045 560 Number of Holes Different
500 457 705 641 609 35 4 16-26 1120 800 Bolt Size Different
600 508 825 756 720 42 5 16-30 1320 800 Bolt Size Different

All dimensions in mm unless shown otherwise.

.

Resilient Seated Ductile Iron Gate Valve

GVC

Construction:

Cast Iron Resilient Seated Gate Valve

Number Part Material
1 Body AS 1831 500-7
2 Wedge AS 1831 500-7 + EPDM
3 Stem SS431
4 Stem Nut Bronze C83600
5 Bonnet Gasket EPDM
6 Bolt SS316
7 Bonnet Gasket AS 1831 500-7
8 Up Sealing NBR
9 Washer Nylon
10 Bushing Nut Bronze C83600
11 O-Ring NBR
12 O-Ring NBR
13 Dust Guard NBR
14 Handwheel AS 1831 500-7

WARNING
