SKU: BLPFDA

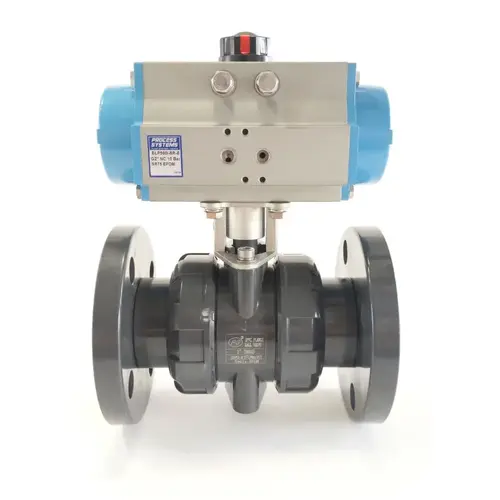

Flanged UV Stabalised PVC Double Acting Pneumatic Ball Valve

From $214.50

Inc GST
In Stock
Make an Enquiry

2 way Flanged ANSI 150 UV stabilised PVC ball valve with double acting pneumatic actuator. Comes with PTFE (Teflon) seats and our unique double stem seal system (standard in EPDM but also available in Viton). Great for corrosive or chemical media where traditional material such as brass and stainless steel are not suitable. Anodised aluminium actuator with visual indicator. Commonly used in the aquaculture industry (sea water), chemical dosing, water treatment and pool filtration.

Model Size (BSP) Orifice Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BLP6F-DA-E 1 25 DA50 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP7F-DA-E 1 ¼ 32 DA63 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP8F-DA-E 1 ½ 40 DA63 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP9F-DA-E 2 50 DA63 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP10F-DA-E 2 ½ 65 DA75 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP11F-DA-E 3 80 DA75 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP12F-DA-E 4 100 DA75 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"

*Change the 'E' to an 'V' for FKM

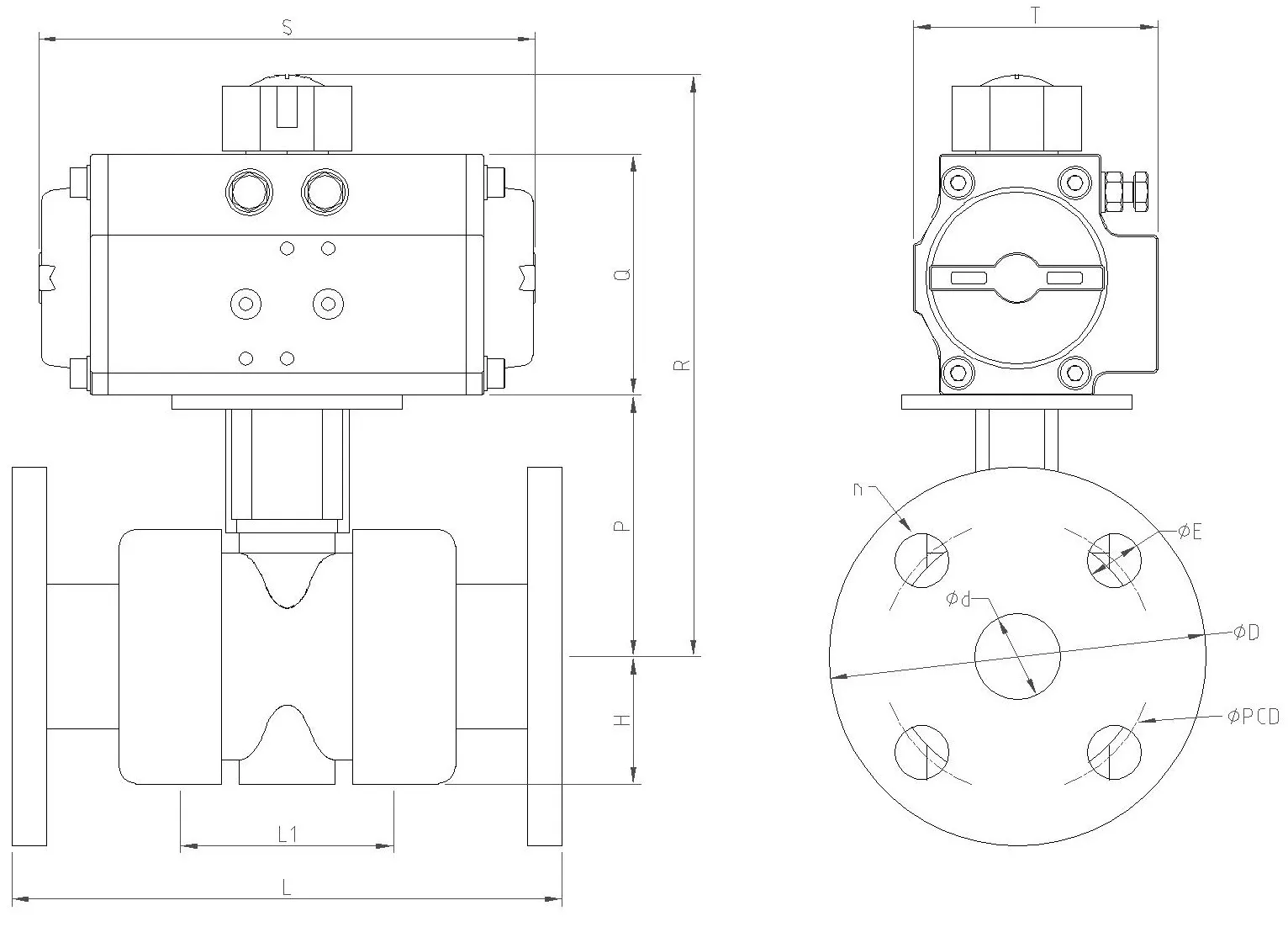

Model Size Actuator ⌀d ⌀PCD ⌀D L L1 H n ⌀E Q S T P R
BLP4F-DA-E 1/2 DA50 15 60.5 95 134 52 27.5 4 15 70 138 71 61.5 151.5
BLP5F-DA-E 3/4 DA50 20 70 105 144 54 32 4 15 70 138 71 72.5 162.5
BLP6F-DA-E 1 DA50 25 79.5 125 160 62 37.25 4 19 70 138 71 77.5 167.5
BLP7F-DA-E 1-1/4 DA63 32 89 140 178 70 42.75 4 19 80 162 80.5 84.5 185.5
BLP8F-DA-E 1-1/2 DA63 40 98.5 150 195 79.5 50 4 19 80 162 80.5 92 193
BLP9F-DA-E 2 DA63 50 120.7 165 215 85 60 4 19 80 162 80.5 107 208
BLP10F-DA-E 2-1/2 DA75 63 139.7 182 320 133 76.5 4 19 97 208 94.5 122 239
BLP11F-DA-E 3 DA75 75 152 200 350 146 86 8 19 97 208 94.5 132 249
BLP12F-DA-E 4 DA75 90 190.5 228 395 160 107 8 19 97 208 94.5 180 297

All dimensions are in mm unless shown otherwise

Size 25mm to 100mm ANSI 150 Flanged
Body UV stabalised PVC
Seat PTFE
Pressure 10 BAR
Temperature Ambient
Actuation Double Acting Pneumatic

  • What is a 2 Way ANSI 150 Flanged Double Acting Pneumatic PVC Ball Valve?

    A two way ANSI 150 Flanged double acting UPCV ball valve is constructed of UV Stabalised PVC. It has a mounted anodised aluminium double acting (air open, air close) rack and pinion actuator fixed to the valve by an aluminium bracket which conducts its 90 degree turn (open,close). This kind of ball valve design (flanged) makes it easy to remove from the line as you do not need to unscrew it to maintain the valve like you would on a threaded valve. They have a teflon (PTFE) seat with either EPDM or FKM seals. The actuator has a namur interface and position indicator.

  • How does a Two Way Double Acting ANSI 150 Flanged UPVC Ball Valve work?

    The 2 way ANSI 150 flanged double acting UV Stabalised PVC ball valves works the same as any normal two way ball valve, whereby the ball is rotated 90 degrees within the body of the valve which will either open or close the valve. The ball itself has a hole at either end which the media will flow through when it is open. When the valve is closed, these holes are blocked off to the flow effectively isolating the media either side of the valve. The ball is turned by a double acting rack & pinion actuator which is connected to a shaft which in turn is mated to the ball by a female slot. When the actuator is operated by a 5/2 valve (all double acting actuators need a 5/2 valve to operate, the most common we see is a 5/2 direct interfacing namur solenoid valve) the shaft will be rotated effectively turning the ball inside the cavity and switching it to its other state (either open or close). Extras such as limit switch boxes and positioners can also be mounted directly to the actuator.

  • How long will my UV Stabalised Flanged Double Acting PVC Ball Valve last?

    Like any valve this depends upon the usage case of your ball valve, its environment, media and how many times it is cycled. For instance if it is on a clean media, in a clean environment and not cycled regularly the life will be decades or more. If it is on a corrosive media and in a dry application with a high cycle rate the life will be much shorter. Repair kits are readily available for valve refurbishment if the application requires. The actuators life will depend upon how clean and dry the supply air is (the air that makes the actuator operate) however we regularly test these to over 800,000 cycles. Install a basic air filter if you are not sure about the quality of your air, we have pneumatic actuators that have been in operation for decades. The most common failure we see is due to dirty wet air being sent to the actuator.

  • How do I install a Double Acting Flanged PVC Ball Valve?

    As this is an ANSI 150 flanged 2 way valve it will need to be fitted between two of the same flanges (ANSI 150 standard) in the pipework. Between the mated flanges will need to be a gasket to ensure a positive seal. The type of gasket will depend upon the media and temperature, for instance a water application may use EPDM. The bolts should be fitted and then tightened in a diagonal direction to ensure an even fastening force across the face of the flange (for bolt torque refer to the flange standard). The double acting actuator can accommodate a namur solenoid valve which is a very popular configuration (the 5/2 control valve bolts directly onto the actuator with an o-ring face seal on the back of the valve) or just a standalone 5/2 valve. If you are using a stand alone 5/2 valve, the air lines will need to be run from here into the ports on the actuator (remember the longer the run the slower the operation unless you use quick exhaust valves near the actuator).

  • What are typical uses of a two way ANSI 150 Flanged Double Acting Pneumatic PVC ball valve?

    These flanged double acting PVC ball valves are mainly used in water treatment or corrosive media and environment such as salt water. Being double acting pneumatic they are not used in fail safe applications as if you lose air it will just stay in its current configuration (if you need fail safe choose a spring return option for the actuation).

  • How long will my product take to get to me?

    This depends upon where you are based and the freight method chosen. If the express freight option is selected it is usually next day delivery to metropolitan areas in Australia for under 5kg. If free freight has been selected it will go by road freight which can be anywhere from 1 to 10 days depending upon your location. It usually averages 3 days.

  • What warranty do I get?

    All of our products come standard with a 12 month warranty. The good news is we have very strict quality controls and all valves leave our warehouse tested (full material and testing certificates to API598 are available) and inspected so there are rarely any issues. Also once your valve is in and operating it will most likely continue to do so for a very long time.

Others Also Bought

BLPFDA

Flanged UV Stabalised PVC Double Acting Pneumatic Ball Valve

Features:

Size 25mm to 100mm ANSI 150 Flanged
Body UV stabalised PVC
Seat PTFE
Pressure 10 BAR
Temperature Ambient
Actuation Double Acting Pneumatic

Description:

2 way Flanged ANSI 150 UV stabilised PVC ball valve with double acting pneumatic actuator. Comes with PTFE (Teflon) seats and our unique double stem seal system (standard in EPDM but also available in Viton). Great for corrosive or chemical media where traditional material such as brass and stainless steel are not suitable. Anodised aluminium actuator with visual indicator. Commonly used in the aquaculture industry (sea water), chemical dosing, water treatment and pool filtration.

Model Size (BSP) Orifice Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BLP6F-DA-E 1 25 DA50 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP7F-DA-E 1 ¼ 32 DA63 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP8F-DA-E 1 ½ 40 DA63 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP9F-DA-E 2 50 DA63 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP10F-DA-E 2 ½ 65 DA75 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP11F-DA-E 3 80 DA75 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP12F-DA-E 4 100 DA75 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"

*Change the 'E' to an 'V' for FKM

.

Flanged UV Stabalised PVC Double Acting Pneumatic Ball Valve

BLPFDA

Dimensions:

Model Size Actuator ⌀d ⌀PCD ⌀D L L1 H n ⌀E Q S T P R
BLP4F-DA-E 1/2 DA50 15 60.5 95 134 52 27.5 4 15 70 138 71 61.5 151.5
BLP5F-DA-E 3/4 DA50 20 70 105 144 54 32 4 15 70 138 71 72.5 162.5
BLP6F-DA-E 1 DA50 25 79.5 125 160 62 37.25 4 19 70 138 71 77.5 167.5
BLP7F-DA-E 1-1/4 DA63 32 89 140 178 70 42.75 4 19 80 162 80.5 84.5 185.5
BLP8F-DA-E 1-1/2 DA63 40 98.5 150 195 79.5 50 4 19 80 162 80.5 92 193
BLP9F-DA-E 2 DA63 50 120.7 165 215 85 60 4 19 80 162 80.5 107 208
BLP10F-DA-E 2-1/2 DA75 63 139.7 182 320 133 76.5 4 19 97 208 94.5 122 239
BLP11F-DA-E 3 DA75 75 152 200 350 146 86 8 19 97 208 94.5 132 249
BLP12F-DA-E 4 DA75 90 190.5 228 395 160 107 8 19 97 208 94.5 180 297

All dimensions are in mm unless shown otherwise
