Features:
Size 1/2" to 4" Butt Weld
Body 316 Stainless Steel 3 piece
Seat Reinforced PTFE
Pressure 63 BAR
Temperature -20°C to 180°C
Actuation Spring Return Pneumatic

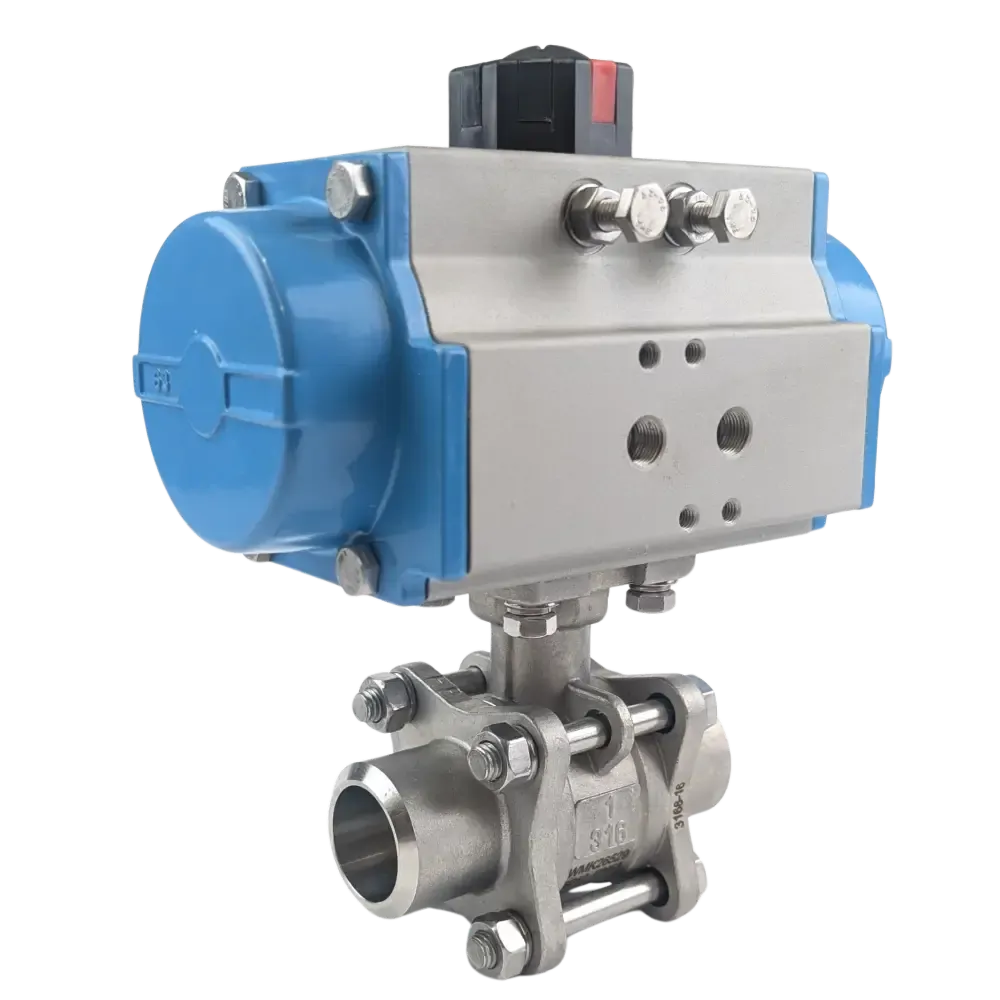

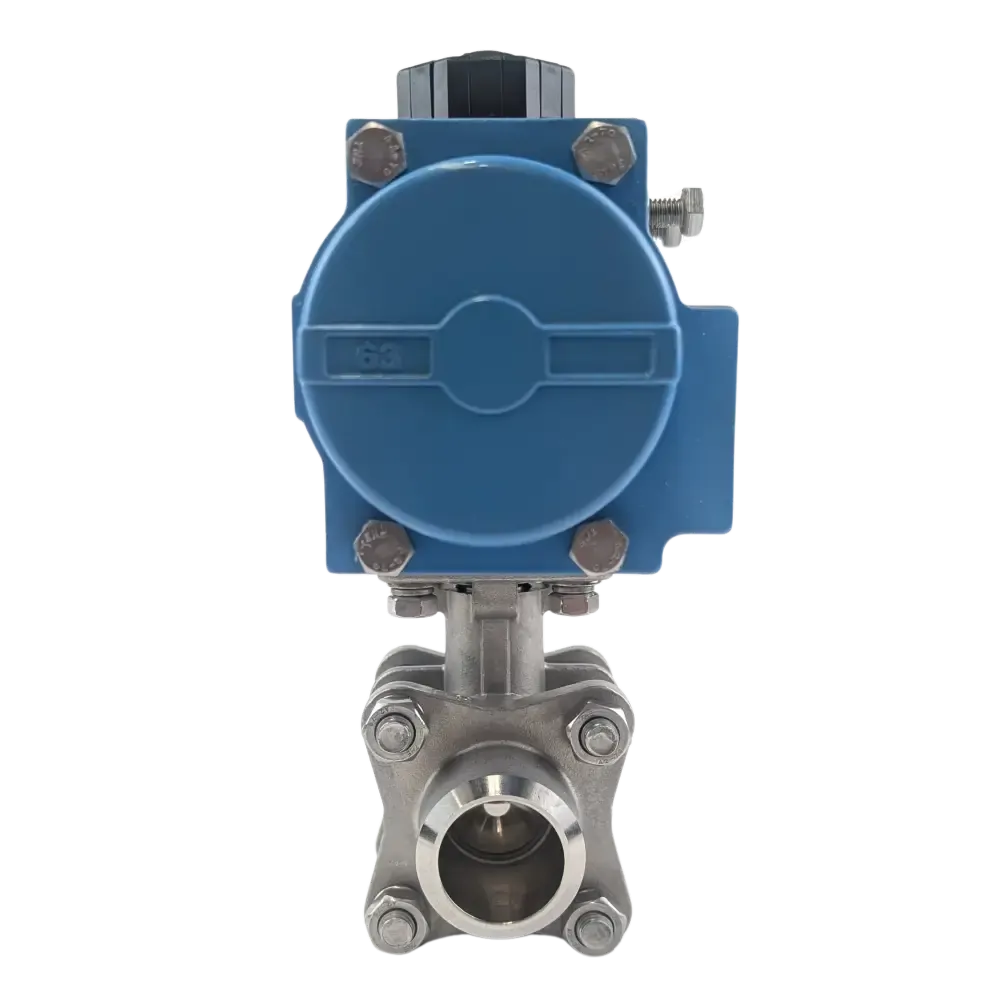

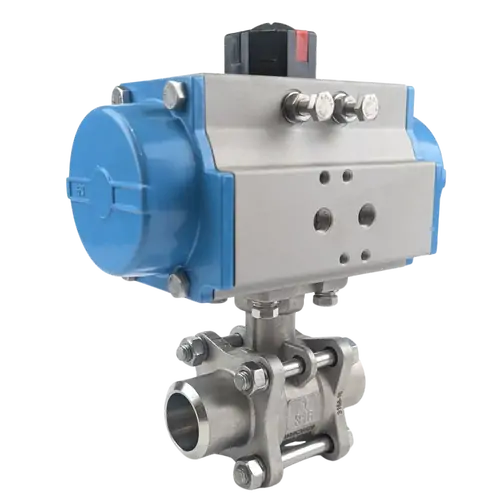

High performance 3 piece full bore 316 Stainless Steel ball valve with butt weld connections and a spring return pneumatic actuator. Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Pre drilled metric hole on ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. Anodised aluminium spring return pneumatic actuator which allows a fail safe position if air is lost. Typical applications include water treatment, chemical, marine, petrochemical and general industry. If you are constantily running at an elevated temperature we recommend our 50/50 stainless steel seats.
For Sprung Open the ‘5’ in the product code changes to a ‘6’.
| Model | Size | Actuator | d | D | L | H | A | B | P |
|---|---|---|---|---|---|---|---|---|---|
| BLSB52-SR-RT | 1/4" | SR50 | 11 | 18.1 | 70 | 32.5 | 138 | 90 | 1/8” |
| BLSB53-SR-RT | 3/8" | SR50 | 12.5 | 18.1 | 70 | 32.5 | 138 | 90 | 1/8” |
| BLSB54-SR-RT | 1/2" | SR50 | 15 | 21.7 | 75 | 42 | 138 | 90 | 1/8” |
| BLSB55-SR-RT | 3/4" | SR50 | 20 | 27.2 | 78 | 50 | 138 | 90 | 1/8” |
| BLSB56-SR-RT | 1" | SR63 | 25 | 34 | 87 | 58 | 162 | 100 | 1/8" |
| BLSB57-SR-RT | 1-1/4" | SR75 | 32 | 42.7 | 110 | 64 | 208 | 117 | 1/8" |
| BLSB58-SR-RT | 1-1/2" | SR75 | 40 | 48.6 | 125 | 69.5 | 208 | 117 | 1/8" |
| BLSB59-SR-RT | 2" | SR88 | 50 | 60.5 | 150 | 78 | 245 | 136 | 1/8" |
| BLSB510-SR-RT | 2-1/2" | SR100 | 65 | 76 | 190 | 100 | 266 | 142 | 1/8" |
| BLSB511-SR-RT | 3" | SR115 | 80 | 93 | 220 | 112.5 | 310 | 172 | 1/4" |
| BLSB512-SR-RT | 4" | SR125 | 100 | 116 | 270 | 125.5 | 340 | 184 | 1/4" |
All dimensions in mm unless otherwise stated
| Item | Description | Material |
|---|---|---|
| 1 | Body | CF8M |
| 2 | Ball | SS316 |
| 3 | Ball Seat | 15%R-PTFE |
| 4 | Thrust Washer | PTFE |
| 5 | Body Gasket | PTFE |
| 6 | O-Ring | Viton |
| 7 | Stem Packing | PTFE |
| 8 | Gland | SS304 |
| 9 | Tab Washer | SS304 |
| Item | Description | Material |
|---|---|---|
| 10 | Stem | SS316 |
| 11 | Belleville Washer | SS301 |
| 12 | Spring Washer | SS304 |
| 13 | Nut | SS304 |
| 14 | Bolt | SS304 |
| 15 | Cap | CF8M (1.4408) |
| 16 | Actuator Body | Aluminium |
| 17 | Actuator Seals | NBR70 |

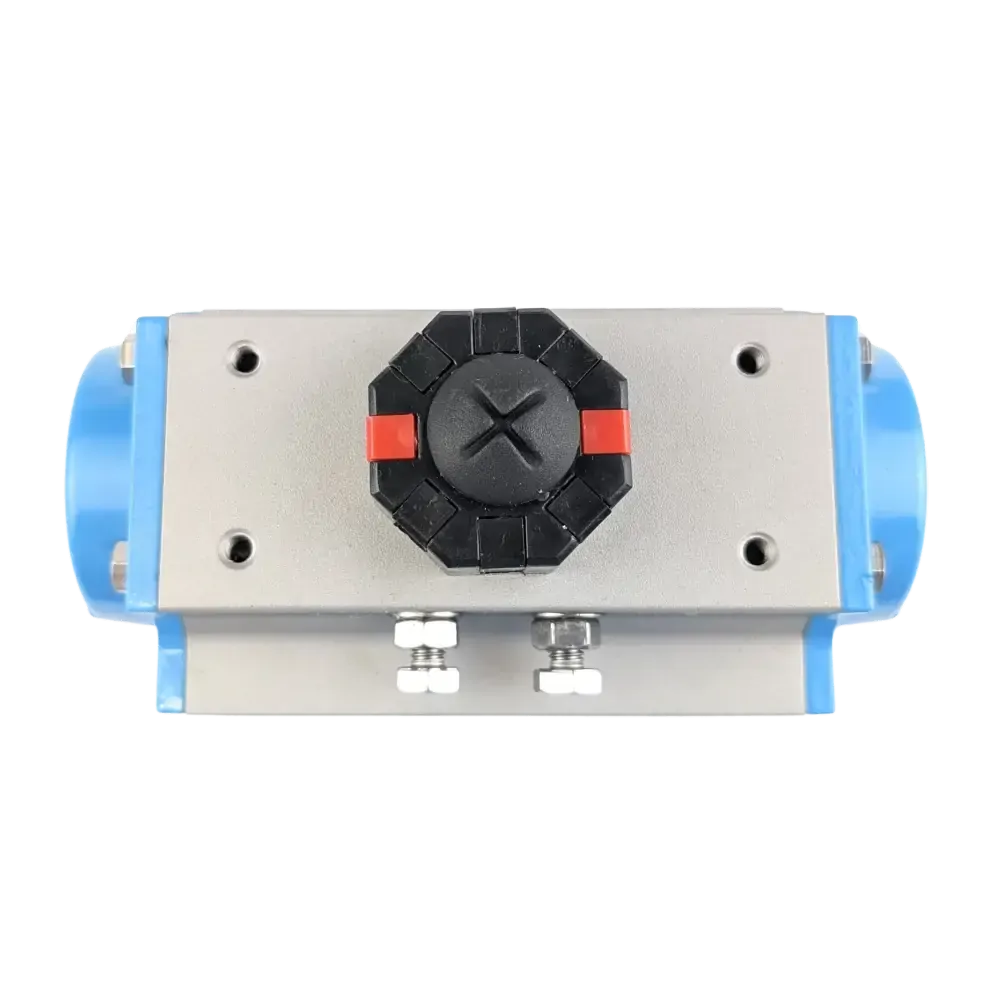

| 18 | Actuator Position Indicator | Nylon |
Size 1/2" to 4" Butt Weld
Body 316 Stainless Steel 3 piece
Seat Reinforced PTFE
Pressure 63 BAR
Temperature -20°C to 180°C
Actuation Spring Return Pneumatic
-
What is a 3 Piece 2 Way Spring Return Pneumatic Stainless Steel Butt Weld Ball Valve?
A three piece two way spring return stainless steel ball valve is constructed of three seperate body pieces and held together by the use of stainless steel tie rods with nuts at either end. It has a direct mounted anodised aluminium spring return rack and pinion actuator fixed to the valve which conducts its 90 degree turn (open.close). The valve's design enables removal from the line without disturbing the butt-welded connections, allowing for straightforward maintenance without the need to cut or re-weld the pipeline. It is also very easy to change the valve seats as you can access them directly when the ends are removed making them ideal for applications where the seat is worn regularly. Our design also has a longer neck to reduce thermal transfer and a direct mounting pad for mounting actuators without the use of a bracket and drive dog. They also have a reinforced teflon (PTFE) seat which is filled with a 15% glass filler. This allows higher pressures and temperatures up to 180 degrees celsius making it suitable for steam applications (refer to the temperature vs pressure graph). If a higher temperature is required these seats can be changed out to a 50% stainless steel seat if required. The actuator has a namur interface and position indicator.
-
How does a 3 Piece 2 Way Spring Return Pneumatic Stainless Steel Butt Weld Ball Valve work?
The 3 piece 2 way spring return ball valves works the same as any normal two way ball valve whereby the ball is rotated 90 degrees within the body of the valve which will either open or close the valve. The ball itself has a hole either end which the media will flow through when it is open. When the valve is closed these holes are blocked off to the flow effectively isolating the media either side of the valve. The ball is turned by a spring return rack & pinion actuator which is connected to a shaft which in turn is mated to the ball by a female slot. When the actuator is operated by a 5/2 (the most common we see is a 5/2 direct interfacing namur solenoid valve) the shaft will be rotated effectively turning the ball inside the cavity and switching it to its other state (either open or close). A 3/2 valve could be used instead which will operate one side of the pistons and rely on the spring to operate the other however we recommend a 5/2 to ensure clean air is only entering the actuator. If a 3/2 is used we would recommend a silencer is put into the unused port to help protect the actuator. Extras such as limit switch boxes and positioners can also be mounted directly to the actuator.
-
How long will my 3 Piece 2 Way Spring Return Pneumatic Stainless Steel Butt Weld Ball Valve last?
Like any valve this depends upon the usage case of your ball valve, its environment, media and how many times it is cycled. For instance if it is on a clean media, in a clean environment and not cycled regularly the life will be decades or more. If it is on a corrosive media and in a dry application with a high cycle rate the life will be much shorter. We conduct regular lab testing and 30,000 cycles is a reasonable life cycle for the ball valve depending upon the application. Being a 3 piece construction it is relatively easy to change the seats out when there is wear which is the main perishable in the valve. These are available as spare parts in a repair kit. The actuators life will depend upon how clean and dry the supply air is (the air that makes the actuator operate) however we regularly test these to over 800,000 cycles. Install a basic air filter if you are not sure about the quality of your air, we have pneumatic actuators that have been in operation for decades. The most common failure we see is due to dirty wet air been sent to the actuator.
-
How do I install a 3 Piece 2 Way Spring Return Pneumatic Stainless Steel Butt Weld Ball Valve?
These valves have plain buttweld ends designed to be welded directly to matching pipe ends. The pipe should be prepared and aligned properly before welding. The valve ends can be removed by loosening the tie rods, allowing the ends to be welded in place without exposing the valve body to heat. Once the ends are securely welded and cooled, the valve body can be reassembled. The spring return pneumatic actuator can accommodate a namur solenoid valve which is a very popular configuration (the 5/2 control valve bolts directly onto the actuator with an o-ring face seal on the back of the valve) or just a stand alone 5/2 valve. If you are using a stand alone 5/2 or 3/2 valve the air lines will need to be run from here into the ports/port on the actuator (remember the longer the run the slower the operation unless you use quick exhaust valves near the actuator).
-
What are typical uses of a 3 Piece 2 Way Spring Return Pneumatic Stainless Steel Butt Weld Ball Valve?
These three piece two way ball valves are used on a wide variety of applications. Being three piece they are a higher price than an ordinary two piece ball valve but possess many advantages. This means they are usually used in higher spec applications usually in industry. This includes water treatment, steam applications to 10 bar, chemical applications and many more. As they are spring return they are usually used in fail safe applications where you would like the ball valve to return to a predetermined positon (either open or close) if air is lost.
-
How long will my product take to get to me?
This depends upon where you are based and the freight method chosen. If the express freight option is selected it is usually next day delivery to metropolitan areas in Australia for under 5kg. If free freight has been selected it will go by road freight which can be anywhere from 1 to 10 days depending upon your location. It usually averages 3 days.
-
What warranty do I get?
All of our products come standard with a 12 month warranty. The good news is we have very strict quality controls and all valves leave our warehouse tested (full material and testing certificates to API598 are available) and inspected so there are rarely any issues. Also once your valve is in and operating it will most likely continue to do so for a very long time.
