Stainless Steel Spring Return Butterfly Valve

From $511.50

Inc GST
In Stock
Make an Enquiry

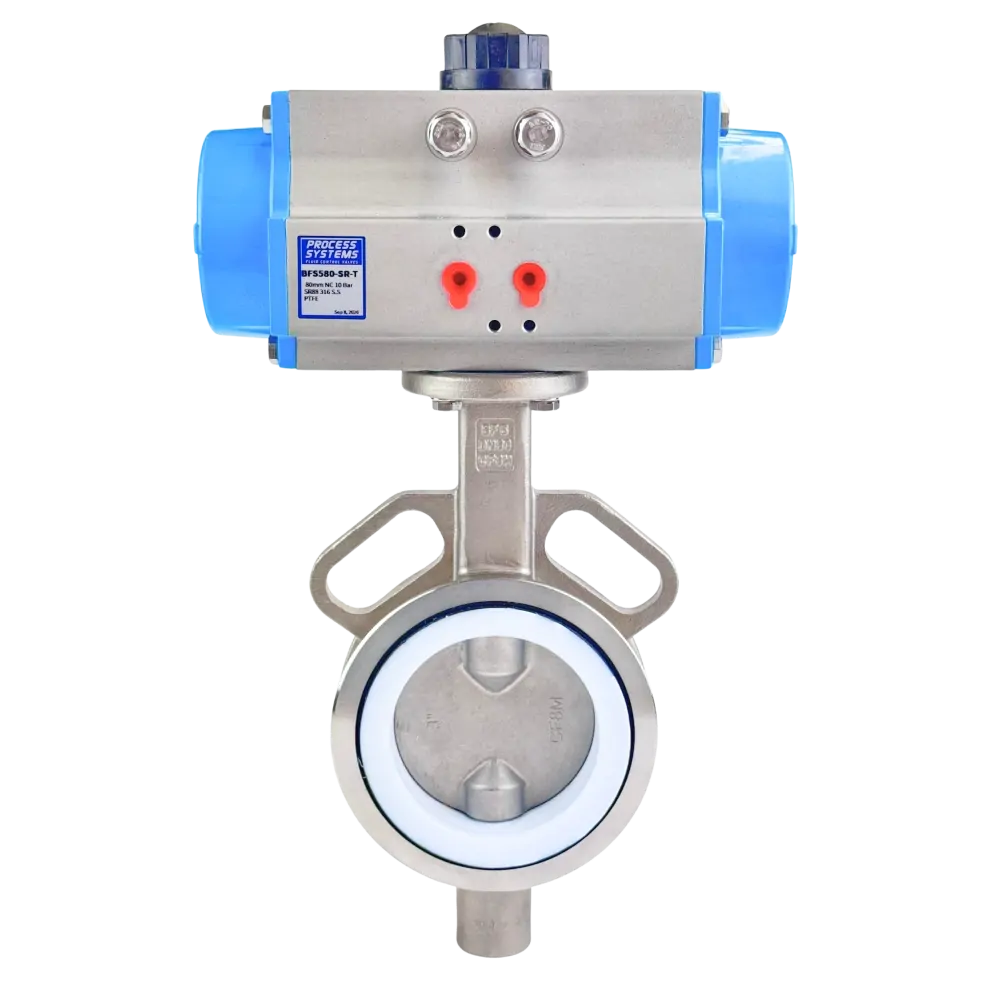

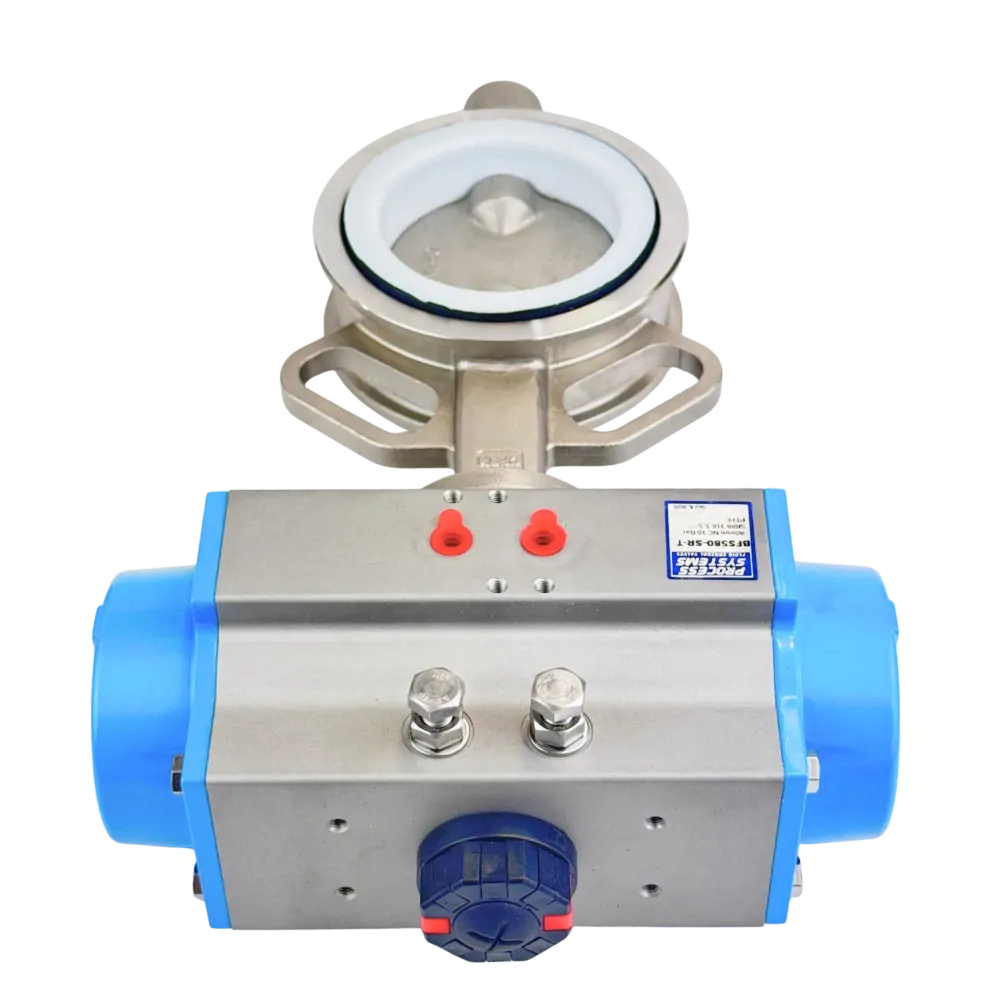

The BFS series of butterfly valve has a 316 Stainless Steel body, 316 S.S disc and a PTFE coated NBR seat making them suited to a wide range of high end applications. These wafer butterfly valves will fit all standard flanges and are operated by a high quality anodised aluminium spring return pneumatic actuator (rack and pinion design). The spring return design of the actuator allows it to have a fail safe position should air be lost. The unique bonded catridge design of the valve gives them a longer life span, allow vacuum to be run through them and makes them replaceable if ever the need should arise. Common applications include food industry, chemicals, pharmaceuticals and other industrial applications. If sizes above 300mm are required please contact us.

Model Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BFS550-SR-T 50 SR75 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/8"
BFS565-SR-T 65 SR88 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/8"
BFS580-SR-T 80 SR88 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/8"
BFS5100-SR-T 100 SR100 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/4"
BFS5125-SR-T 125 SR115 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/4"
BFS5150-SR-T 150 SR125 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/4"
BFS5200-SR-T 200 SR145 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/4"
BFS5250-SR-T 250 SR180 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/4"
BFS5300-SR-T 300 SR200 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/4"

For Sprung Open the ‘5’ in the product code changes to a ‘6’.

For sizes over 300mm please contact us.

DN Actuator B C D E F G BS4504 PN10 ANSI 150 AS2129 Table D AS2129 Table E
D1 n-d1 D1 n-d1 D1 n-d1 D1 n-d1
50 SR75 210 42 97 117 208 94.5 125 4-18 120.5 4-19 114 4-18 114 4-18
65 SR88 225 44.7 116 136 245 109 145 4-18 139.5 4-19 127 4-18 127 4-18
80 SR88 250 45.2 116 136 245 109 160 4(8)-18 152.5 4-19 146 4-18 146 4-18
100 SR100 270 52.1 122 142 266 123 180 4(8)-18 190.5 4(8)-19     178 4(8)-18
125 SR115 305 54.4 142 172 310 137 210 4(8)-18 216 4(8)-22 210 4(8)-18 210 4(8)-18
150 SR125 345 55.8 154 184 340 148 240 4(8)-23 241.5 4(8)-22 235 4(8)-18 235 4(8)-22
200 SR145 415 60.6 179 209 401 168.5 295 4(8)-23 298.5 4(8)-22 292 4(8)-18 292 4(8)-22
250 SR180 485 65.6 222 252 482 204 355 4(12)-23 362 4(12)-25     356 4(12)-22
300 SR200 555 76.9 244 274 532 224 410 4(12)-23 432 4(12)-25 406 4(12)-22 406 4(12)-26

All dimensions in mm unless specified

Size 50mm to 300mm
Body 316 Stainless Steel
Seat PTFE coated NBR
Disc 316 Stainless Steel
Pressure 10 BAR
Actuation Spring Return Pneumatic

We Also Recommend

Others Also Bought

BFSSR

Stainless Steel Spring Return Butterfly Valve

Features:

Size 50mm to 300mm
Body 316 Stainless Steel
Seat PTFE coated NBR
Disc 316 Stainless Steel
Pressure 10 BAR
Actuation Spring Return Pneumatic

Description:

The BFS series of butterfly valve has a 316 Stainless Steel body, 316 S.S disc and a PTFE coated NBR seat making them suited to a wide range of high end applications. These wafer butterfly valves will fit all standard flanges and are operated by a high quality anodised aluminium spring return pneumatic actuator (rack and pinion design). The spring return design of the actuator allows it to have a fail safe position should air be lost. The unique bonded catridge design of the valve gives them a longer life span, allow vacuum to be run through them and makes them replaceable if ever the need should arise. Common applications include food industry, chemicals, pharmaceuticals and other industrial applications. If sizes above 300mm are required please contact us.

Model Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BFS550-SR-T 50 SR75 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/8"
BFS565-SR-T 65 SR88 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/8"
BFS580-SR-T 80 SR88 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/8"
BFS5100-SR-T 100 SR100 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/4"
BFS5125-SR-T 125 SR115 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/4"
BFS5150-SR-T 150 SR125 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/4"
BFS5200-SR-T 200 SR145 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/4"
BFS5250-SR-T 250 SR180 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/4"
BFS5300-SR-T 300 SR200 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR 1/4"

For Sprung Open the ‘5’ in the product code changes to a ‘6’.

For sizes over 300mm please contact us.

.

Stainless Steel Spring Return Butterfly Valve

BFSSR

Dimensions:

DN Actuator B C D E F G BS4504 PN10 ANSI 150 AS2129 Table D AS2129 Table E
D1 n-d1 D1 n-d1 D1 n-d1 D1 n-d1
50 SR75 210 42 97 117 208 94.5 125 4-18 120.5 4-19 114 4-18 114 4-18
65 SR88 225 44.7 116 136 245 109 145 4-18 139.5 4-19 127 4-18 127 4-18
80 SR88 250 45.2 116 136 245 109 160 4(8)-18 152.5 4-19 146 4-18 146 4-18
100 SR100 270 52.1 122 142 266 123 180 4(8)-18 190.5 4(8)-19     178 4(8)-18
125 SR115 305 54.4 142 172 310 137 210 4(8)-18 216 4(8)-22 210 4(8)-18 210 4(8)-18
150 SR125 345 55.8 154 184 340 148 240 4(8)-23 241.5 4(8)-22 235 4(8)-18 235 4(8)-22
200 SR145 415 60.6 179 209 401 168.5 295 4(8)-23 298.5 4(8)-22 292 4(8)-18 292 4(8)-22
250 SR180 485 65.6 222 252 482 204 355 4(12)-23 362 4(12)-25     356 4(12)-22
300 SR200 555 76.9 244 274 532 224 410 4(12)-23 432 4(12)-25 406 4(12)-22 406 4(12)-26

All dimensions in mm unless specified
