Lugged Ductile Iron Spring Return Butterfly Valve

Size 50mm to 600mm
Body FBE coated Cast Iron
Seat EPDM
Disc 316 Stainless Steel
Pressure Up to 16 BAR (depending upon size)
Actuation Spring Return Pneumatic

• What is a Spring Return Lugged Butterfly Valve?

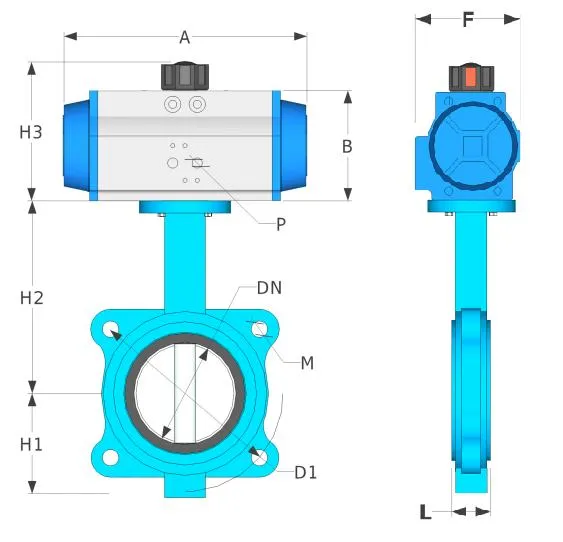

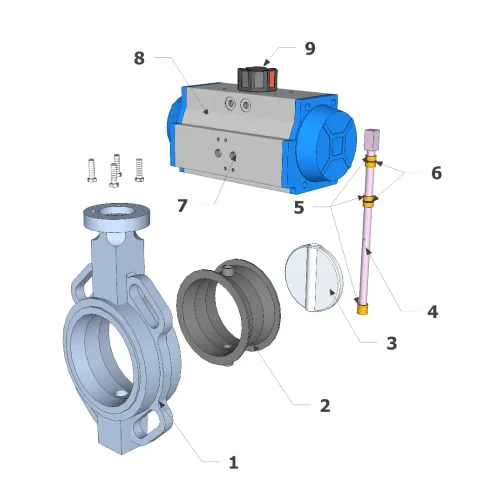

  A spring return pneumatic lugged butterfly valve is a butterfly valve that is designed to be held in place by threaded bolts that go into the body of the valve. It has a direct mounted anodised spring return aluminium rack and pinion actuator fixed to the valve which conducts its 90 degree turn (open/close). In this case we are talking about ductile iron (similar to cast iron but better advantages in terms of strength, elongation & life) center line wafer butterfly valves. The center line refers to the location of the disc and shaft in relation to the body (there are other kinds of butterfly valves such as double & triple offset) where it is precisely in the middle. These valves have an EPDM seat and carry a Watermark and Standards Mark certification. The spring return actuator has a namur interface and position indicator.

• How does a Lugged Spring Return Pneumatic Butterfly Valve work?

  A spring return lugged butterfly valve works by the shaft rotating 90 degrees which will take the position of the disc in the flow from open to close (or vice versa). When it is closed a seal will be formed between the disc and the seat effectively stopping the flow of the media. When it is opened again the disc comes away from the seat and when it is fully open sits side (smallest surface area facing) on to the direction of the upstream flow. This 90 degree turn is conducted by a spring return rack & pinion actuator which is connected to a shaft which in turn is mated to the disc by a spline. When the actuator is operated by a 5/2 (the most common we see is a 5/2 direct interfacing namur solenoid valve) the shaft will be rotated effectively turning the ball inside the cavity and switching it to its other state (either open or close). A 3/2 valve could be used instead which will operate one side of the pistons and rely on the spring to operate the other however we recommend a 5/2 to ensure clean air is only entering the actuator. If a 3/2 is used we would recommend a silencer is put into the unused port to help protect the actuator. Extras such as limit switch boxes and positioners can also be mounted directly to the actuator.

• How long will my Spring Return Lugged Butterfly Valve last?

  Like any valve this depends upon the usage case of your butterfly valve, its environment, media and how many times it is cycled. For instance if it is on a clean wet media, in a clean environment and not cycled regularly the life will be decades. If it is on a corrosive media and in a dry application with a high cycle rate the life will be much shorter. We conduct regular lab testing and 6,000 cycles is a reasonable life cycle depending upon the application. One advantage of this design is that the seat is replaceable and available as a repair kit. The actuators life will depend upon how clean and dry the supply air is (the air that makes the actuator operate) however we regularly test these to over 800,000 cycles. Install a basic air filter if you are not sure about the quality of your air, we have pneumatic actuators that have been in operation for decades. The most common failure we see is due to dirty wet air being sent to the actuator (that is why we recommend to use a 5/2 valve even though the actuator only needs a 3/2, you ensure you can deliver clean air to the actuator).

• How do I install a Spring Return Pneumatic Lugged Butterfly Valve?

  These lugged butterfly valves need threaded bolts correctly sized to thread into the corresponding threaded holes in the butterfly valve body. The seat of the valve also forms the gasket on the flanges so there is no need for a secondary gasket. The bolts should be tightened in a diagonal shape to avoid over tightening in one area. For a full list of instructions please visit our butterfly valve installation & maintenance guide. The spring return pneumatic actuator can accommodate a namur solenoid valve which is a very popular configuration (the 5/2 control valve bolts directly onto the actuator with an o-ring face seal on the back of the valve) or just a stand alone 5/2 valve. If you are using a stand alone 5/2 or 3/2 valve the air lines will need to be run from here into the ports/port on the actuator (remember the longer the run the slower the operation unless you use quick exhaust valves near the actuator).

• What are typical uses of a Spring Return Lugged Butterfly Valve?

  These are very common in the water industry especially because most of our models hold a Watermark and Standards mark approval. They are also used for general purpose applications as long as the media, temperature and pressure are compatible. One main advantage of butterfly valves is they are relatively cheap compared to their size if you are comparing to another valve type (eg. ball valve). As they are spring return they are usually used in fail safe applications where you would like the butterfly valve to return to a predetermined position (either open or close) if air is lost.
