SKU: BFDDDA

Double Flanged Double Acting Butterfly Valve

Flanged AS4087 PN16

From $302.50

Inc GST
In Stock
Make an Enquiry

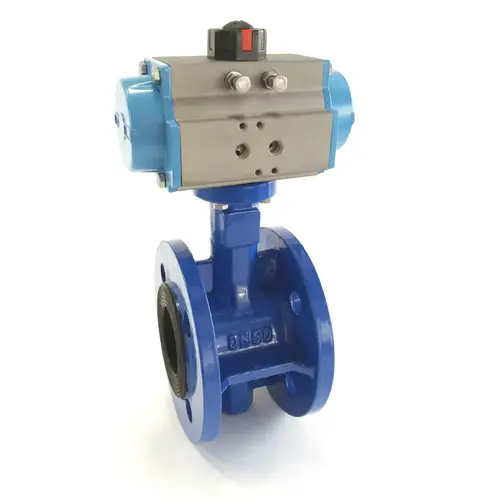

Fusion Bonded Epoxy Ductile Iron Double Flanged Butterfly Valve to suit AS4087 PN16 (mostly the same as Table E). Comes with Anodised Aluminium Double Acting Pneumatic Actuator with visual indicator. EPDM seat and the disc is on a spline shaft (not pinned eliminating a possible failure point). These are Watermark, Standards Mark and WSAA (Water Service Association of Australia) certified.

Model Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BFDD50-DA-E 50 DA50 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/8"
BFDD65-DA-E 65 DA50 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/8"
BFDD80-DA-E 80 DA63 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/8"
BFDD100-DA-E 100 DA75 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/8"
BFDD125-DA-E 125 DA88 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/8"
BFDD150-DA-E 150 DA100 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFDD200-DA-E 200 DA115 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFDD250-DA-E 250 DA125 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFDD300-DA-E 300 DA145 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFDD350-DA-E 350 DA180 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFDD400-DA-E 400 DA200 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFDD450-DA-E 450 DA200 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFDD500-DA-E 500 DA240 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFDD600-DA-E 600 DA270 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"

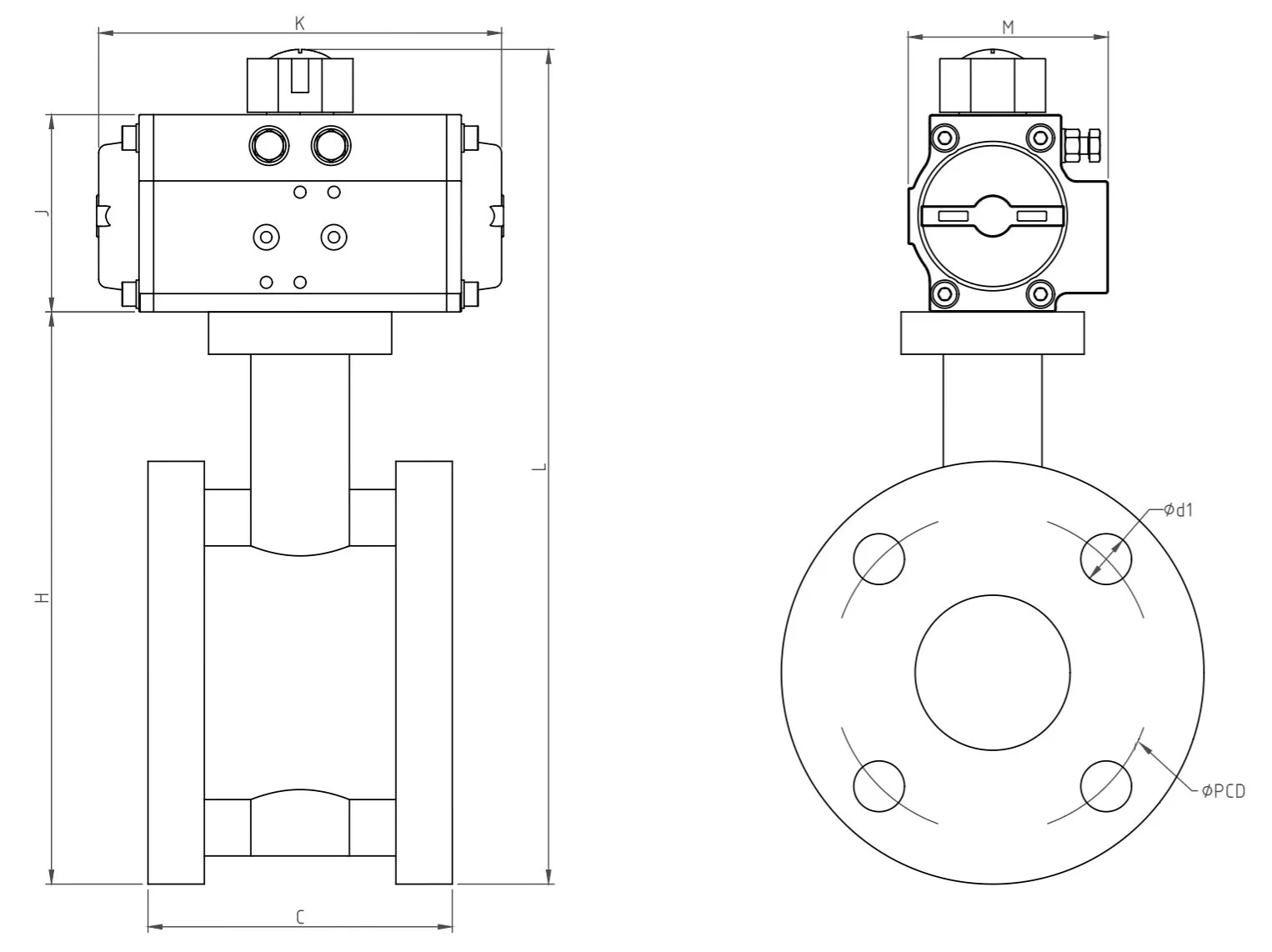

DN Actuator C H ⌀PCD n ⌀d1 J K L M
50 DA50 108 203 114 4 18 70 138 293 71
65 DA50 112 223 127 4 18 70 138 313 71
80 DA63 114 245 146 4 18 80 162 345 80.5
100 DA75 127 269 178 4 18 97 208 386 94.5
125 DA88 140 295 210 8 18 116 245 431 109
150 DA100 140 333 235 8 18 122 266 523 123
200 DA115 152 375 292 8 18 142 310 547 137
250 DA125 165 433 356 8 22 154 340 617 148
300 DA145 178 503 406 12 22 179 401 712 168.5
350 DA180 190 589 470 12 26 222 482 841 204
400 DA200 216 640 521 12 26 244 532 914 224
450 DA200 222 720 584 12 26 244 532 994 224
500 DA240 229 785 641 16 26 288 662 1103 266
600 DA270 267 910 756 16 30 323 730 1263 306

All dimensions in mm unless otherwise specified

Size Flanged AS4087 PN16 50mm to 1200mm
Body FBE coated Ductile Iron
Seat EPDM
Disc 316 Stainless Steel
Pressure Up to 16 BAR (depending upon size)
Actuation Double Acting Pneumatic

  • What is a Double Acting Double Flanged Butterfly Valve?

    A double acting pneumatic double flanged butterfly valve is a butterfly valve that has integral flanges built into the body of the valve. It is designed to mate up to two flange faces in pipework. It has a direct mounted anodised aluminium rack and pinion actuator fixed to the valve which conducts its 90 degree turn (open/close). This valve body is made of ductile iron (similar to cast iron but better advantages in terms of strength, elongation & life)  and has a center line design. The center line refers to the location of the disc and shaft in relation to the body (there are other kinds of butterfly valves such as double & triple offset) where it is precisely in the middle. These valves can have different seat materials but the most common would be EPDM but others such as FKM, NBR or PTFE are also used. This type of body has the added advantage that the disc of the valve will do most of its turn within its own body width whereas wafer or lugged the disc will turn mostly in the pipe. The actuator has a namur interface and position indicator.

  • How does a Double Flanged Double Acting Pneumatic Butterfly Valve work?

    A double flanged butterfly valve works by the shaft rotating 90 degrees which will take the position of the disc in the flow from open to close (or vice versa). When it is closed a seal will be formed between the disc and the seat effectively stopping the flow of the media. When it is opened again the disc comes away from the seat and when it is fully open sits side (smallest surface area facing) on to the direction of the upstream flow. This 90 degree turn is conducted by a double acting rack & pinion actuator which is connected to a shaft which in turn is mated to the disc by a spline. When the actuator is operated by a 5/2 valve (all double acting actuators need a 5/2 valve to operate, the most common we see is a 5/2 direct interfacing namur solenoid valve) the shaft will be rotated effectively turning the disc, switching it to its other state (either open or close). Extras such as limit switch boxes and positioners can also be mounted directly to the actuator.

  • How long will my Double Acting Double Flanged Butterfly Valve last?

    Like any valve this double flanged unit depends upon the usage case of your butterfly valve, its environment, media and how many times it is cycled. For instance if it is on a clean wet media, in a clean environment and not cycled regularly the life will be decades. If it is on a corrosive media and in a dry application with a high cycle rate the life will be much shorter. We conduct regular lab testing and 6,000 cycles is a reasonable life cycle depending upon the application. The actuators life will depend upon how clean and dry the supply air is (the air that makes the actuator operate) however we regularly test these to over 800,000 cycles. Install a basic air filter if you are not sure about the quality of your air, we have pneumatic actuators that have been in operation for decades. The most common failure we see is due to dirty wet air been sent to the actuator.

  • How do I install a Double Acting Pneumatic Double Flanged Butterfly Valve?

    These double flanged butterfly valves are designed to mate between two flanges. These will then be bolted together with the appropriate sized bolt and nut (varies depending upon size and flange standard). The seat of the valve also forms the gasket on the flanges so there is no need for a secondary gasket. The bolts should be tightened in a diagonal shape to avoid over tightening in one area. For a full list of instructions please visit our butterfly valve installation & maintenance guide. The double acting actuator can accommodate a namur solenoid valve which is a very popular configuration (the 5/2 control valve bolts directly onto the actuator with an o-ring face seal on the back of the valve) or just a standalone 5/2 valve. If you are using a stand alone 5/2 valve the air lines will need to be run from here into the ports on the actuator (remember the longer the run the slower the operation unless you use quick exhaust valves near the actuator).

  • What are typical uses of a Double Acting Double Flanged Butterfly Valve?

    These double flanged units are common in the water industry especially because most of our models hold a Watermark and Standards mark approval. They are also used for general purpose applications as long as the media, temperature and pressure are compatible. Being double acting they are not used in fail safe applications where you need the valve to fail to a particular positon (open or close) if you lose air, this would best be served by a spring return unit.

  • How long will my product take to get to me?

    This depends upon where you are based and the freight method chosen. If the express freight option is selected it is usually next day delivery to metropolitan areas in Australia for under 5kg. If free freight has been selected it will go by road freight which can be anywhere from 1 to 10 days depending upon your location. It usually averages 3 days.

  • What warranty do I get?

    All of our products come standard with a 12 month warranty. The good news is we have very strict quality controls and all valves leave our warehouse tested (full material and testing certificates to API 598 are available) and inspected so there are rarely any issues. Also once your valve is in and operating it will most likely continue to do so for a very long time.

.
.
