SKU: BVB

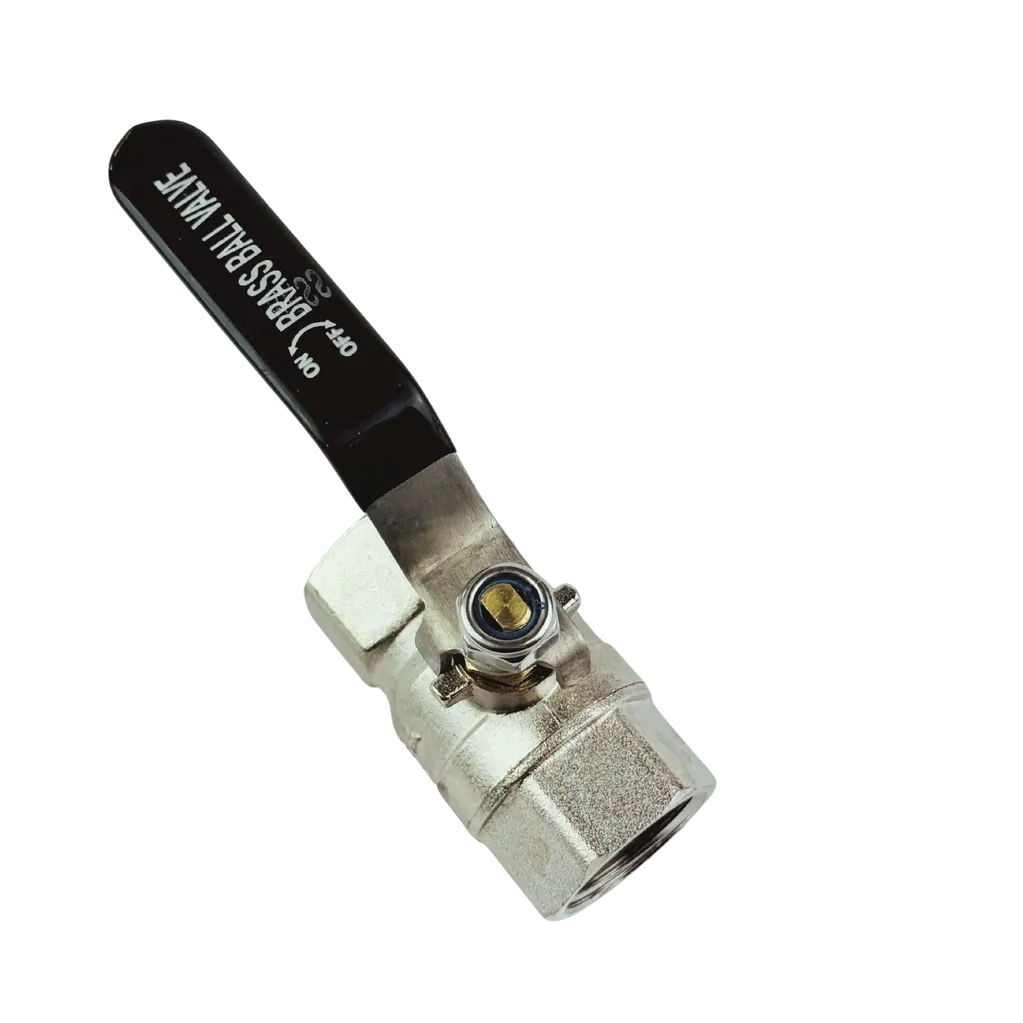

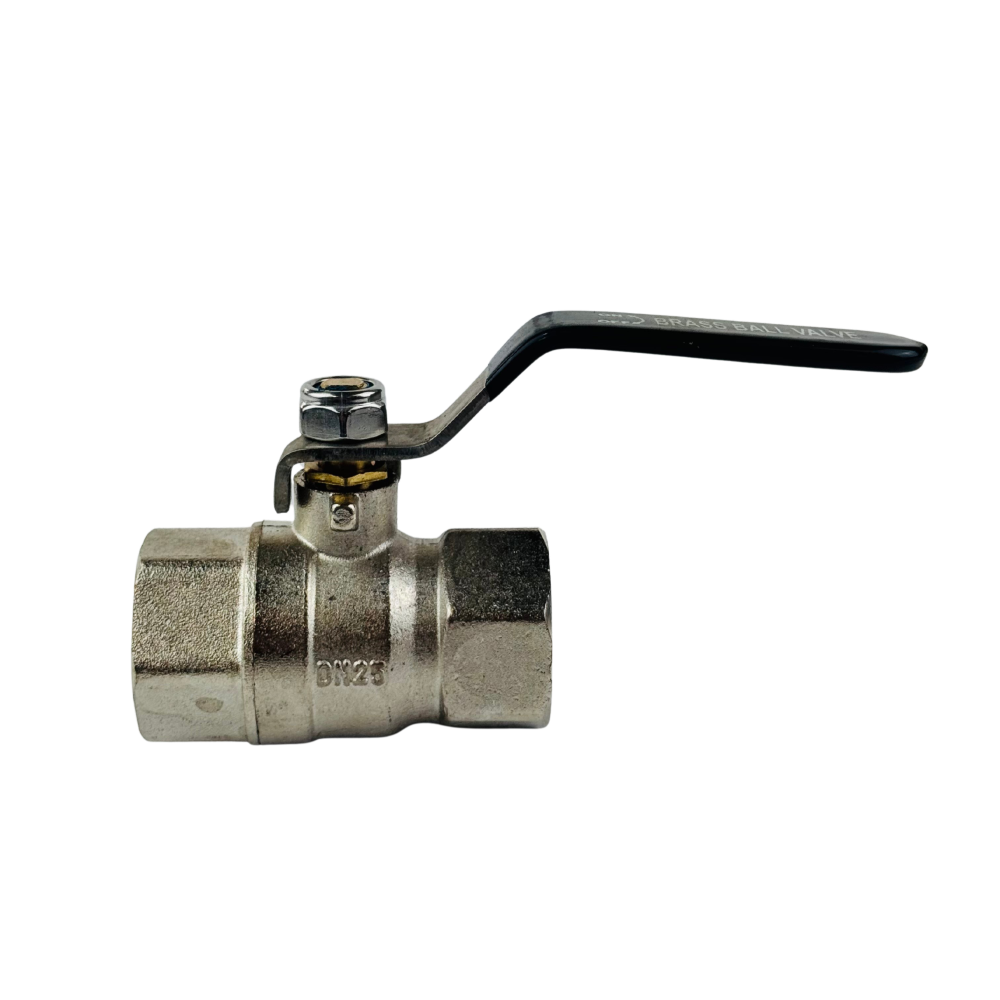

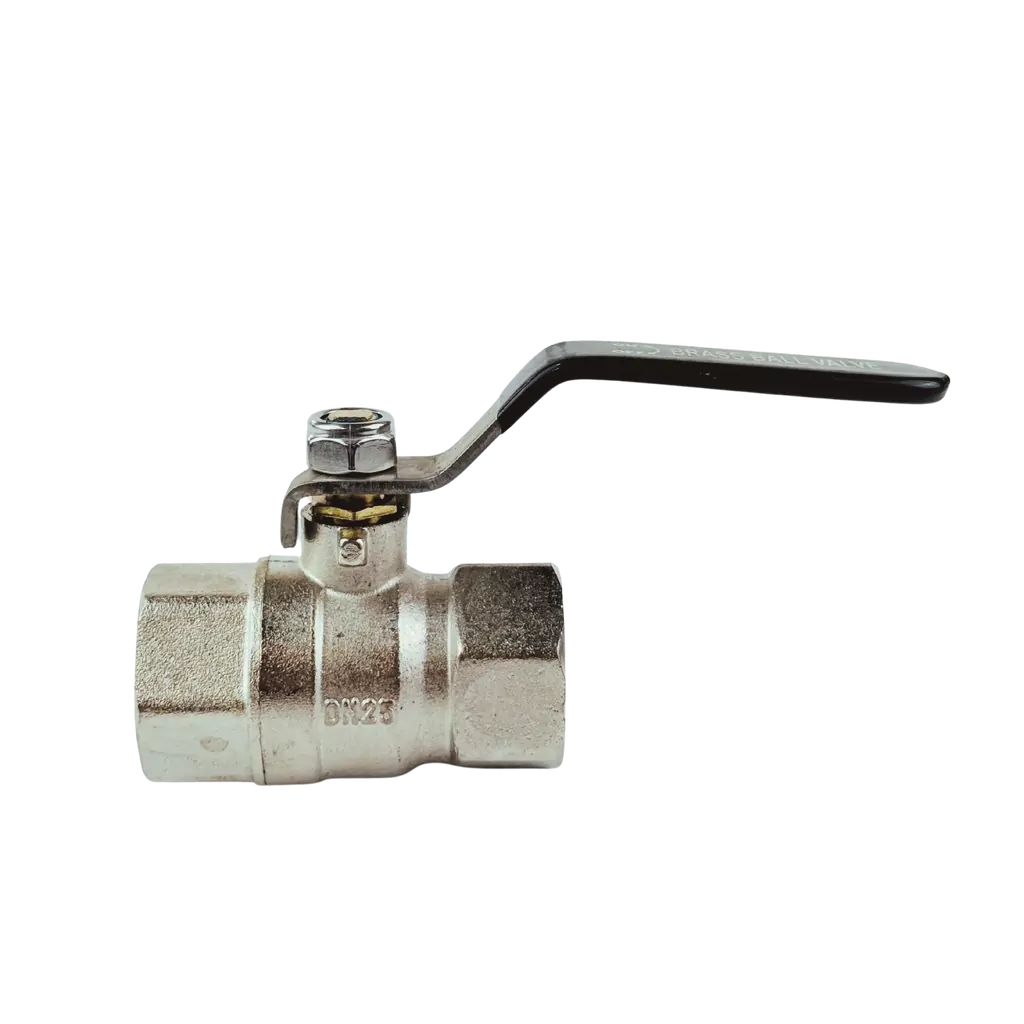

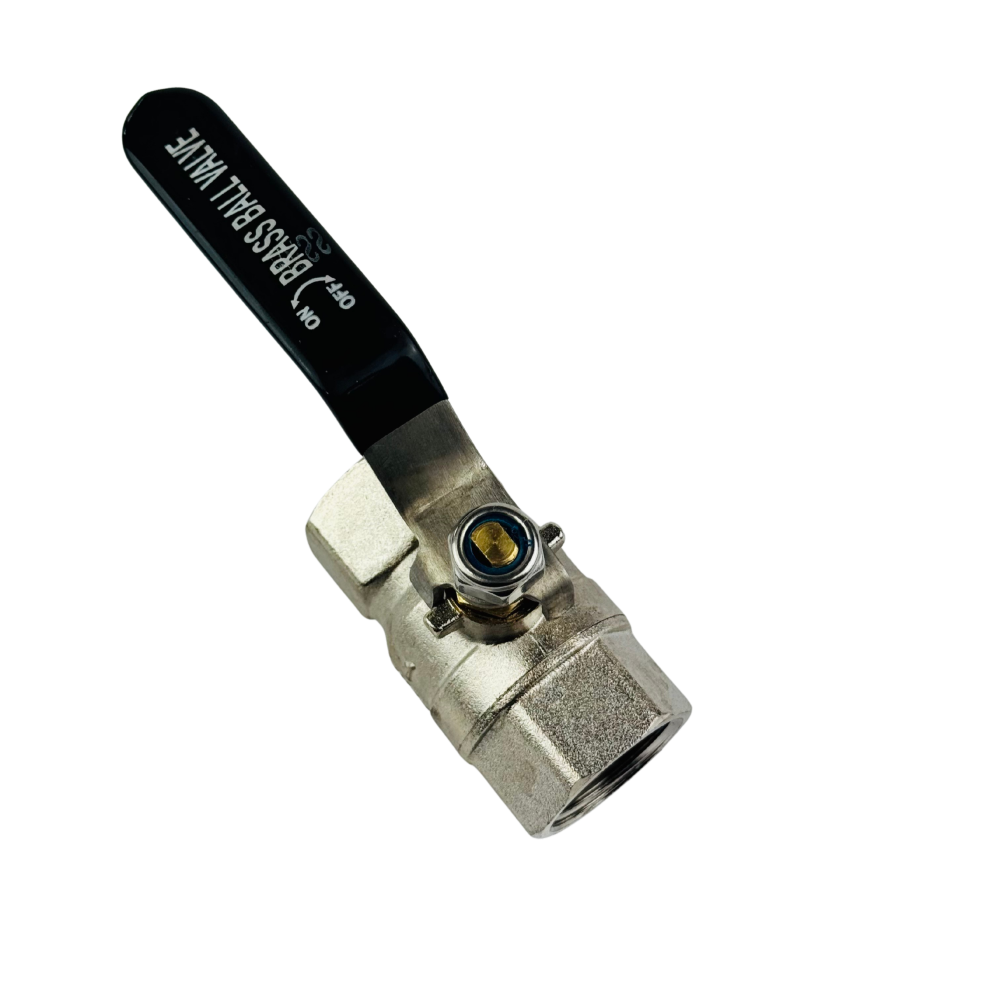

Nickel Plated Brass Ball Valve

From $9.90

Inc GST
In Stock
Make an Enquiry

Nickel Plated Brass two way two piece manual ball valve with lever operation. Ideal ball valve for general use manual operations such as line isolation and stop start applications. Gland Seal with lever (not lockable). All thread lenghts are qualified ensuring positive seal and longer life span. Threads conform to ISO 7.1 Sealing Threads.

Model Size (BSP) Orifice (mm) Media Pressure Media Temperature
BVB2B-L-T 1/4 10 0 to 16 BAR 0°C to 80°C
BVB3B-L-T 3/8 10 0 to 16 BAR 0°C to 80°C
BVB4B-L-T 1/2 14 0 to 16 BAR 0°C to 80°C
BVB5B-L-T 3/4 19 0 to 16 BAR 0°C to 80°C
BVB6B-L-T 1 23 0 to 16 BAR 0°C to 80°C
BVB7B-L-T 1 ¼ 30 0 to 16 BAR 0°C to 80°C
BVB8B-L-T 1 ½ 36 0 to 16 BAR 0°C to 80°C
BVB9B-L-T 2 47 0 to 16 BAR 0°C to 80°C
BVB11B-L-T 3 70 0 to 16 BAR 0°C to 80°C
BVB12B-L-T 4 90 0 to 16 BAR 0°C to 80°C

Nickel Plated Brass Ball Valve Dimensions

Size DN A B H L
1/4" 10 13.5 52 42 130
3/8" 10 13.5 52 42 130
1/2" 14 17 59 51 122
3/4" 19 18 68 55 126
1" 23 21 79 65 165
1 1/4" 30 22 89 80 185
1 1/2" 36 24 100 82 193
2" 47 26 116 97 228
3" 70 27 147 123 352
4" 90 30 174 147 360

All dimensions in mm unless shown otherwise.

Size 1/4" to 4" BSP
Body Nickel Plated Brass 2 piece
Seat PTFE
Pressure 16 BAR
Temperature 0°C to 80°C
Actuation Lever

  • What is a Two Way Nickel Plated Brass Ball Valve?

    A two way Nickel Plated Brass Ball Valve is made of two Nickel Plated Brass Body Pieces that house the rotating ball inside it. These are two way units with a female port at either end. The Ball Valve is operated by rotating the Handle 90 degrees which will open or close the ball valve. The handle is stopped at these positions by a limit stop which is cast into the body of the valve, this will stop the user moving the ball past the fully closed and fully open point.

  • How does a Nickel Plated Brass Ball Valve Work?

    Housed within the body of the ball valve is a polished Ball. This has a hole at either end which is equal to the inside diameter of the valve. When rotated 90 degrees it will either expose these holes to the flow or close them off from the flow allowing the valve to close or open. The ball is turned by a shaft which connects to a handle on the top of the valve. This type of Ball Valve is often called a floating ball valve as the ball itself is suspended within the cavity of the ball valve with the PTFE seats holding the ball from either end of the valve (and also sealing it).

  • What are Typical Uses of a Brass Ball Valve?

    These two piece Nickel Plated Brass Ball Valves are commonly used as an isolation valve. Really they can be used in any application where the media, temperature and pressure fit within the scope of the ball valve.

  • How do I install a Nickel Plated Brass Ball Valve?

    These are very easy to install as they are bi-directional meaning they do not have a direction of flow (unlike a solenoid valve for instance). This model has female threaded ends so a male nipple or thread will need to be inserted into the valve. Ensure that this has appropriate thread sealant or tape to achieve a bubble tight seal. They can be installed on any axis and any way if needed.

  • How long will my Nickel Plated Brass Ball Valve Last?

    This really depends upon the environment and media that the ball valve is exposed to. The cycle rate will feature heavily as well as if the valve is only cycled once a day it may well last over a decade however if it is cycled frequently it will wear out sooner. We lab test these to 30,000 cycles and they still hold a bubble tight seal.

  • How long will my product take to get to me?

    This depends upon where you are based and the freight method chosen. If the express freight option is selected it is usually next day delivery to metropolitan areas in Australia for under 5kg. If free freight has been selected it will go by road freight which can be anywhere from 1 to 10 days depending upon your location. It usually averages 3 days.

  • What warranty do I get?

    All of our products come standard with a 12 month warranty. The good news is we have very strict quality controls and all valves leave our warehouse tested (full material and testing certificates to API598 are available) and inspected so there are rarely any issues. Also once your valve is in and operating it will most likely continue to do so for a very long time.
