3 Way Stainless Steel Double Acting Ball Valve

From $203.50

Inc GST
In Stock
Make an Enquiry

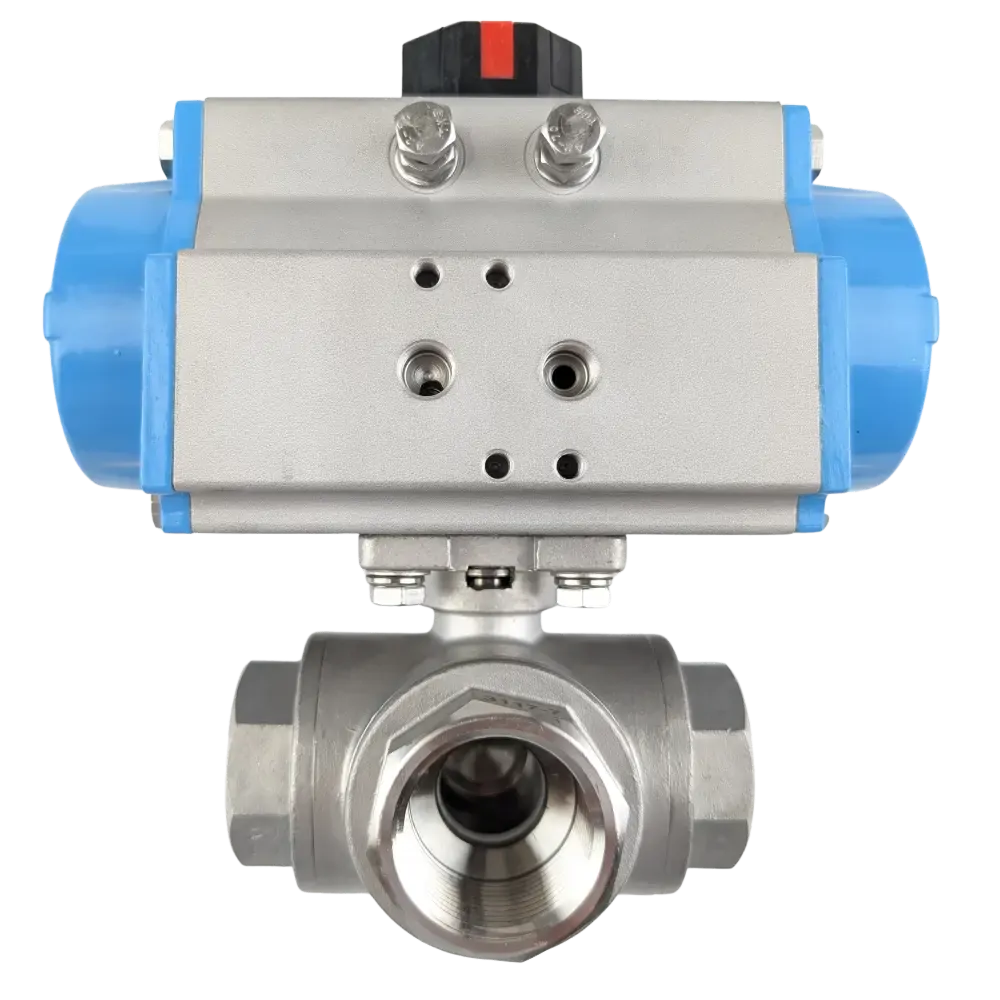

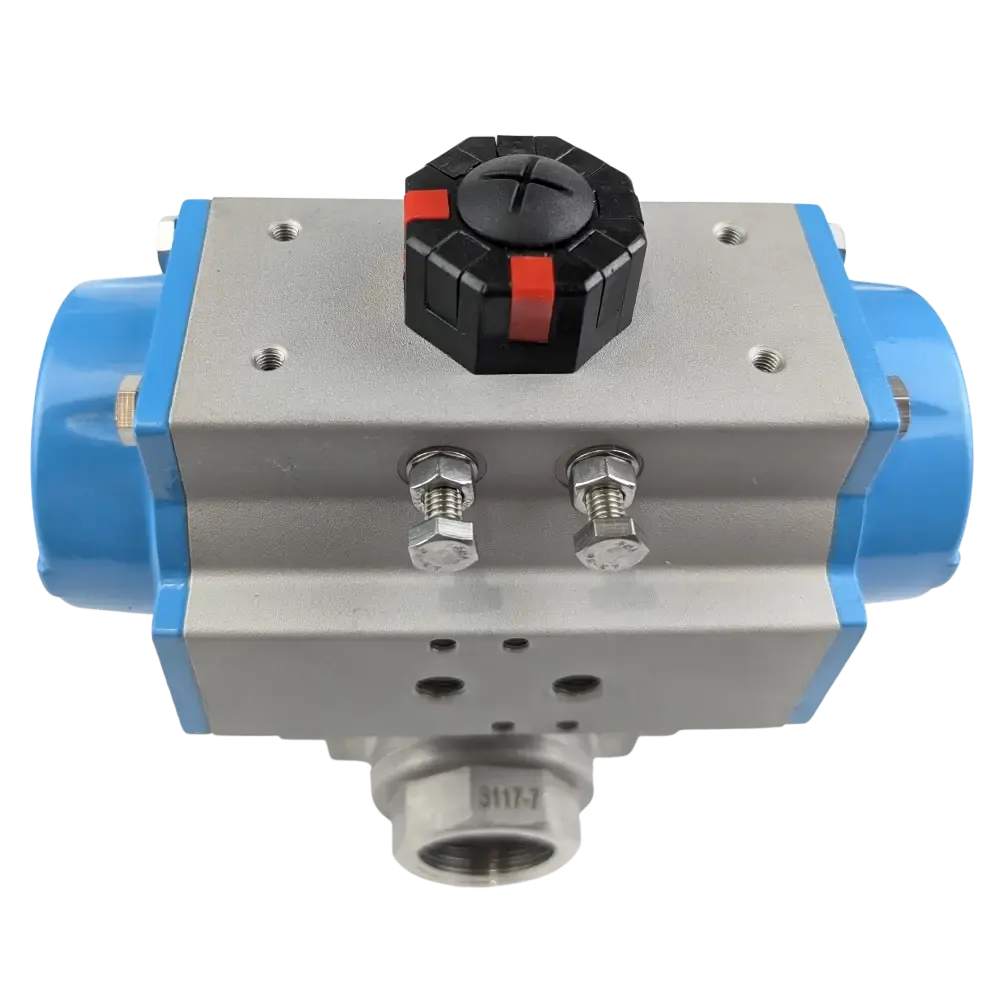

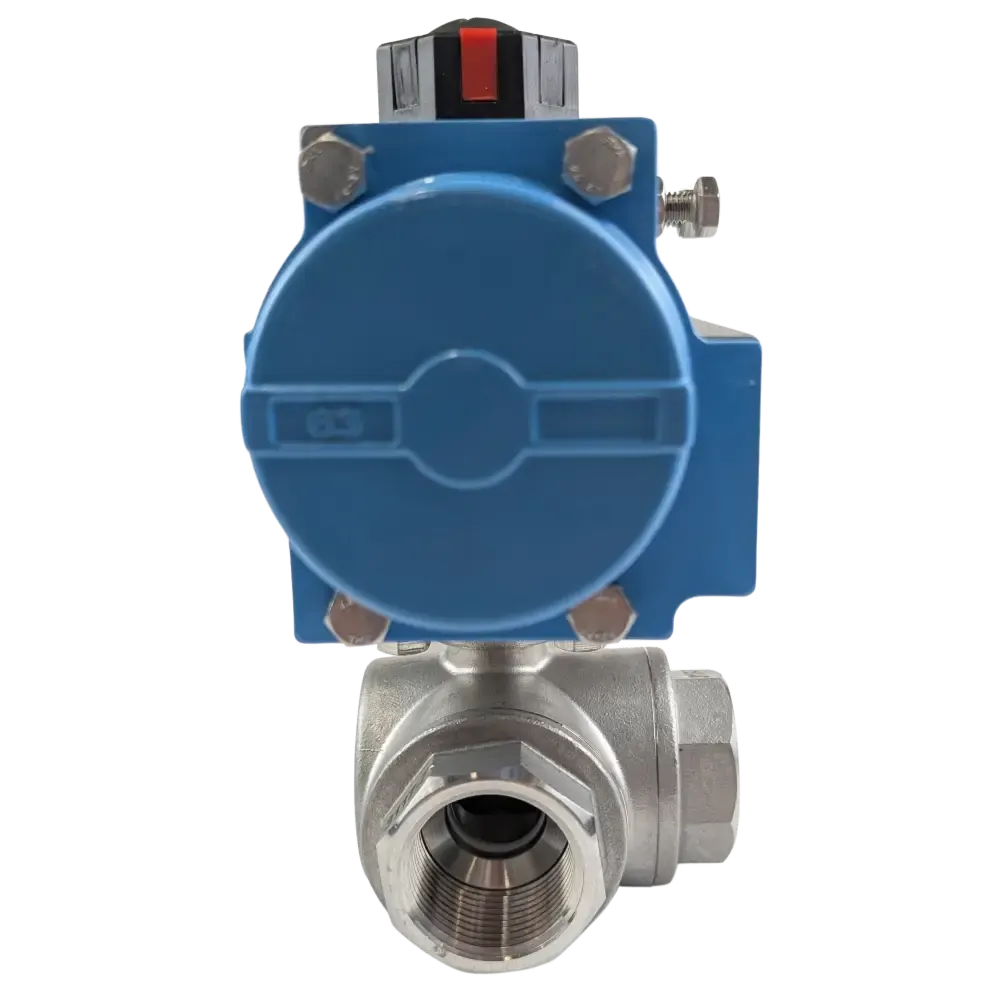

High performance 3 way (L and T port) reduced bore 316 Stainless Steel ball valve with BSP threaded connections and a double acting pneumatic actuator. Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Long neck to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. Typical applications include water treatment, chemical, marine, petrochemical and general industry. Threads conform to ISO 7.1 Sealing Threads.

Model Size(BSP) Orifice (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BLS3L2B-DA-RT 1/4 8 DA50 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS3L3B-DA-RT 3/8 10 DA50 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS3L4B-DA-RT 1/2 12 DA50 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS3L5B-DA-RT 3/4 15 DA50 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS3L6B-DA-RT 1 20 DA50 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS3L7B-DA-RT 1 1/4 25 DA63 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS3L8B-DA-RT 1 ½ 32 DA75 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS3L9B-DA-RT 2 43 DA75 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS3L10B-DA-RT 2 ½ 55 DA88 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS3L11B-DA-RT 3 66 DA100 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLS3L12B-DA-RT 4 75 DA115 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 6 to 8 BAR 1/4"

For T port change the ‘L’ to a ‘T’.

Stainless Steel 3 way ball valve double acting pneumatic

3 way Stainless Steel Double Acting Ball Valve Pressure vs Temperature

L Port T Port

Model Actuator d A B L E F G P
BLS3L2B-DA-RT DA50 9.5 57.5 37.5 75 138 90 71 1/8"
BLS3L3B-DA-RT DA50 11 57.5 37.5 75 138 90 71 1/8"
BLS3L4B-DA-RT DA50 12 57.5 37.5 75 138 90 71 1/8"
BLS3L5B-DA-RT DA50 15 65.5 42.5 85 138 90 71 1/8"
BLS3L6B-DA-RT DA50 20 79 50 100 138 90 71 1/8"
BLS3L7B-DA-RT DA63 25 97 61 122 162 100 80.5 1/8"
BLS3L8B-DA-RT DA75 32 106.5 65.5 131 208 117 94.5 1/8"
BLS3L9B-DA-RT DA75 40 129 79 158 208 117 94.5 1/8"
BLS3L10B-DA-RT DA88 49 145 89 178 245 136 109 1/8"
BLS3L11B-DA-RT DA100 60 167 101 202 266 142 123 1/4"
BLS3L12B-DA-RT DA115 75 203 123 246 310 172 137 1/4"

Dimensions are in mm unless noted otherwise

Item Description Material
1 Cap CF8M
2 Gasket PTFE
3 Ball Seat 15%RPTFE
4 Ball 316SS
5 Body CF8M
6 Stem 316SS
7 Thrust Washer PTFE
8 O-Ring Viton
9 Stem Packing PTFE
10 Stem Ring 316SS
11 Belleville Washer 304SS
12 Nut 304SS
13 Pneumatic Actuator Aluminium

Size 1/4" to 3" BSP
Body 316 Stainless Steel
Seat Reinfoced PTFE
Pressure  63 BAR
Temperature -20°C to 180°C
Actuation Double Acting Pneumatic
Watermark Approved

  • What is a 3 Way Stainless Steel Double Acting Pneumatic Ball Valve?

    A three way stainless steel double acting ball valve operates on the same principle as a two way double acting pneumatic ball valve but instead of a complete isolation or completely open (2 states, closed or open) it will have one line open and one line closed. It is important to note that during its 90 degree turn from one line to another there is a point where all lines are partially open to each other even though this is for a very short period of time (the time for one cycle depends upon the size of the actuator, your air pressure and 5/2 valve size but is usually a second or so in the smaller sizes and a few seconds in the bigger sizes). The 3 way ball valve itself is made of cast stainless steel (CF8M) with a polished stainless steel ball and a a direct mounted anodised aluminium rack and pinion actuator. The size of the actuator will get bigger with the size of the valves as the torque required increases. We match all of our actuators with at least a 30% safety margin in torque.

  • How does a 3 Way Stainless Steel Double Acting Pneumatic Ball Valve work?

    The 3 way ball valve will work by the double acting actuator rotating the ball 90 degrees in the valve. This will be in a clockwise or anticlockwise direction depending upon the actuator involved (ours usually open anti clockwise). The actuator itself is controlled by a 5/2 valve (either solenoid or manual) which will put the air in one side of the pistons and exhaust it out of the other side allowing the racks to rotate pinion. This will then turn the ball 90 degrees as the actuator is mated to the shaft of the ball valve, switching the ports to the other configuration.

  • How long will my 3 Way Stainless Steel Double Acting Ball Valve last?

    This depends upon the usage case of your valve, its environment, media, supply air cleanliness and how many times it is cycled. For instance if it is on a clean media, in a clean environment and not cycled regularly the life will be decades. If it is on a corrosive media and in a dry application with a high cycle rate the life will be much shorter. We conduct regular lab testing and 30,000 cycles is a reasonable life cycle depending upon the application. The actuators life will depend upon how clean and dry the supply air is (the air that makes the actuator operate) however we test these to over 800,000 cycles. Install a basic air filter if you are not sure about the quality of your air, we have pneumatic actuators that have been in operation for decades.

  • How do I install a 3 Way Stainless Steel Double Acting Ball Valve?

    This really depends upon the application it is going into. As this 3 way valve is female threaded it will need a male thread to fit into each of its ports (eg. male nipple). These should be sealed with thread tape or a thread sealant. As the body is full stainless steel if dissimilar metals are used this can be a potential corrosion point so make sure they are isolated from each other with some PTFE thread tape. The actuator can accommodate a namur solenoid valve which is a very popular configuration (the 5/2 control valve bolts directly onto the actuator with an o-ring face seal on the back of the valve) or just a standalone 5/2 valve. If you are using a stand alone 5/2 valve the air lines will need to be run from here into the ports on the actuator (remember the longer the run the slower the operation unless you use quick exhaust valves near the actuator).

  • What are typical uses of a three way stainless steel double acting ball valve?

    These three way double acting ball valves are used on a wide variety of applications. Everything from the food industry, power generation, mining and irrigation. The common theme though is where either a diversion (switching from one line to another) or isolation of one line to change over to another is used. The media can range from water, steam all the way through to corrosive chemicals that are compatible with the materials of the valve. Being double acting they are not really used on fail safe applications as you would want a spring return actuator in this instance (if you lose air the mechanical spring will turn the valve to your fail safe position).

  • How long will my product take to get to me?

    This depends upon where you are based and the freight method chosen. If the express freight option is selected it is usually next day delivery to metropolitan areas in Australia for under 5kg. If free freight has been selected it will go by road freight which can be anywhere from 1 to 10 days depending upon your location. It usually averages 3 days.

  • What warranty do I get?

    All of our products come standard with a 12 month warranty. The good news is we have very strict quality controls and all valves leave our warehouse tested (full material and testing certificates to API598 are available) and inspected so there are rarely any issues. Also once your valve is in and operating it will most likely continue to do so for a very long time.

We Also Recommend

Others Also Bought

BLS3DA

3 Way Stainless Steel Double Acting Ball Valve

Features:

Size 1/4" to 3" BSP
Body 316 Stainless Steel
Seat Reinfoced PTFE
Pressure  63 BAR
Temperature -20°C to 180°C
Actuation Double Acting Pneumatic
Watermark Approved

Description:

High performance 3 way (L and T port) reduced bore 316 Stainless Steel ball valve with BSP threaded connections and a double acting pneumatic actuator. Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Long neck to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. Typical applications include water treatment, chemical, marine, petrochemical and general industry. Threads conform to ISO 7.1 Sealing Threads.

Model Size(BSP) Orifice (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BLS3L2B-DA-RT 1/4 8 DA50 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS3L3B-DA-RT 3/8 10 DA50 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS3L4B-DA-RT 1/2 12 DA50 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS3L5B-DA-RT 3/4 15 DA50 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS3L6B-DA-RT 1 20 DA50 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS3L7B-DA-RT 1 1/4 25 DA63 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS3L8B-DA-RT 1 ½ 32 DA75 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS3L9B-DA-RT 2 43 DA75 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS3L10B-DA-RT 2 ½ 55 DA88 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS3L11B-DA-RT 3 66 DA100 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLS3L12B-DA-RT 4 75 DA115 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 6 to 8 BAR 1/4"

For T port change the ‘L’ to a ‘T’.

Stainless Steel 3 way ball valve double acting pneumatic

3 way Stainless Steel Double Acting Ball Valve Pressure vs Temperature

L Port T Port
.

3 Way Stainless Steel Double Acting Ball Valve

BLS3DA

Dimensions:

Model Actuator d A B L E F G P
BLS3L2B-DA-RT DA50 9.5 57.5 37.5 75 138 90 71 1/8"
BLS3L3B-DA-RT DA50 11 57.5 37.5 75 138 90 71 1/8"
BLS3L4B-DA-RT DA50 12 57.5 37.5 75 138 90 71 1/8"
BLS3L5B-DA-RT DA50 15 65.5 42.5 85 138 90 71 1/8"
BLS3L6B-DA-RT DA50 20 79 50 100 138 90 71 1/8"
BLS3L7B-DA-RT DA63 25 97 61 122 162 100 80.5 1/8"
BLS3L8B-DA-RT DA75 32 106.5 65.5 131 208 117 94.5 1/8"
BLS3L9B-DA-RT DA75 40 129 79 158 208 117 94.5 1/8"
BLS3L10B-DA-RT DA88 49 145 89 178 245 136 109 1/8"
BLS3L11B-DA-RT DA100 60 167 101 202 266 142 123 1/4"
BLS3L12B-DA-RT DA115 75 203 123 246 310 172 137 1/4"

Dimensions are in mm unless noted otherwise

.

3 Way Stainless Steel Double Acting Ball Valve

BLS3DA

Construction:

Item Description Material
1 Cap CF8M
2 Gasket PTFE
3 Ball Seat 15%RPTFE
4 Ball 316SS
5 Body CF8M
6 Stem 316SS
7 Thrust Washer PTFE
8 O-Ring Viton
9 Stem Packing PTFE
10 Stem Ring 316SS
11 Belleville Washer 304SS
12 Nut 304SS
13 Pneumatic Actuator Aluminium

WARNING
