Features:
Operator Size 14.5mm
Watts 18
Volt Amps 20
Voltage All
Insulation Class H
Rating IP65
Class H closed wound insulation which results in a maximum operating temperature of 180°C and max ambient temperature of 50°C.
| Model | Voltage | Resistance (Ω） | Amps | Power | Operating Temperature (℃) |
|---|---|---|---|---|---|
| SC-N14.5 | DC12V | 7.65 | 1.490 | 18W | 85 |
| DC24V | 30 | 0.780 | 18.5W | 85 | |
| AC24V | 4.95 | 0.710 | 17VA | 80 | |
| AC110V | 118 | 0.155 | 17VA | 80 | |
| AC240V | 400 | 0.105 | 25VA | 75 |
Operator Size 14.5mm
Watts 18
Volt Amps 20
Voltage All
Insulation Class H
Rating IP65
-

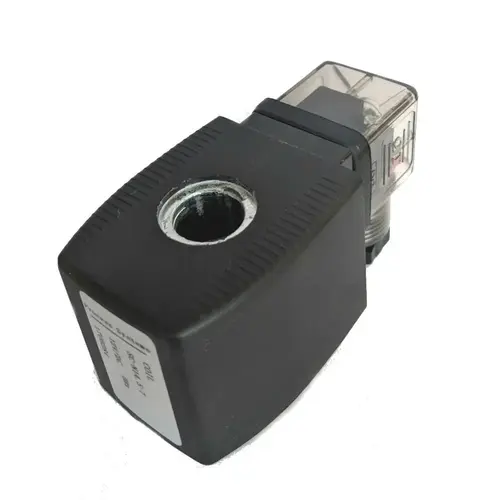

What is a 14.5mm Solenoid Coil?
This is a coil that is designed to fit over a 14.5mm operator on a solenoid valve. It is the part that lifts the armature inside the operator tube of the solenoid valve when power is applied. They are essential to every solenoid valve.
-
How does a 14.5mm Solenoid Valve Coil work?
The coil is essentially a number of copper windings formed around the operator. When power is applied to the coil it creates an electro-magnetic field which lifts the armature inside the operator tube of the solenoid valve. This will then allow the valve to operate. Power is applied to the coil through the DIN plug which is where your electrical cable is terminated. This has three terminals (+ve, -ve & earth or N, L & earth) which then fits over the male terminals on the coil.
-
Does the coil include a DIN plug?
Yes, we include DIN plugs with all of our coils and it is included in the price. More than likely if this is used as a replacement coil you will have an existing DIN plug wired in place. You can leave that wired in if it is working properly and keep the DIN plug that comes with our coil as a spare.
-
How do I know that this coil will suit my existing solenoid valve?
There are three critical components to sizing a solenoid coil to an existing valve. The first is the power of the coil. The power of the coil can be more than your valve requires but not less. The second is the operator diameter, the hole in the middle of the coil must suit the size of your operator so it can slide over the operator tube. It is best to have a snug fit so when the magnetic field is created it is transmitted straight onto your operator tube. This will also stop the coil from overheating. The third is the height of the coil. This must match the height of your operator. This is the distance that the magnetic field is created over and is crucial to the successful operation of your solenoid valve.
-
How long will my 14.5mm Solenoid Coil last?
Like any coil, this depends upon the usage case, duty cycle and external environment of the valve. If your valve is cycling every second, 24 hours a day, then its life will be shorter than one which is used once a day. Our coils are 100% duty rated which means they can operate continuously as long as the heat generated can be dissipated. If adequate ventilation cannot be provided, the duty cycle of the coil has to be reduced so the heat has time time to dissipate. The electrical supply to your coil can also determine its life cycle, as over voltage and or voltage spikes can shorten it, the same as any electrical equipment. Also, the DIN plug cable gland should face down to avoid moisture entering and damaging the coil and DIN plug.
-
What are typical uses of a 14.5mm Solenoid Coil ?
These are commonly used in solenoid valves such as 2 way Normally Closed or Normally Open valves. They do fit a wide range of brands that use a 14.5mm operator tube.
-
How do I wire and install my 14.5mm Solenoid Coil?
The good news is that our coils and DIN plugs are not polarity conscious. This means that you can have DC positive and negative to either of the two terminals or Neutral and Live if using AC power. It is essential that power is never connected to the earth terminal. The earth terminal can only be for earth and is the large flat terminal on the coil. Also double check the supply voltage is the same as what is specified on the coil before power is applied as this will potentially burn your coil if the voltage is higher than specified.
-
How long will my product take to get to me?
This depends upon where you are based and the freight method chosen. If the express freight option is selected it is usually next day delivery to metropolitan areas in Australia for under 5kg. If free freight has been selected it will go by road freight which can be anywhere from 1 to 10 days depending upon your location. It usually averages 3 days. You can rely on us to do everything to the best of our ability to despatch your order the same day we receive it, this is what we strivr to do.
-
What warranty do I get?
We have been manufacturing Solenoid Valves for over 30 years so we have a lot of experience at making a great coil. All of our products come standard with a 12 month warranty. The good news is we have very strict quality controls and all our coils leave our warehouse tested and inspected so there are rarely any issues. Also, once your coil is in and operating it will most likely continue to do so for a very long time barring any external factors.
