Features:
Shape Rectangle
Voltage 10 to 250v AC/DC
Features Illuminated LED
Hirschman type connector DIN 43650 for solenoid valve. Interface between the solenoid coil terminal and the supply wires.
| Model | Plug Dimensions (mm) | Description | Gromet (ID mm) | Cable Gland | Voltage Range | Pin Details |
|---|---|---|---|---|---|---|
| DPRL-6-H-PG9 | 20 x 28 | Rectangle LED Illuminated DIN 43650B | 6 | PG9 | 70~250v AC/DC | 2 Pin + Earth 11mm Pin spacing |
| DPRL-6-L-PG9 | 20 x 28 | Rectangle LED Illuminated DIN 43650B | 6 | PG9 | 10~50v AC/DC | 2 Pin + Earth 11mm Pin spacing |
Shape Rectangle
Voltage 10 to 250v AC/DC
Features Illuminated LED
-

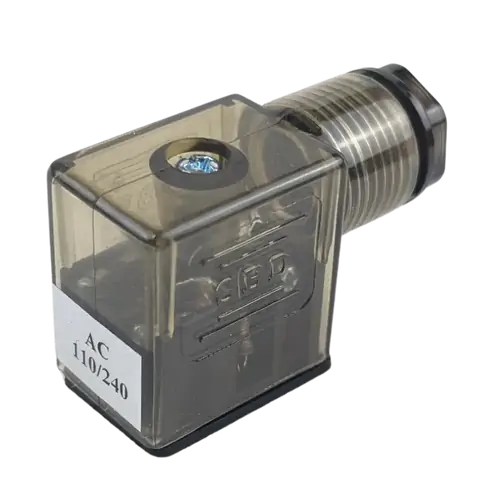

What is a Rectangle DIN Plug with LED light?
The DIN plug is derived from a German standard which is now widely used to encompass a type of electrical connector. We use it when talking about solenoid valves as the electrical connector that goes onto the solenoid valve coil. It is also sometimes referred to as a Hershman plug as well. This DIN Plug is called a rectangle DIN Plug as the body is rectangle.
-
How does a Rectangle DIN plug with an LED light work?
The DIN plug is where your electrical cable is terminated; has 3 terminals within it. There is a positive, negative & earth in DC or a neutral, live and earth in AC. This will then friction fit over the male terminals on your solenoid valve coil (there is also a screw through the center of the DIN plug which helps hold it tight on the coil). Included within the DIN plug is an LED light which when current is applied will turn on. This is a great way to visually check that there is power onto your valve.
-
Does the DIN plug include a coil?
No it does not include a coil, it is the DIN plug, gasket & screw only. These DIN plugs suit many different types of solenoid coils so they are not standard to just one size/type/brand of coil.
-
How do I know that this DIN Plug will suit my existing solenoid coil?
As long as the DIN plug fits the pin spacing of the existing coil (11mm pin spacing) and it is within the voltage range of the plug then it can be used. If it is used outside the designated voltage range the plug will still work just the LED light will either not come on or burn out.
-
How long will my Rectangle DIN Plug with LED last?
Like any DIN Plug, this depends upon the usage case, duty cycle and external environment of the valve. If your valve is cycling every second, 24 hours a day, then its life will be shorter than one which is used once a day. The electrical supply to your DIN Plug can also determine its life cycle, as over voltage and or voltage spikes can shorten it, the same as any electrical equipment. Also, the DIN plug cable gland should face down and a big enough drip loop on the cable to avoid moisture entering and damaging the coil and DIN plug.
-
What are typical uses of a Rectangle DIN Plug with an LED?
These are commonly used in smaller solenoid valves such as 5/2 pneumatic solenoid valves. These fit across many styles, sizes and brands of coils/valves. They also do have uses outside of solenoid valves such as in the automotive industry.
-
How do I wire and install my Rectangle DIN Plug with LED?
The good news is that our DIN plugs are not polarity conscious. This means that you can have DC positive and negative to either of the two terminals or Neutral and Live if using AC power. It is essential that power is never connected to the earth terminal. The earth terminal can only be for earth and is the large flat terminal on the plug. Also the termination block can be popped out of the DIN plug casing and rotated 90 degrees at a time so the plug can face any direction. This can be done with a small screwdriver on the flat slot that is on one side wall of the plug. The cable entry to the DIN plug should always face down if possible and allow a sufficient drip loop with your cable. This will help prevent water entering into the plug and maintain its IP65 rating.
-
