SKU: SGS

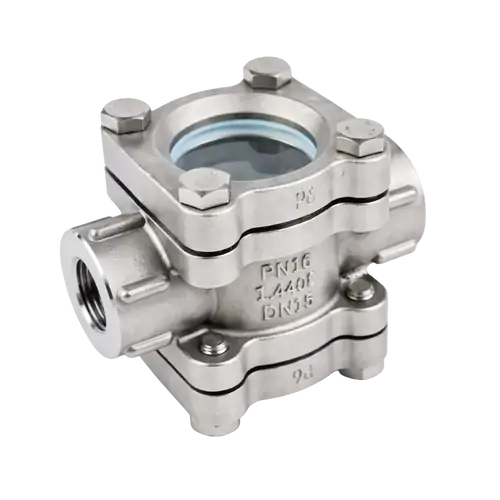

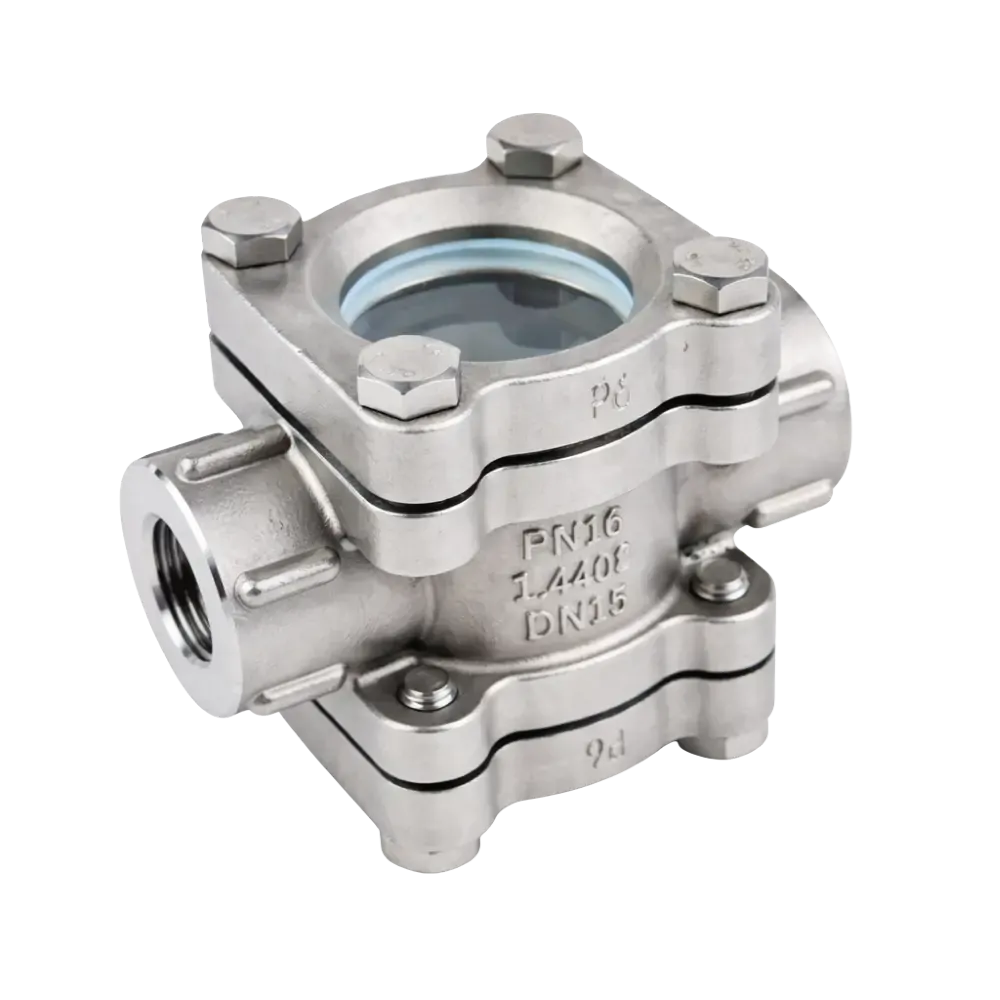

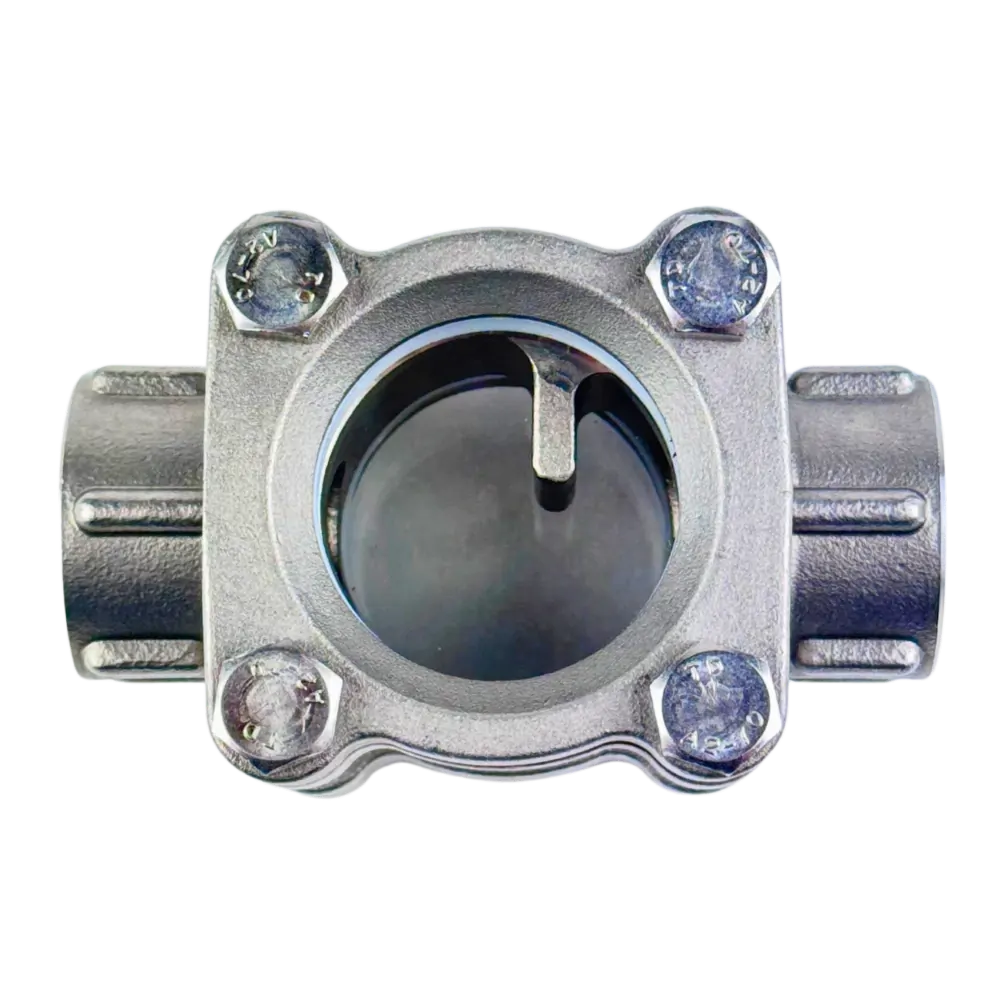

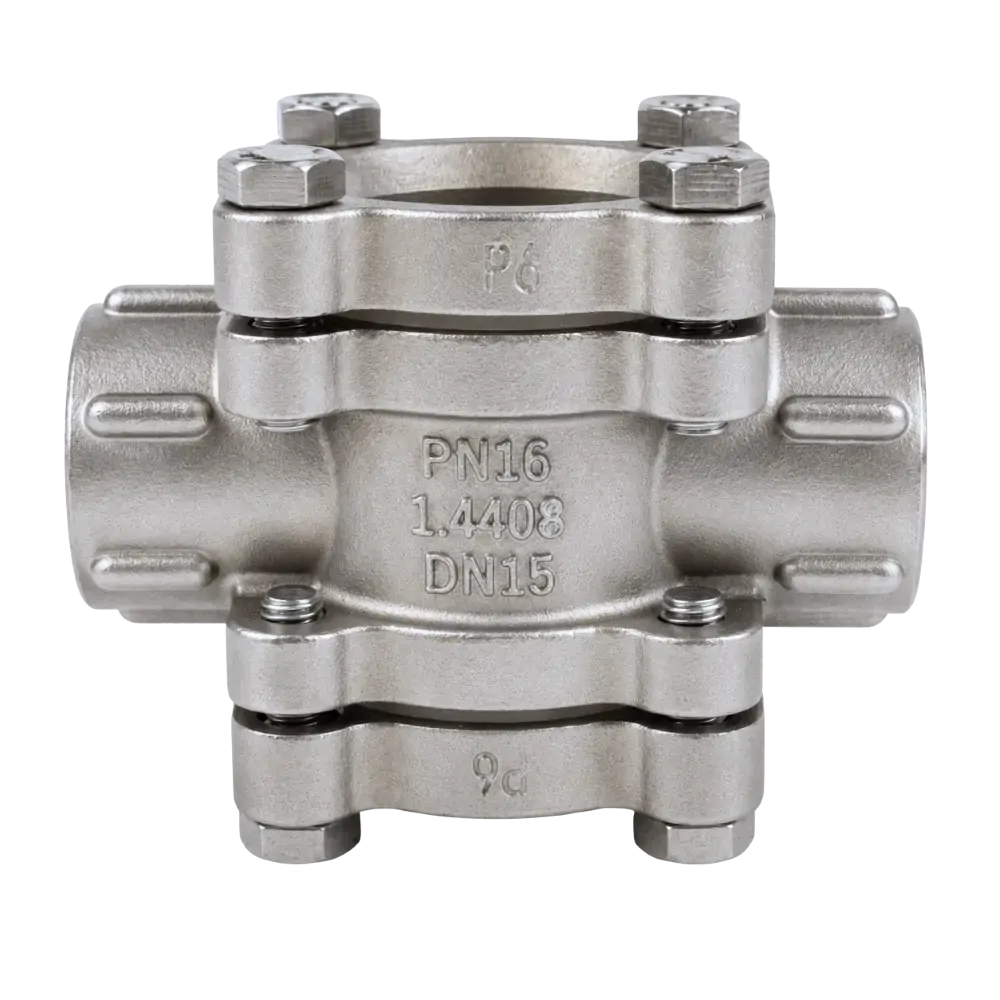

Stainless Steel Threaded Sight Glass

From $148.50

Inc GST
In Stock
Make an Enquiry

316 Stainless Steel BSP Threaded Sight Glass designed for visual inspection of flow in pipelines and process systems. Featuring a robust construction with a PTFE body gasket, this sight glass provides excellent sealing performance and chemical resistance across a wide range of applications. Suitable for temperatures from -25°C to 240°C and pressure ratings up to 16 Bar, ensuring reliable operation in demanding environments.

Model Size (BSP) DN (mm) Media Pressure Media Temperature
SGS-04 1/2" 15 0 to 16 BAR -25°C to 240°C
SGS-05 3/4" 20 0 to 16 BAR -25°C to 240°C
SGS-06 1" 25 0 to 16 BAR -25°C to 240°C
SGS-07 1-1/4" 32 0 to 16 BAR -25°C to 240°C
SGS-08 1-1/2" 40 0 to 16 BAR -25°C to 240°C
SGS-09 2" 50 0 to 16 BAR -25°C to 240°C

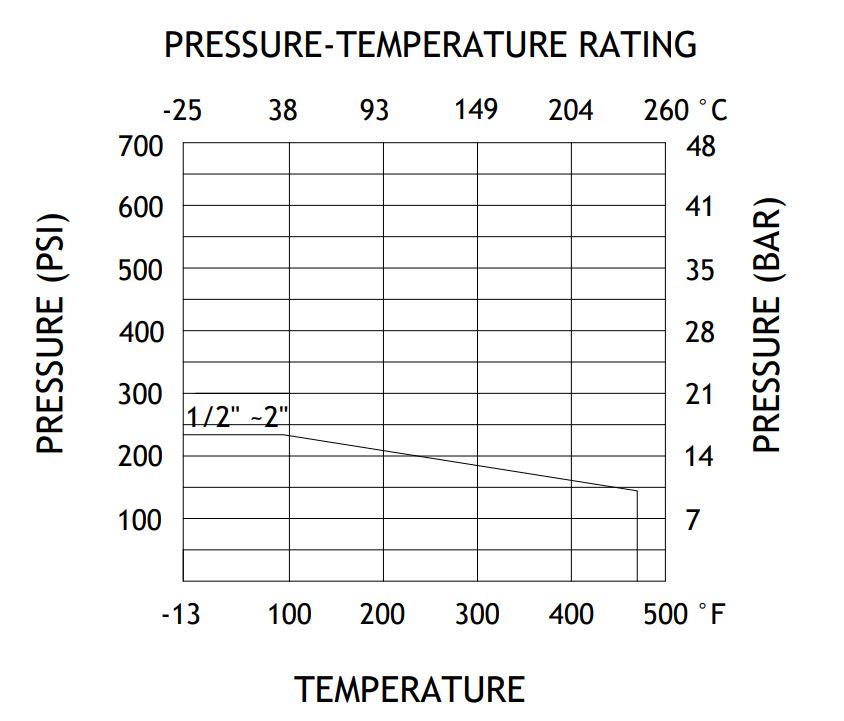

SIGHT GLASS PRESSURE TEMPERATURE RATING CHART

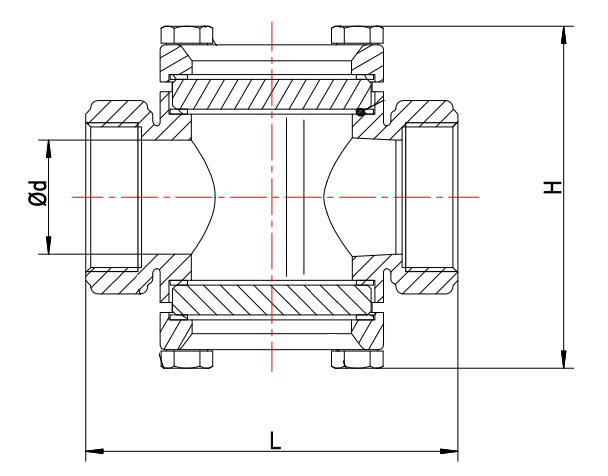

Model Size (BSP) d L H
SGS-04 1/2" 15 100 81
SGS-05 3/4" 20 100 81
SGS-06 1" 25 120 99
SGS-07 1-1/4" 32 120 99
SGS-08 1-1/2" 40 150 139
SGS-09 2" 46 150 139

All dimensions are in mm unless otherwise stated

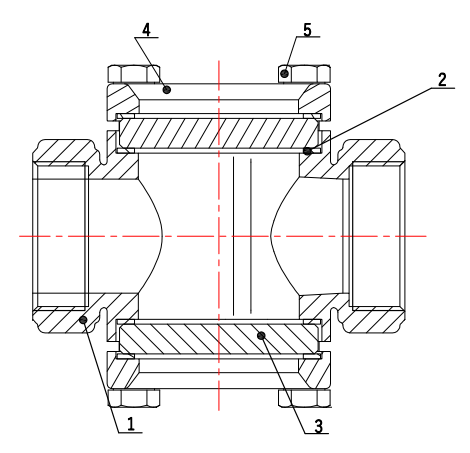

Number Name Material
1 Body CF8M
2 Body Gasket PTFE
3 Glass Borosilicate
4 Cap CF8M
5 Nut SS304

Size 1/2" to 2" BSP
Body 316 Stainless Steel
Body Gasket PTFE
Pressure Rating PN16
Temperature -25°C to 240°C


DATA SHEET
