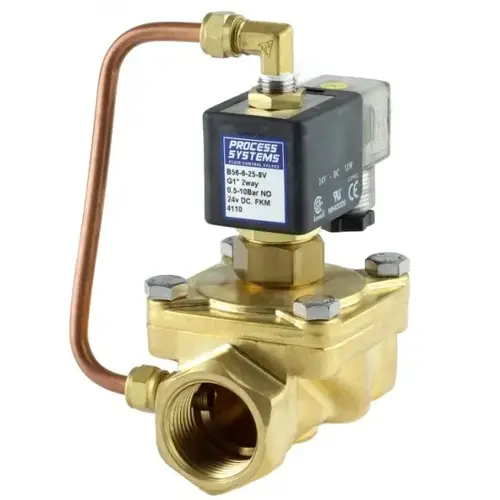

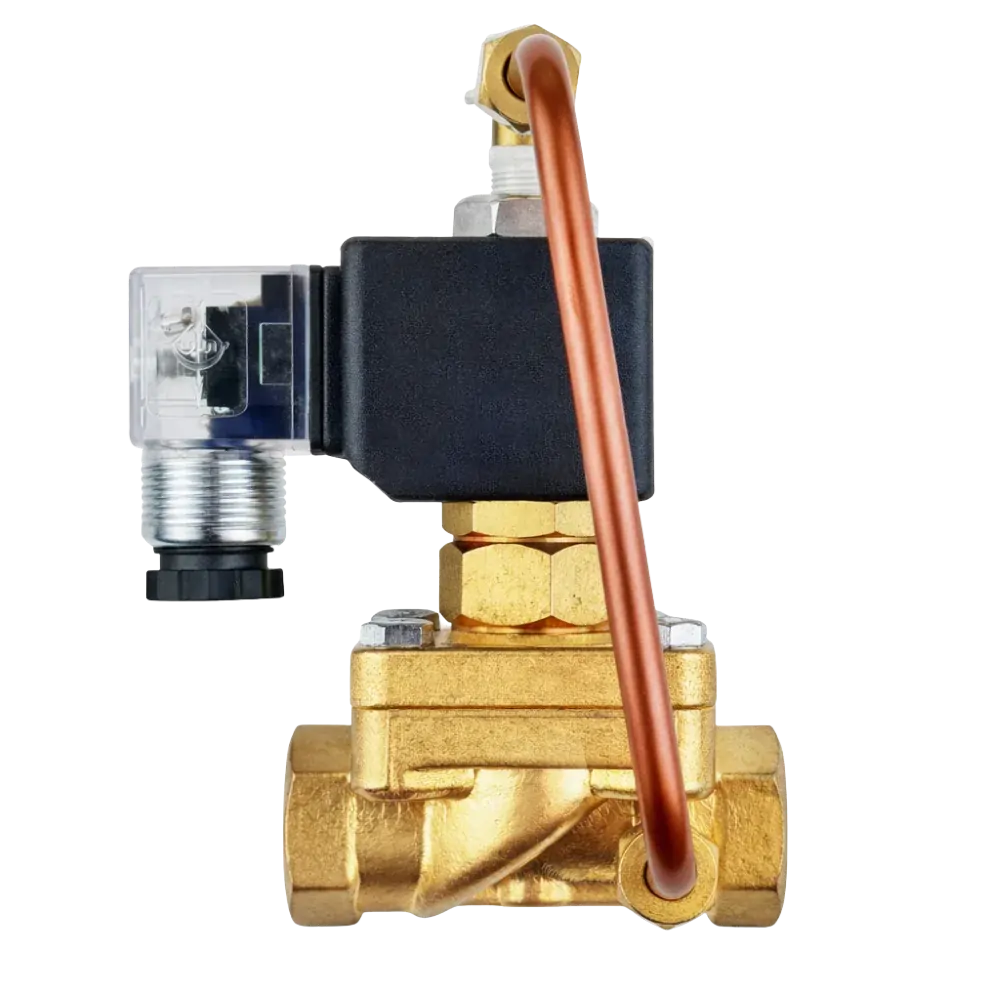

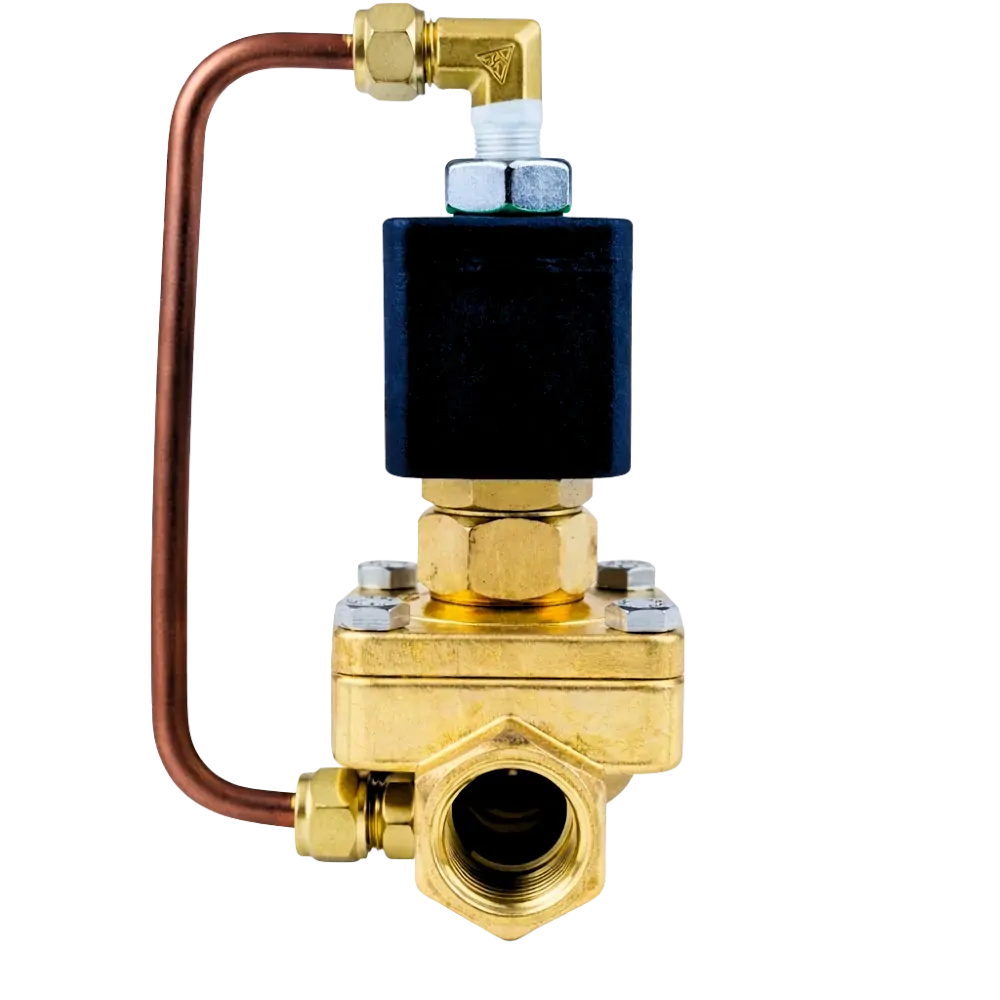

Brass Petrochemical Normally Open Differential Solenoid Valve

SKU: B56

$385.00
Inc GST In Stock
Free Shipping Australia Wide

Size
Voltage


DATA SHEET

A normally open valve with forged brass body and seat, 304 stainless steel operator. Comes standard with Viton seals (contact us for silicone, Neoprene or Nitrile). Liquids to 40 cst viscosity. Standard with coil and weatherproof IP65 LED illuminated plug. Typical applications include; hot water, petrochemical and general industry. Threads conform to ISO 7.1 Sealing Threads.

Model Port Size (BSP) Orifice ømm CV Media Pressure Media Temperature Repair Kit Coil Specifications
B56-4-15-*V 1/2 15 4.5 0.5 to 10 BAR -10°C to 100°C RK-B56-4-V SC-C1
15 Volt Amps
14.4 Watts
Class H Insulation
100% ED
B56-5-20-*V 3/4 20 9.3 0.5 to 10 BAR -10°C to 100°C RK-B56-5-V
B56-6-25-*V 1 25 13.2 0.5 to 10 BAR -10°C to 100°C RK-B56-6-V
B56-7-35-*V 1 ¼ 35 26 0.5 to 10 BAR -10°C to 100°C RK-B56-8-V
B56-8-35-*V 1 ½ 35 26 0.5 to 10 BAR -10°C to 100°C RK-B56-8-V
B56-9-50-*V 2 50 48 0.5 to 10 BAR -10°C to 100°C RK-B56-9-V

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

For Installation and Maintenance instructions please click here or find in our References section under Valve Installation and Maintenance for Solenoid Valves.

(B56)

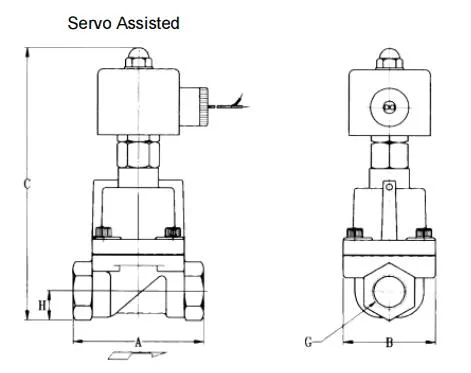

Brass Normally Open Differential Solenoid Valve

Model G (BSP) A B C F Weight Kg
B56-4-15-*V 1/2 75 75 129 14.5 1.4
B56-5-20-*V 3/4 85 85 140 18 1.8
B56-6-25-*V 1 100 100 146 23 1.9
B56-7-35-*V 1 ¼ 120 120 166 33 3.0
B56-8-35-*V 1 ½ 120 120 166 33 3.0
B56-9-50-*V 2 150 150 186 40.5 5.1

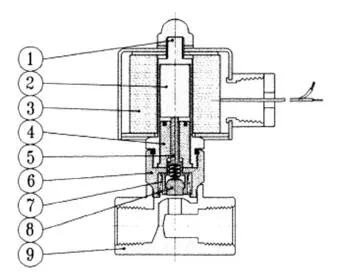

Brass Normally Open Solenoid Valve

Item Article Material
1 Solenoid Tube Stainless Steel
2 Slide Core Stainless Steel
3 Coil Brass Wire
4 Armature Core Stainless Steel
5 Operating Spindle Stainless Steel
6 Joint Sleeve Stainless Steel
7 Spring Stainless Steel
8 Seat Viton
9 Valve Body Brass

Size 3/8" to 2" BSP
Function Normally Open (power to close)
Valve Operation Servo Assisted
Body Forged Brass
Seat FKM
Pressure Range 0.5 to 10 BAR
Media Petrochemical
