Stainless Steel Swing Check Valve

Stainless Steel Swing Check Valve

SKU: SCS

$22.00
Inc GST In Stock
Make an Enquiry
Free Shipping Australia Wide
Size
Select Options

DATA SHEET

316 Stainless Steel swing check valve. Rated to 13 BAR (200 PSI) and used on a horizontal plane only. The 'gate' is pushed back allowing flow in one direction but will seal shut if it receives any flow/pressure from the other direction. Metal seat for temperatures up to 180°C. This swing check valve is suitable for a wide range of applications such as liquid, steam and chemical. Very low cracking pressure.

Model Size DN (mm) Media Pressure Media Temperature
SCS-04 ½” 15 0 to 13 BAR -25°C to 180°C
SCS-05 ¾” 20 0 to 13 BAR -25°C to 180°C
SCS-06 1” 25 0 to 13 BAR -25°C to 180°C
SCS-07 1 ¼” 32 0 to 13 BAR -25°C to 180°C
SCS-08 1 ½” 40 0 to 13 BAR -25°C to 180°C
SCS-09 2” 50 0 to 13 BAR -25°C to 180°C

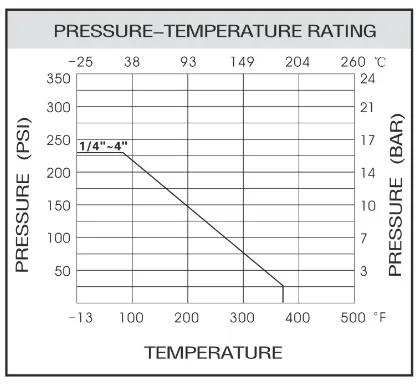

Stainless Steel Threaded Swing Check Valve Pressure vs Temperature

(SCS)

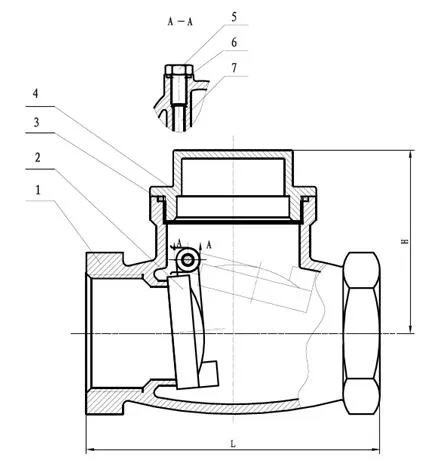

Stainless Steel Threaded Swing Check Valve

Model Size L H Weight (kg)
SCS-04 ½” 65 60 0.32
SCS-05 ¾” 82 77 0.52
SCS-06 1” 90 85 0.72
SCS-07 1 ¼” 105 94 1.06
SCS-08 1 ½” 121 113 1.30
SCS-09 2” 141 125 2.00

All dimensions in mm unless shown otherwise.

Threaded Stainless Steel Swing Check Valve

Number Name Material
1 Body CF8M
2 Disc CF8M
3 Gasket TEFLON
4 Cap CF8M
5 Disc Bolt 316
6 Bolt Washer TEFLON
7 Pin 316

Size 1/2" to 2" BSP
Body 316 Stainless Steel
Seat Metal
Pressure Range 0 to 13 BAR
Temperature 0 to 180°C
