Features:
Size 1/2" to 4" Socket Weld
Body 316 Stainless Steel 3 piece
Seat PTFE
Pressure 130 BAR
Temperature -20°C to 180°C
Actuation Double Acting Pneumatic
Fire Safe Approved
Two way three piece full bore 316 Stainless Steel ball valve with Socket Weld connections and a double acting pneumatic actuator. Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Direct Mounted anodised aluminium double acting pneumatic actuator. Typical applications include anywehre a fire safe certified socket weld ball valve is needed.

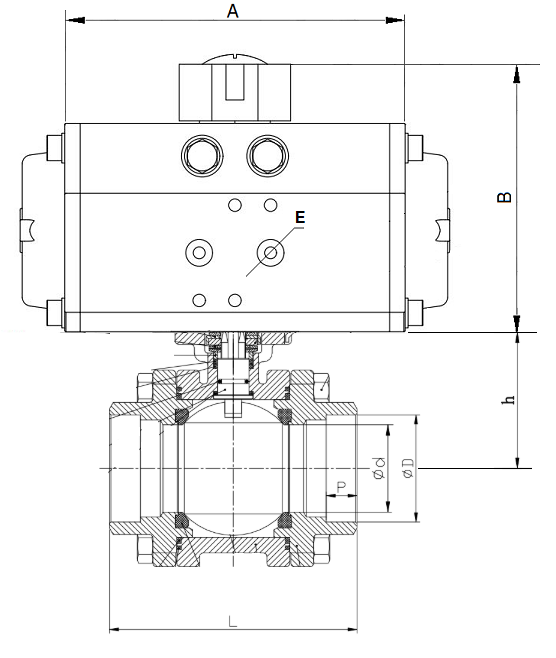

| Model | Size | Actuator | d | D | P | L | h | B | A | E |
|---|---|---|---|---|---|---|---|---|---|---|
| BLF4S-DA-RT | 1/2" | DA50 | 15 | 21.7 | 10 | 75 | 70 | 65 | 138 | 1/8" |
| BLF5S-DA-RT | 3/4" | DA50 | 20 | 27.3 | 13 | 80 | 78 | 65 | 138 | 1/8" |
| BLF6S-DA-RT | 1" | DA50 | 25 | 34.1 | 13 | 90 | 87 | 65 | 138 | 1/8" |
| BLF7S-DA-RT | 1-1/4" | DA63 | 32 | 42.8 | 13 | 110 | 98 | 100 | 162 | 1/8" |
| BLF8S-DA-RT | 1-1/2" | DA63 | 40 | 48.7 | 13 | 120 | 104 | 100 | 162 | 1/8" |
| BLF9S-DA-RT | 2" | DA75 | 50 | 61 | 16 | 140 | 112 | 117 | 208 | 1/8" |
| BLF10S-DA-RT | 2-1/2" | DA88 | 65 | 77 | 16 | 185 | 140 | 136 | 245 | 1/8" |
| BLF11S-DA-RT | 3" | DA100 | 80 | 90 | 16 | 205 | 153 | 142 | 266 | 1/4" |
| BLF12S-DA-RT | 4" | DA115 | 100 | 115.2 | 20 | 240 | 166 | 172 | 310 | 1/4" |
All dimensions are in mm unless otherwise stated

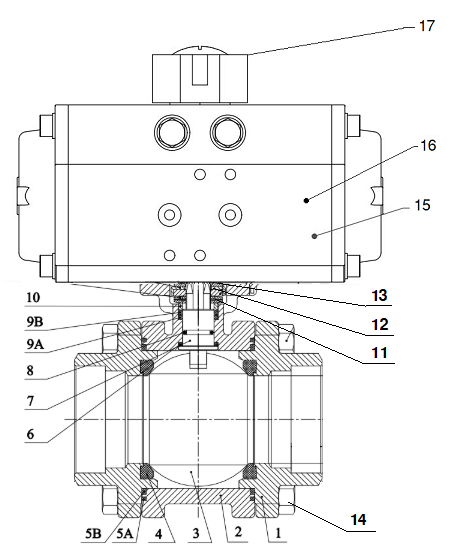

| Item | Part | Material |
|---|---|---|
| 1 | Cap | CF8M |
| 2 | Body | CF8M |
| 3 | Ball | SS316 |
| 4 | Ball Seat | Pure PTFE |
| 5A | Body Gasket A | Pure Graphite |
| 5B | Body Gasket B | Pure Graphite |
| 6 | Thrust Washer | Pure PTFE |
| 7 | Stem | SS316 |
| 8 | O-ring | Viton |
| 9A | Stem Packing A | Pure Graphite |
| Item | Part | Material |
|---|---|---|
| 9B | Stem Packing B | Pure Graphite |
| 10 | Gland | SS304 |
| 11 | Bellevlle Washer | SS301 |
| 12 | Nut Stopper | SS304 |
| 13 | Plate Washer | SS304 |
| 14 | Bolt | SS304 |
| 15 | Actuator Body | Aluminium |
| 16 | Actuator Seals | NBR70 |
| 17 | Actuator Position Indicator | Nylon |
Size 1/2" to 4" Socket Weld
Body 316 Stainless Steel 3 piece
Seat PTFE
Pressure 130 BAR
Temperature -20°C to 180°C
Actuation Double Acting Pneumatic
Fire Safe Approved
-
What is a Stainless Steel Socket Weld Double Acting Fire Safe Ball Valve?
A Stainless Steel Socket Weld Double Acting Fire Safe Ball Valve is constructed of three separate body pieces and held together by the use of stainless steel bolts at either end. It has a direct mounted anodised aluminium rack and pinion actuator fixed to the valve which conducts its 90 degree turn (open.close). Our design also has a longer neck to reduce thermal transfer and a direct mounting pad for mounting actuators without the use of a bracket and drive dog. They also have a pure teflon (PTFE) seat with pure graphite body gasket and a solid stainless steel ball. This allows higher pressures and temperatures up to 180 degrees Celsius making it suitable for steam applications (refer to the temperature vs pressure graph).
-
How does a Stainless Steel Socket Weld Double Acting Fire Safe Ball Valve work?
The Stainless Stainless Steel Socket Weld Double Acting Fire Safe Ball Valve works the same as any normal two way ball valve whereby the ball is rotated 90 degrees within the body of the valve which will either open or close the valve. The ball itself has a hole at either end which the media will flow through when it is open. When the valve is closed these holes are blocked off to the flow effectively isolating the media either side of the valve. The ball is turned by double acting rack & pinion actuator which is connected to a shaft which in turn is mated to the ball by a female slot. When it is operated by a handle (our handles are lockable) there is a stop pin which only allows you to operate the valve in a 90 degree turn (this will take you from open to close or vice versa). When the actuator is operated by a 5/2 valve (all double acting actuators need a 5/2 valve to operate, the most common we see is a 5/2 direct interfacing namur solenoid valve) the shaft will be rotated effectively turning the ball inside the cavity and switching it to its other state (either open or close). Extras such as limit switch boxes and positioners can also be mounted directly to the actuator.
-
How long will my Stainless Steel Socket Weld Double Acting Fire Safe Ball Valve last?
Like any valve this depends upon the usage case of your ball valve, its environment, media and how many times it is cycled. For instance if it is on a clean media, in a clean environment and not cycled regularly the life will be decades. If it is on a corrosive media and in a dry application with a high cycle rate the life will be much shorter. We conduct regular lab testing and 30,000 cycles is a reasonable life cycle depending upon the application. Being a 3 piece construction it is relatively easy to change the seats out when there wear which is the main perishable in the valve. The actuators life will depend upon how clean and dry the supply air is (the air that makes the actuator operate) however we regularly test these to over 800,000 cylces. Install a basic air filter if you are not sure about the quality of your air, we have pneumatic actuators that have been in operation for decades. The most common failure we see is due to dirty wet air been sent to the actuator.
-
How do I install a Stainless Steel Socket Weld Double Acting Fire Safe Ball Valve?
These have female Socket Weld ends so will be welded. It is best to remove the socket weld ends of the valve when welding to the pipe so it does not distort or damage the internals of the valve. Once it has cooled the ends can be reconnected to the valve. The double acting actuator can accommodate a namur solenoid valve which is a very popular configuration (the 5/2 control valve bolts directly onto the actuator with an o-ring face seal on the back of the valve) or just a standalone 5/2 valve. If you are using a stand alone 5/2 valve the air lines will need to be run from here into the ports on the actuator (remember the longer the run the slower the operation unless you use quick exhaust valves near the actuator).
-
What are typical uses of a Stainless Steel Socket Weld Double Acting Fire Safe Ball Valve?
As these ball valves are fire safe approved they are used anywhere a socket weld fire safe certified ball valve is needed. They can also be used in any other application as long as the media, temperature and pressure is compatible with the ball valve.
-
How long will my product take to get to me?
This depends upon where you are based and the freight method chosen. If the express freight option is selected it is usually next day delivery to metropolitan areas in Australia for under 5kg. If free freight has been selected it will go by road freight which can be anywhere from 1 to 10 days depending upon your location. It usually averages 3 days.
-
What warranty do I get?
All of our products come standard with a 12 month warranty. The good news is we have very strict quality controls and all valves leave our warehouse tested (full material and testing certificates to API598 are available) and inspected so there are rarely any issues. Also once your valve is in and operating it will most likely continue to do so for a very long time.
