SKU: SF72

Stainless Steel Uneven M&F Adaptor

From $4.40

Inc GST
In Stock
Make an Enquiry

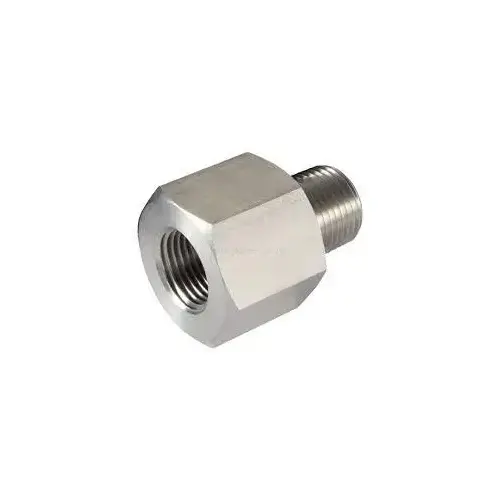

316 Stainless Steel threaded BSP Uneven M&F Adaptor. Great for use in a wide range of industrial applications. All threads are qualified and fittings are acid cleaned to ensure they are free from swarf and contaminants. 150 pound pressure rating.

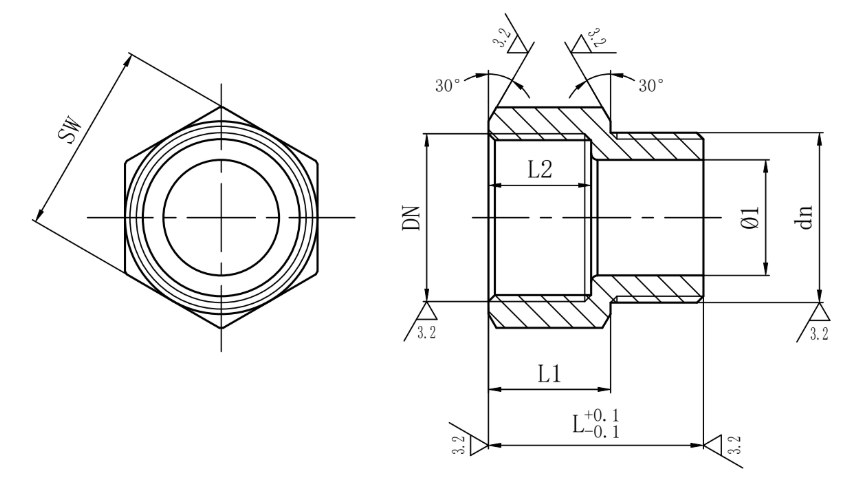

Stainless Steel M&F Adaptor Dimensions

Model Size ∅1 L L1 L2 SW
SF720201 1/4" x 1/8" 6.2 23 15 13 16
SF720302 3/4" x 1/4" 8.5 25.5 15 12.3 19.5
SF720402 1/2" x 1/4" 8.5 29 18.5 15.8 24
SF720403 1/2" x 3/8" 12 29.5 18.5 15.8 24

All dimensions in mm unless shown otherwise.

Size 1/8" to 1/2" BSP
Function M&F Adaptor
Body 316 Stainless Steel
