SKU: DD

Drive Dog SS

From $71.50

Inc GST
In Stock
Make an Enquiry

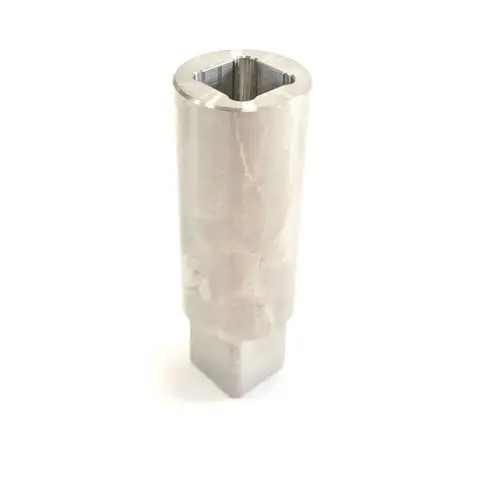

Drive dog machines out of solid stainless steel bar stock. Designed to interface between valve and actuator when a stand off bracket is used.

Model Male Drive Female Drive Height Suits Bracket
DD1 14mm 9mm 38mm BKT1
DD2 22mm 17mm 64mm BKT3
DD3 36mm 22mm 100mm BKT4
DD4 36mm 27mm 140mm BKT5
DD5 46mm 36mm 135mm BKT5


For mounting brackets to suit these drive dogs please click here

Model A B C ØD E F
DD1 14 9 38 24 16 15
DD2 22 17 64 32 20 20
DD3 36 22 100 50 40 38
DD4 36 27 140 50 40 55
DD5 46 36 135 68 48 60

Drive Size 9mm to 46mm
Height 38mm to 140mm
Body Stainless Steel
Function Drive dog for Bracket Mountings
