Features:
Size F04 to F16
Body 304 Stainless Steel
Function Adaptor Brackets for Valves/Actuators
304 Stainless Steel Interface Bracket typically used to mount actuators onto ball and butterfly valves where direct coupling is not an option or not possible. For a reference table (measurements) on the ISO mounting interfaces please click here.
(BKT)

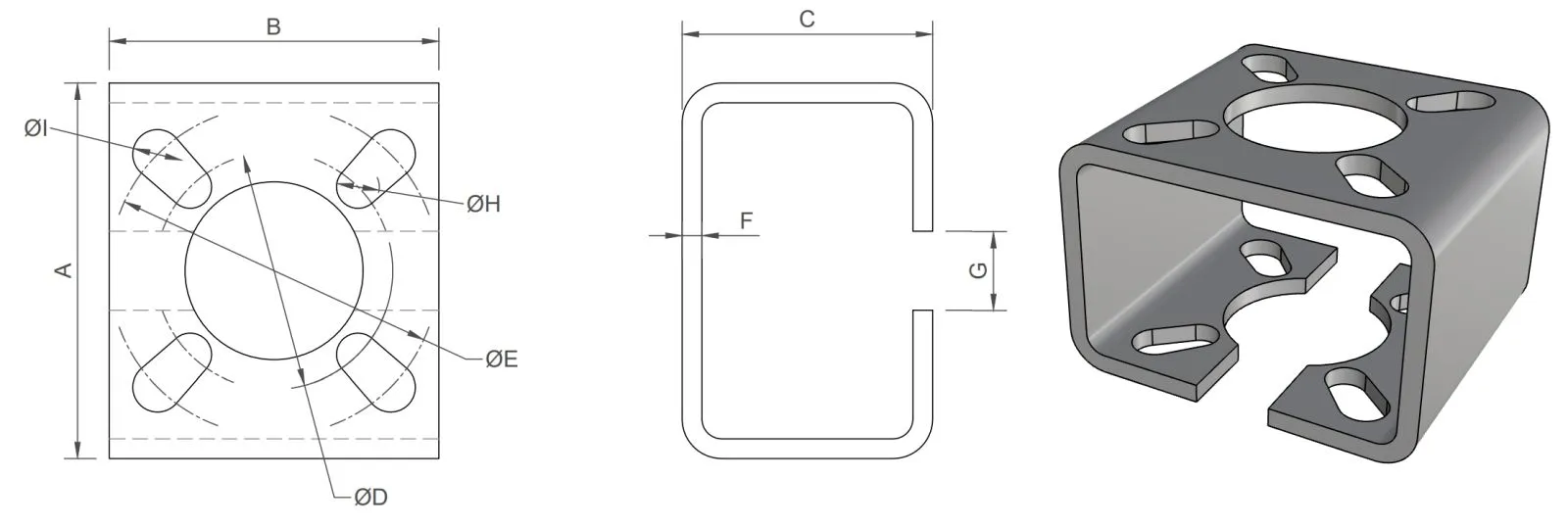

Model | A | B | C | ØD | ØE | F | G | ØH | ØI |
---|---|---|---|---|---|---|---|---|---|
BKT1 | 57 | 50 | 38 | 36 | 50 | 3 | 12 | 6.5 | 7.5 |
BKT2 | 74.5 | 65 | 40 | 42 | 70 | 3 | 16 | 6.5 | 9.5 |
BKT3 | 125 | 110 | 70 | 70 | 125 | 4 | 30 | 9.5 | 15 |
BKT4 | 165 | 150 | 100 | 102 | 140 | 6 | 45 | 12 | 18.5 |
BKT5 | 195 | 180 | 140 | 102 | 165 | 8 | 45 | 12 | 22 |
Size F04 to F16
Body 304 Stainless Steel
Function Adaptor Brackets for Valves/Actuators
