Features:
Size 1/2" to 4" BSP or NPT
Body 316 Stainless Steel 3 piece
Seat PTFE
Pressure 130 BAR
Temperature -20°C to 180°C
Actuation Double Acting Pneumatic
Fire Safe Approved
Two way three piece full bore 316 Stainless Steel ball valve with BSP threaded (or NPT) connections and a double acting pneumatic actuator. Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Direct Mounted anodised aluminium double acting pneumatic actuator. Typical applications include anywehre a fire safe certified threaded ball valve is needed. Choose between BSP (by far the most common thread standard) or NPT threads.

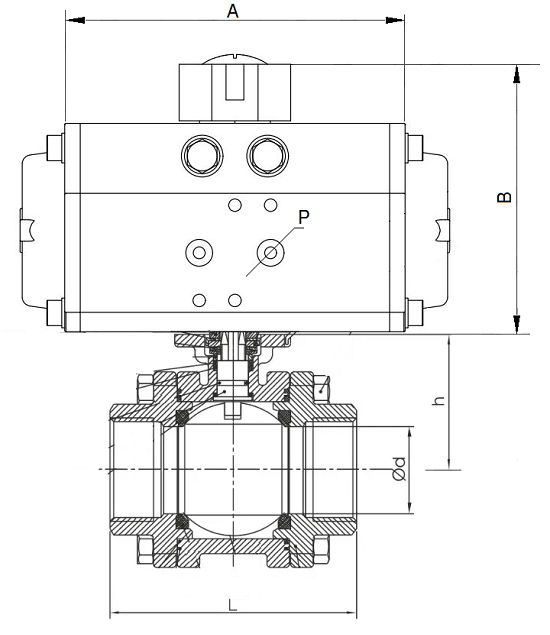

| Model | Size | Actuator | d | L | h | B | A | P |
|---|---|---|---|---|---|---|---|---|
| BLF4B-DA-RT | 1/2" | DA50 | 15 | 75 | 70 | 65 | 138 | 1/8" |
| BLF5B-DA-RT | 3/4" | DA50 | 20 | 80 | 78 | 65 | 138 | 1/8" |
| BLF6B-DA-RT | 1" | DA50 | 25 | 90 | 87 | 65 | 138 | 1/8" |
| BLF7B-DA-RT | 1-1/4" | DA63 | 32 | 110 | 98 | 100 | 162 | 1/8" |
| BLF8B-DA-RT | 1-1/2" | DA63 | 40 | 120 | 104 | 100 | 162 | 1/8" |
| BLF9B-DA-RT | 2" | DA75 | 50 | 140 | 112 | 117 | 208 | 1/8" |
| BLF10B-DA-RT | 2-1/2" | DA88 | 65 | 185 | 140 | 136 | 245 | 1/8" |
| BLF11B-DA-RT | 3" | DA100 | 80 | 205 | 153 | 142 | 266 | 1/4" |
| BLF12B-DA-RT | 4" | DA115 | 100 | 240 | 166 | 172 | 310 | 1/4" |

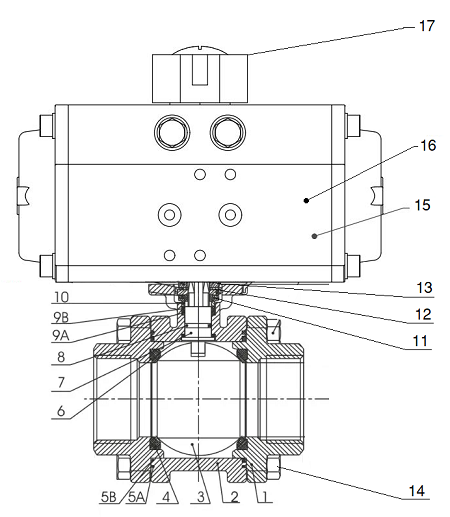

| Item | Part | Material |
|---|---|---|
| 1 | Cap | CF8M |
| 2 | Body | CF8M |
| 3 | Ball | SS316 |
| 4 | Ball Seat | Pure PTFE |
| 5A | Body Gasket A | Pure Graphite |
| 5B | Body Gasket B | Pure Graphite |
| 6 | Thrust Washer | Pure PTFE |
| 7 | Stem | SS316 |
| 8 | O-ring | Viton |
| 9A | Stem Packing A | Pure Graphite |
| Item | Part | Material |
|---|---|---|
| 9B | Stem Packing B | Pure Graphite |
| 10 | Gland | SS304 |
| 11 | Bellevlle Washer | SS301 |
| 12 | Nut Stopper | SS304 |
| 13 | Plate Washer | SS304 |
| 14 | Bolt | SS304 |
| 15 | Actuator Body | Aluminium |
| 16 | Actuator Seals | NBR70 |
| 17 | Actuator Position Indicator | Nylon |
Size 1/2" to 4" BSP or NPT
Body 316 Stainless Steel 3 piece
Seat PTFE
Pressure 130 BAR
Temperature -20°C to 180°C
Actuation Double Acting Pneumatic
Fire Safe Approved
-
What is a Stainless Steel Double Acting Threaded Fire Safe Ball Valve?
A stainless steel double acting threaded fire safe ball valve is constructed of three separate body pieces and held together by the use of stainless steel bolts at either end. It has a direct mounted anodised aluminium rack and pinion actuator fixed to the valve which conducts its 90 degree turn (open.close). This kind of ball valve design makes it easy to remove from the line as you do not need to unscrew its ends from the pipework to maintain the valve. It is also very easy to change the valve seats as you can access them directly when the ends are removed making them ideal for applications where the seat is worn regularly. Our design also has a longer neck to reduce thermal transfer and a direct mounting pad for mounting actuators without the use of a bracket and drive dog. They also have a pure teflon (PTFE) seat with pure graphite body gasket and a solid stainless steel ball. This allows higher pressures and temperatures up to 180 degrees Celsius making it suitable for steam applications (refer to the temperature vs pressure graph).
-
How does a Stainless Steel Double Acting Threaded Fire Safe Ball Valve work?
The Stainless Steel Double Acting Threaded Fire Safe Ball Valve works the same as any normal two way ball valve whereby the ball is rotated 90 degrees within the body of the valve which will either open or close the valve. The ball itself has a hole at either end which the media will flow through when it is open. When the valve is closed these holes are blocked off to the flow effectively isolating the media either side of the valve. The ball is turned by double acting rack & pinion actuator which is connected to a shaft which in turn is mated to the ball by a female slot. When it is operated by a handle (our handles are lockable) there is a stop pin which only allows you to operate the valve in a 90 degree turn (this will take you from open to close or vice versa). When the actuator is operated by a 5/2 valve (all double acting actuators need a 5/2 valve to operate, the most common we see is a 5/2 direct interfacing namur solenoid valve) the shaft will be rotated effectively turning the ball inside the cavity and switching it to its other state (either open or close). Extras such as limit switch boxes and positioners can also be mounted directly to the actuator.
-
How long will my Stainless Steel Double Acting Threaded Fire Safe Ball Valve last?
Like any valve this depends upon the usage case of your ball valve, its environment, media and how many times it is cycled. For instance if it is on a clean media, in a clean environment and not cycled regularly the life will be decades. If it is on a corrosive media and in a dry application with a high cycle rate the life will be much shorter. We conduct regular lab testing and 30,000 cycles is a reasonable life cycle depending upon the application. Being a 3 piece construction it is relatively easy to change the seats out when there wear which is the main perishable in the valve. The actuators life will depend upon how clean and dry the supply air is (the air that makes the actuator operate) however we regularly test these to over 800,000 cylces. Install a basic air filter if you are not sure about the quality of your air, we have pneumatic actuators that have been in operation for decades. The most common failure we see is due to dirty wet air been sent to the actuator.
-
How do I install a Stainless Steel Double Acting Threaded Fire Safe Ball Valve?
These have female paralell BSP (or NPT) threaded ends so it is best to put a male tapered BSP (or NPT) fitting into the valve ends. Thread tape or a sealant should be used to help the seal and also if dissimilar metals are used it will reduce dissimilar metal corrosion. The tie rods can be undone if needed and the ends installed by themselves but this is usually unnecessary and you would have to measure the exact face to face before your installation. The double acting actuator can accommodate a namur solenoid valve which is a very popular configuration (the 5/2 control valve bolts directly onto the actuator with an o-ring face seal on the back of the valve) or just a standalone 5/2 valve. If you are using a stand alone 5/2 valve the air lines will need to be run from here into the ports on the actuator (remember the longer the run the slower the operation unless you use quick exhaust valves near the actuator).
-
What are typical uses of a Stainless Steel Double Acting Threaded Fire Safe Ball Valve?
As these ball valves are fire safe approved they are used anywhere a threaded fire safe certified ball valve is needed. They can also be used in any other application as long as the media, temperature and pressure is compatible with the ball valve.
-
