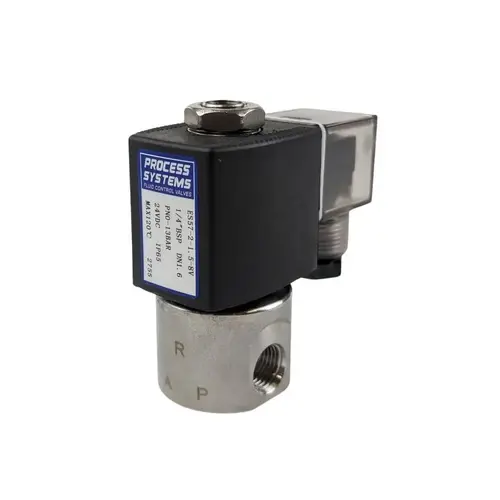

Stainless Steel 3 Way Direct Acting Normally Closed Solenoid Valve

SKU: ES57

$82.50
Inc GST In Stock
Free Shipping Australia Wide

Size
Voltage


DATA SHEET

A three way normally closed (power to open) direct acting solenoid valve with a 304 Stainless Steel machined body and stainless steel operator. Suitable for low head and zero head applications with a Viton (FKM) seat. Liquids to 50 centistoke viscosity. Standard coil is weatherproof to IP65 and has LED illuminated plug. Typical Applications include pilot valve, tank drain, iodine dosing for dairies, chemicals and other general industry. Threads conform to ISO7.1 sealing threads.

Model Port Size (BSP) Orifice ømm CV Media Pressure Media Temperature Coil Specifications
ES57-1-1-*V 1/8 1 0.05 0 to 16 BAR -10°C to 95°C SC-N14
21 Watts
20 Volt Amps
ES57-2-2-*V 1/4 2 0.1 0 to 9 BAR -10°C to 95°C

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

Please note that the exhaust port in both models is 1/8" BSP male thread on the operator.

For Installation and Maintenance instructions please click here or find in our References section under Valve Installation and Maintenance for Solenoid Valves.

(ES57)

3 way normally closed stainless steel solenoid valve

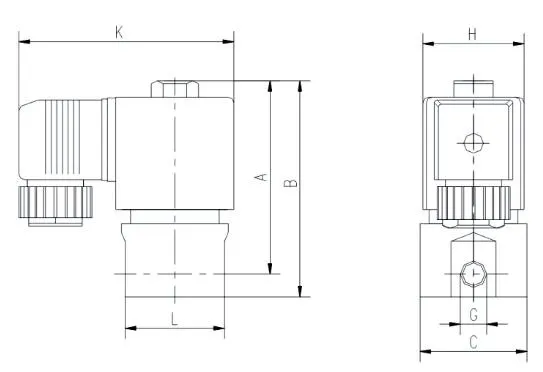

Model G L K A B C H Weight Kg
ES57-1-1-*V 1/8 34 76 72 80 Ø38 36 0.8
ES57-2-2-*V 1/4 34 76 72 80 Ø38 36 0.8

All dimensions in mm unless shown otherwise.

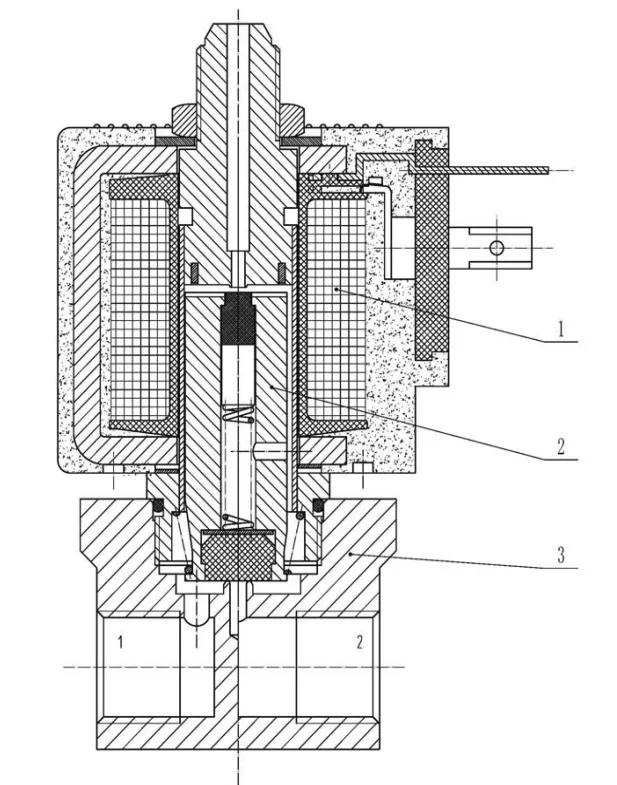

Three way Normally Closed Stainless Steel Solenoid Valve

Number Item Material
1 Coil Epoxy
2 Armature Martensitic stainless steel
3 Valve Body 304 Stainless Steel

Size 1/8" to 1/4" BSP only
Function 3 way normally Closed (power to open)
Valve Operation Direct Acting
Body 304 Stainless Steel
Seat FKM
Pressure Range 0 to 16 BAR (depend on size)
Media Petrochemical, Air, Fluid
