HIgh Pressure 3 Way 2 position Normally Closed Solenoid Valve

HIgh Pressure 3 Way 2 position Normally Closed Solenoid Valve

SKU: A67

Aluminium high pressure 3/2 solenoid valve

$143.00
Inc GST In Stock
Make an Enquiry
Free Shipping Australia Wide
Size
Voltage
Select Options

DATA SHEET

A high pressure aluminium 3 way 2 position normally closed solenoid valve for air and other inert gases. With a 1.5 to 24 Bar pressure range it is well suited for high pressure and high flow air applications. Features Nitrile seats, aluminium body and reinforced plastic end cap it can handle media up to 50°C. Typical Applications Include: High pressure blow moulding machines and Air Blasting. Threads conform to ISO 7.1 Sealing Threads.

Specification A67-2-8-*NM A67-4-15-*N
Port Size (BSPP) 1/4” 1/2”
Nominal Diameter 8mm 15mm
Applicable Medium Air & Inert Gases
Function Normally Closed
Medium Temperature -5 to 50°C
Pressure Range 1.5 to 24 BAR
Manual Override Yes No
Body Aluminium
Seat NBR
Lubrication Not Required
Coil SC-N14, 21 Watts

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

(A67)

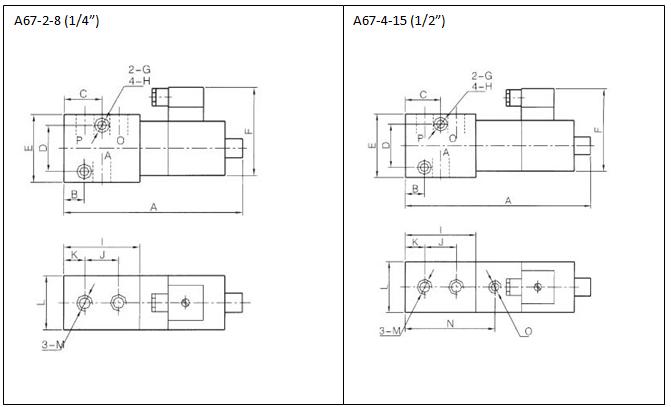

3 way 2 position normally closed solenoid valve

Model A B C D E F G H I J K L
A67-2-8-*NM 145 15 28 34 50 65 6.5 11 56 25 15.5 40
A67-4-15-*NM 157 15.5 34 32.5 40 60 65 6.5 65 60

All dimensions in mm unless specified otherwise.

Size 1/4" to 1/2" BSP
Function Normally Closed (power to open)
Valve Operation Servo Assisted
Body Extruded Aluminium
Seat NBR
Pressure Range 0.5 to 24 BAR
Media Air

We Also Recommend


Male Straight Connector Push Fit

SKU: YPC

Male Straight Connector Push Fit

From $1.76

More Info
Male Swivel Elbow Push Fit

SKU: YPL

Male Swivel Elbow Push Fit

From $2.20

More Info

Others Also Bought


5 Way 2 position double solenoid valve

SKU: A610

5 Way 2 position double solenoid valve

From $170.50

More Info
5 Way 3 position double solenoid valve closed centers

SKU: A611

5 Way 3 position double solenoid valve closed cent

From $319.00

More Info
5 Way 3 position double solenoid valve open centers

SKU: A612

5 Way 3 position double solenoid valve open center

From $346.50

More Info
5 Way 2 position solenoid Spring valve

SKU: A69

5 Way 2 position solenoid Spring valve

From $93.50

More Info

More From This Category


Brass High Pressure 80 BAR Normally Closed Solenoid Valve

SKU: B75HH

Brass High Pressure 80 BAR Normally Closed Solenoi

From $764.50

More Info
3PIN DIN + FLEX 1.5M 240Vac

SKU: FLEX1.5M

3PIN DIN + FLEX 1.5M 240Vac

$49.50

More Info
Stainless Steel General Purpose Normally Open Solenoid Valve

SKU: S36

Stainless Steel General Purpose Normally Open Sole

From $170.50

More Info
Brass Steam & Hi Temperature Normally Closed Direct Acting Solenoid Valve

SKU: B75D

Brass Steam & Hi Temperature Normally Closed Direc

From $110.00

More Info

A67

HIgh Pressure 3 Way 2 position Normally Closed Solenoid Valve

Features:

Size 1/4" to 1/2" BSP
Function Normally Closed (power to open)
Valve Operation Servo Assisted
Body Extruded Aluminium
Seat NBR
Pressure Range 0.5 to 24 BAR
Media Air

Description:

A high pressure aluminium 3 way 2 position normally closed solenoid valve for air and other inert gases. With a 1.5 to 24 Bar pressure range it is well suited for high pressure and high flow air applications. Features Nitrile seats, aluminium body and reinforced plastic end cap it can handle media up to 50°C. Typical Applications Include: High pressure blow moulding machines and Air Blasting. Threads conform to ISO 7.1 Sealing Threads.

Specification A67-2-8-*NM A67-4-15-*N
Port Size (BSPP) 1/4” 1/2”
Nominal Diameter 8mm 15mm
Applicable Medium Air & Inert Gases
Function Normally Closed
Medium Temperature -5 to 50°C
Pressure Range 1.5 to 24 BAR
Manual Override Yes No
Body Aluminium
Seat NBR
Lubrication Not Required
Coil SC-N14, 21 Watts

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

.

HIgh Pressure 3 Way 2 position Normally Closed Solenoid Valve

A67

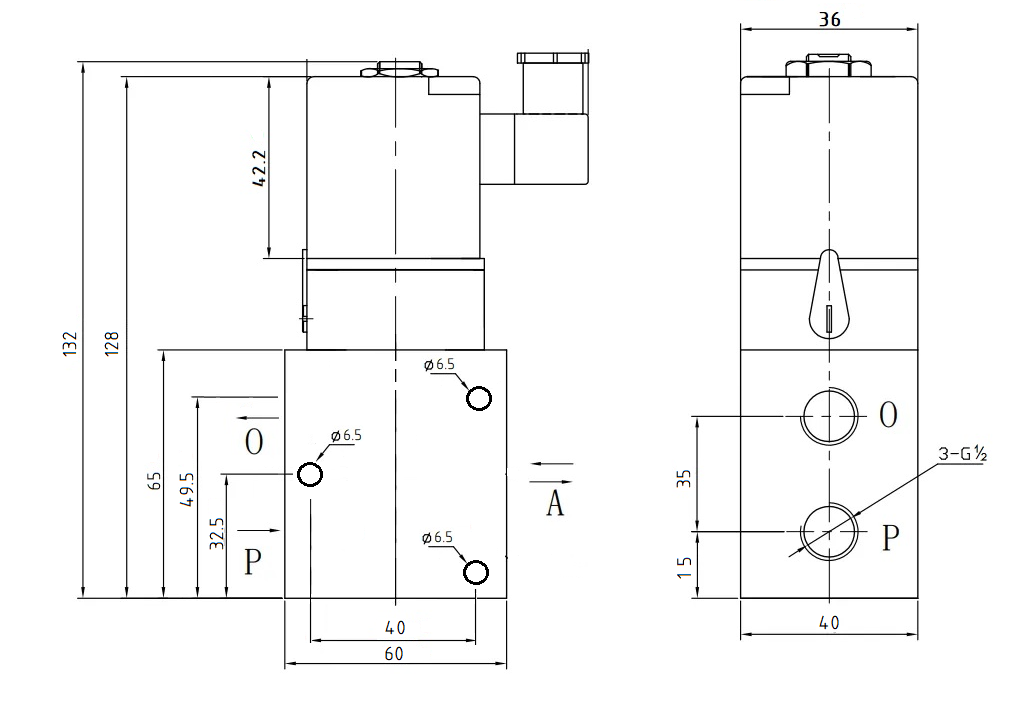

Dimensions:
