Features:
Tube Size 1/4" to 1/2"
Function Bulkhead Union Push Fit

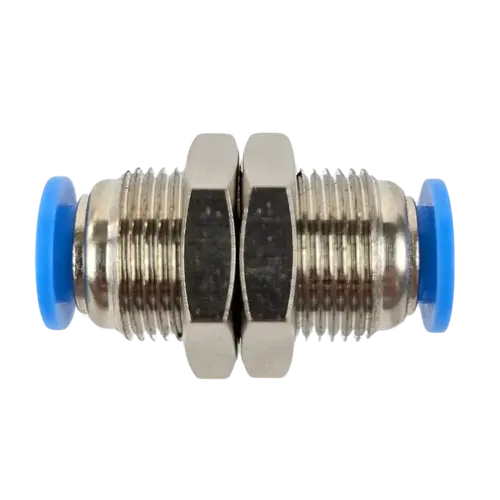

Designed to run cables through bulkheads/panels. Two push fit connector ends with counter rotating tightening nuts.
(IPM)
Model | Tube | A | B | C | M | H |
---|---|---|---|---|---|---|
IPM1/4 | 1/4" | 12.5 | 31.2 | 10.6 | M14x1 | 17 |
IPM5/16 | 5/16" | 12.5 | 34.9 | 12 | M16x1 | 19 |
IPM3/8 | 3/8" | 13.5 | 40 | 12 | M20x1 | 24 |
IPM1/2 | 1/2" | 19 | 45 | 13.5 | M20x1 | 26 |
All dimensions in mm unless shown otherwise.
This threaded elbow is only representative of the construction.
