SKU: IPE
From $1.98

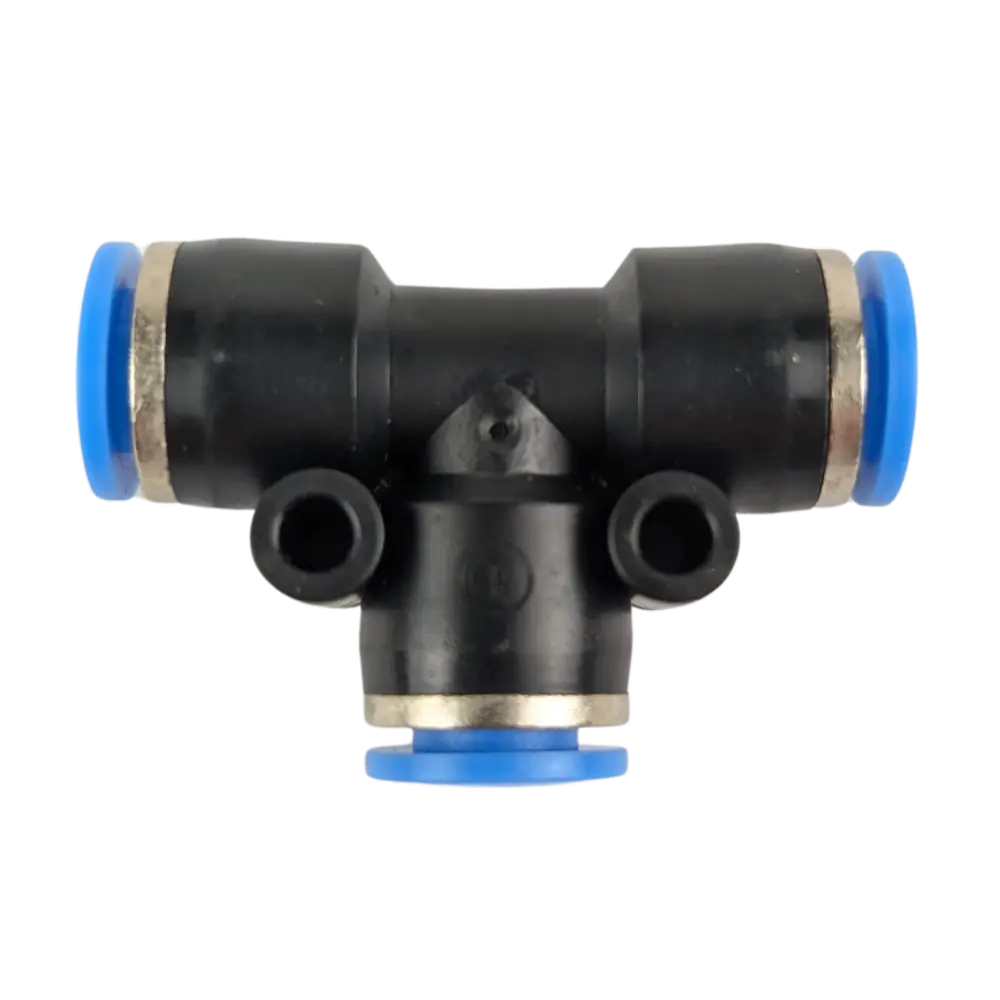

Inc GSTPush Fit Tee joiner.
| Material | Nickel Plated Brass / UV Black Plastic, Nitrile O-ring |
|---|---|
| Pressure Range | 0 to 8 BAR |
| Max Temperature | 60°C |

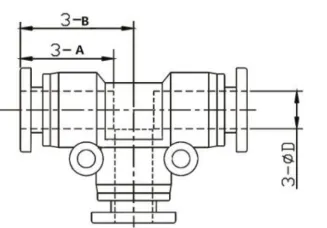

| Model | Tube | A | B |
|---|---|---|---|
| IPE1/4 | 1/4" | 15.9 | 19.7 |
| IPE5/16 | 5/16" | 17.8 | 22.5 |
| IPE3/8 | 3/8" | 21 | 27.6 |
| IPE1/2 | 1/2" | 22.6 | 29.3 |
All dimensions in mm unless shown otherwise.
This threaded elbow is only representative of the construction.
.png)
Tube Size 1/4" to 1/2"
Function Tee Joiner Push Fit
Tube Size 1/4" to 1/2"
Function Tee Joiner Push Fit
Push Fit Tee joiner.
| Material | Nickel Plated Brass / UV Black Plastic, Nitrile O-ring |
|---|---|
| Pressure Range | 0 to 8 BAR |
| Max Temperature | 60°C |
| Model | Tube | A | B |
|---|---|---|---|
| IPE1/4 | 1/4" | 15.9 | 19.7 |
| IPE5/16 | 5/16" | 17.8 | 22.5 |
| IPE3/8 | 3/8" | 21 | 27.6 |
| IPE1/2 | 1/2" | 22.6 | 29.3 |
All dimensions in mm unless shown otherwise.
This threaded elbow is only representative of the construction.
