Features:
Size 1/2" to 4" BSP
Body 316 Stainless Steel 3 piece
Seat 50/50 Stainless Steel & PTFE
Pressure 63 BAR
Temperature -20°C to 220°C
Actuation Double Acting Pneumatic with stand off bracket

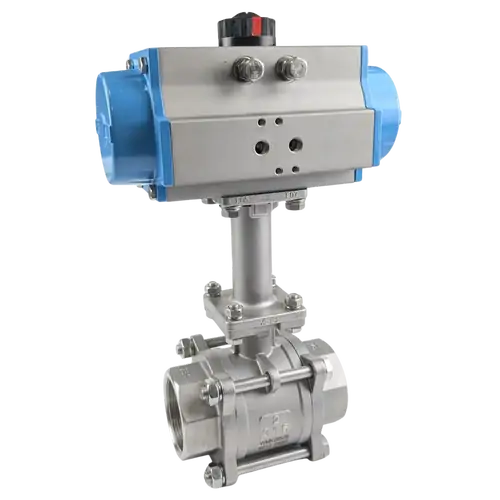

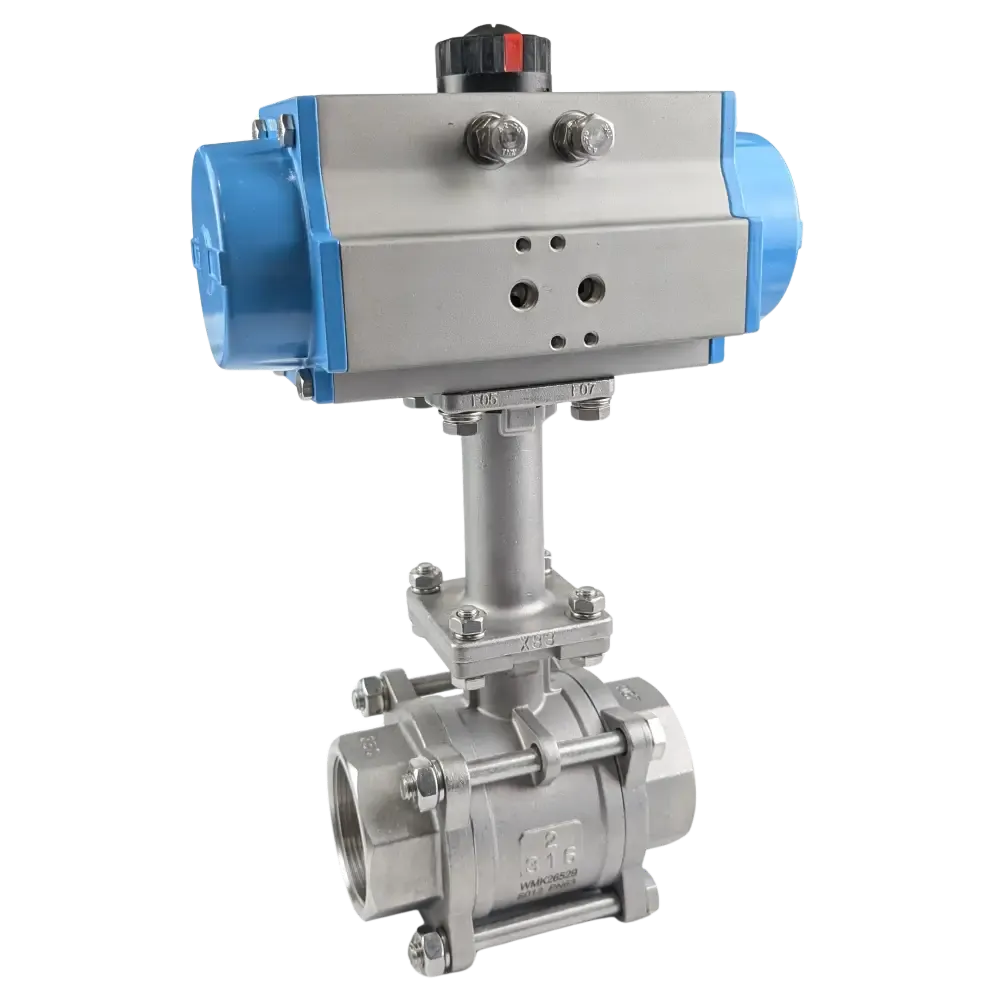

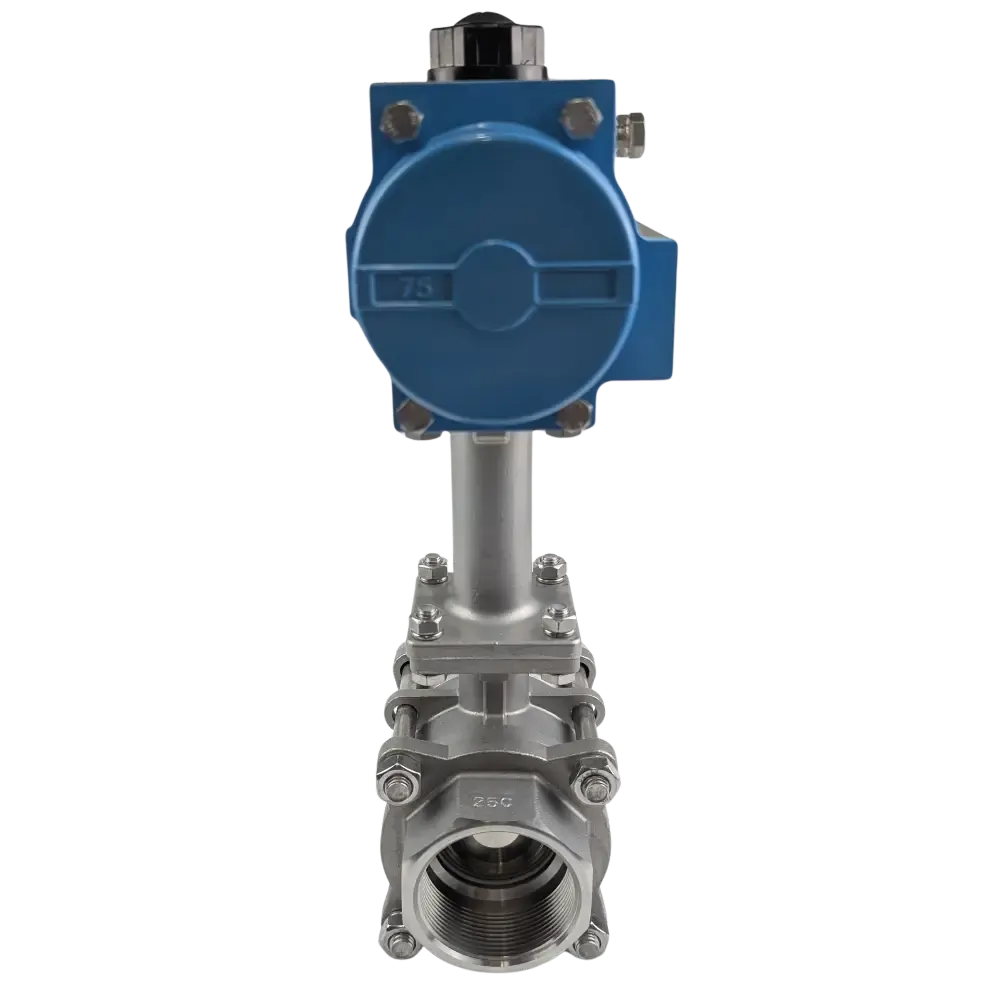

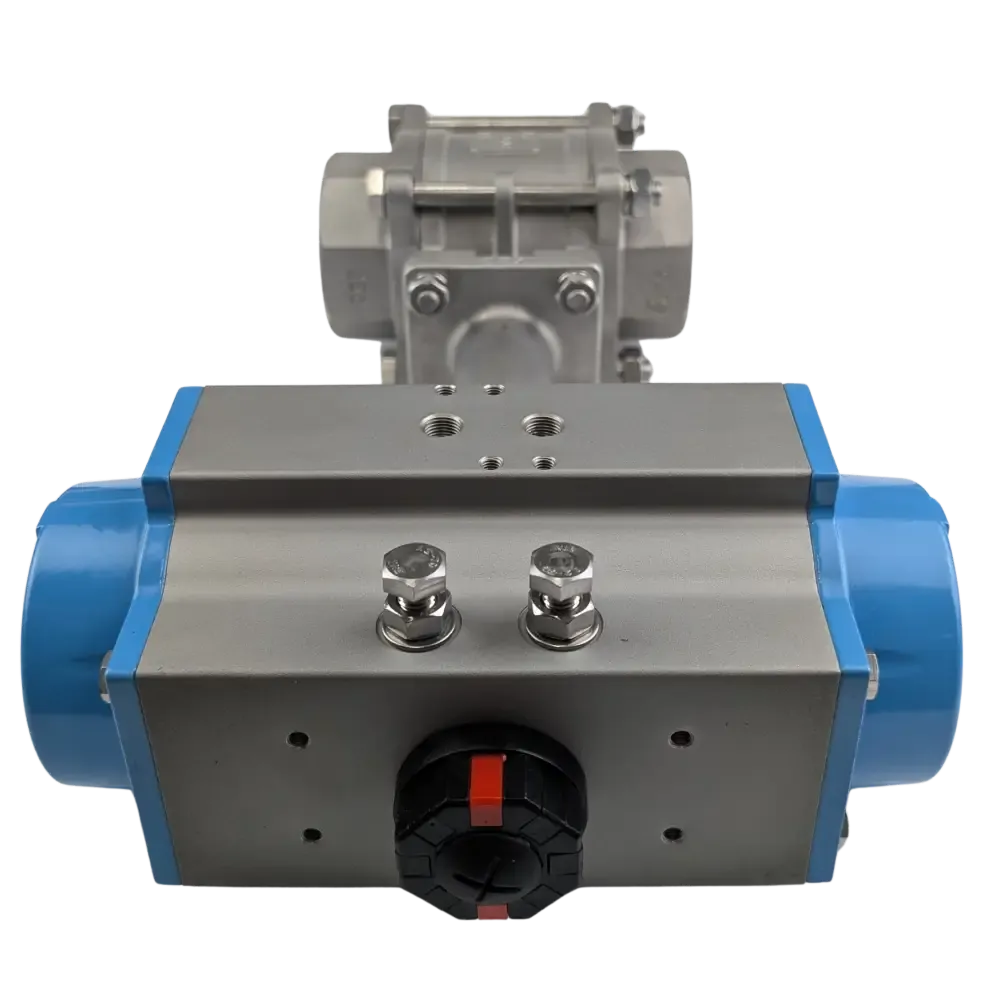

High temperature 3 piece full bore 316 Stainless Steel ball valve with BSP threaded connections and a double acting pneumatic actuator on a stand off bracket. Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Reinforced 50/50 stainless steel & PTFE seats for higher temperatures. Anodised aluminium double acting pneumatic actuator on pad extension. These are typically used in steam and high temperature applications where standard reinforced PTFE seats are not suitable. Length to DIN3202-M3 and Threads to ISO7/1.
Also available in NPT, socket weld, butt weld & triclover, please contact us.
*Refer to Pressure Temperature Rating chart below
Model | Size | Actuator | d | L | h | A | B | P |
---|---|---|---|---|---|---|---|---|
BLSHT4B-DA-ST | 1/2" | DA50 | 15 | 75 | 142 | 138 | 90 | 1/8” |
BLSHT5B-DA-ST | 3/4" | DA50 | 20 | 80 | 150 | 138 | 90 | 1/8” |
BLSHT6B-DA-ST | 1" | DA50 | 25 | 90 | 158 | 138 | 90 | 1/8” |
BLSHT7B-DA-ST | 1-1/4" | DA63 | 32 | 110 | 164 | 162 | 100 | 1/8” |
BLSHT8B-DA-ST | 1-1/2" | DA63 | 40 | 120 | 169.5 | 162 | 100 | 1/8” |
BLSHT9B-DA-ST | 2" | DA75 | 50 | 140 | 178 | 208 | 117 | 1/8” |
BLSHT10B-DA-ST | 2-1/2" | DA88 | 65 | 185 | 200 | 245 | 136 | 1/8” |
BLSHT11B-DA-ST | 3" | DA100 | 80 | 205 | 212.5 | 266 | 142 | 1/4” |
BLSHT12B-DA-ST | 4" | DA115 | 100 | 240 | 225.5 | 310 | 172 | 1/4” |
All dimensions in mm unless shown otherwise.
Item | Description | Material |
---|---|---|
1 | Body | CF8M |
2 | Ball | SS316 |
3 | Ball Seat | PTFE + 50%316SS |
4 | Thrust Washer | PTFE + 50%316SS |
5 | Body Gasket | PTFE + 50%316SS |
6 | O-Ring | FFKM |
7 | Stem Packing | PTFE + 50%316SS |
Item | Description | Material |
---|---|---|
8 | Extension Pad - Body | CF8 |
9 | Extension Pad - Stem | SS304 |
10 | Extension Pad - Thrust Washer | PTFE |
11 | Extension Pad - Stem Packing | PTFE |
12 | Actuator Body | Aluminium |
13 | Actuator Seals | NBR70 |
14 | Actuator Position Indicator | Nylon |
