Features:
Size 25mm to 100mm ANSI 150 Flanged
Body UV stabalised PVC
Seat PTFE
Pressure 10 BAR
Temperature Ambient
Actuation Electric

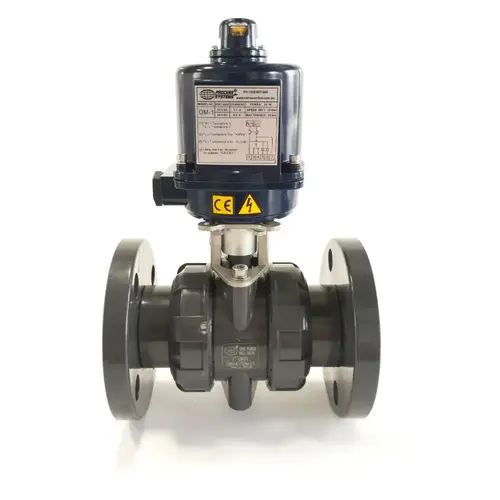

2 way UV stabilised ANSI 150 Flanged PVC ball valve with an electric actuator (drive open, drive close). Comes with PTFE (Teflon) seats and our unique double stem seal system (standard in EPDM but also available in Viton). Great for corrosive or chemical media where traditional material such as brass and stainless steel are not suitable. IP67 electric actuator with visual indicator and extra limit switches. Commonly used in the aquaculture industry (sea water), chemical dosing, water treatment and pool filtration.
*Voltage Code 1 = 240v AC, 2 = 110v AC, 5 = 24v AC, 7 = 12v DC, 8 = 24v DC. For FKM change the 'E' to 'V'.

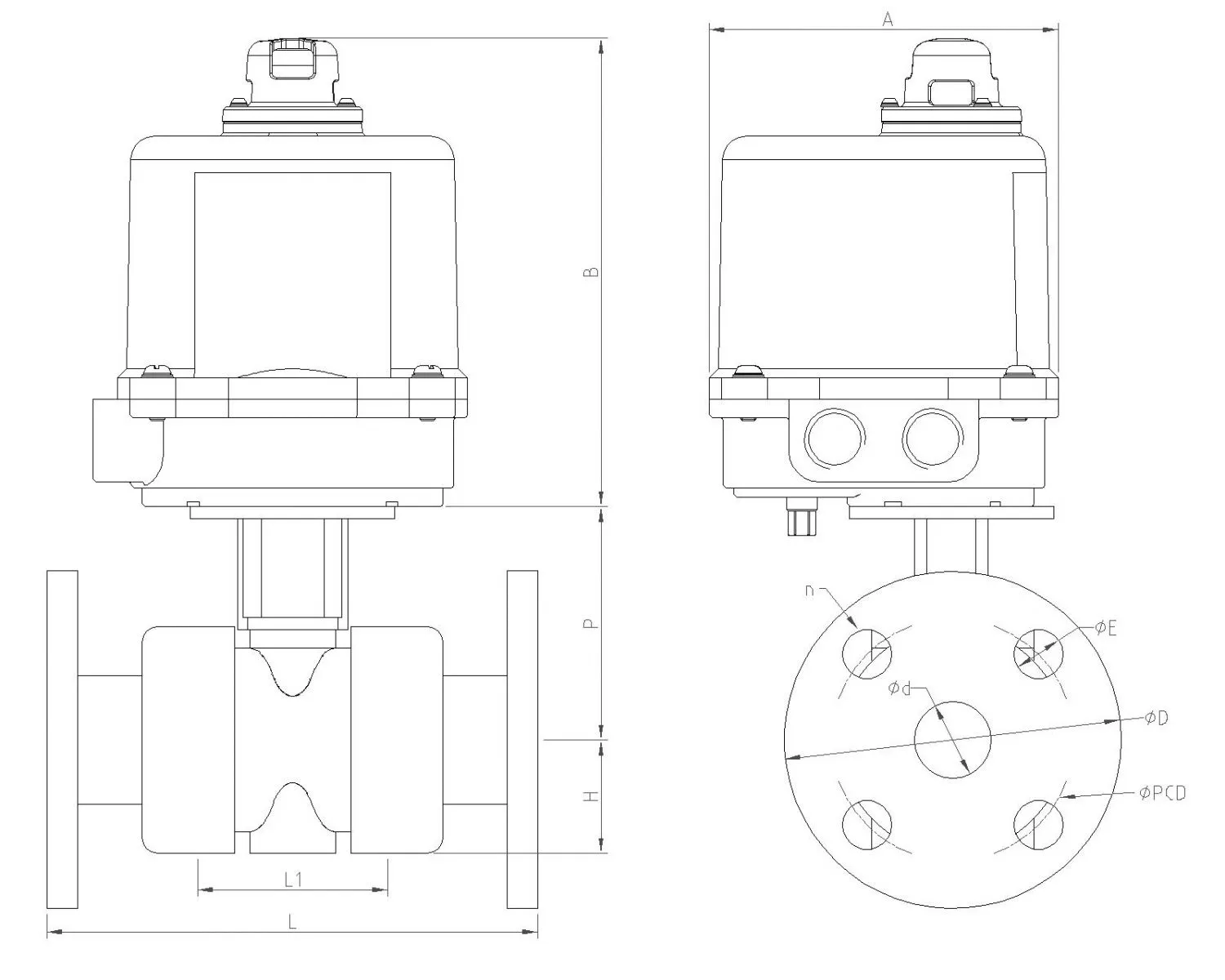

| Model | Size | Actuator | ⌀d | ⌀PCD | ⌀D | L | L1 | H2 | n | ⌀E | P | A | B |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BLP4F-E*-E | 1/2 | 0M-1 | 15 | 60.5 | 95 | 134 | 52 | 27.5 | 4 | 15 | 61.5 | 108 | 155 |
| BLP5F-E*-E | 3/4 | 0M-1 | 20 | 70 | 105 | 144 | 54 | 32 | 4 | 15 | 72.5 | 108 | 155 |
| BLP6F-E*-E | 1 | 0M-1 | 25 | 79.5 | 125 | 160 | 62 | 37.25 | 4 | 19 | 77.5 | 108 | 155 |
| BLP7F-E*-E | 1-1/4 | 0M-1 | 32 | 89 | 140 | 178 | 70 | 42.75 | 4 | 19 | 84.5 | 108 | 155 |
| BLP8F-E*-E | 1-1/2 | 0M-1 | 40 | 98.5 | 150 | 195 | 79.5 | 50 | 4 | 19 | 92 | 108 | 155 |
| BLP9F-E*-E | 2 | 0M-1 | 50 | 120.7 | 165 | 215 | 85 | 60 | 4 | 19 | 107 | 108 | 155 |
| BLP10F-E*-E | 2-1/2 | 0M-A | 63 | 139.7 | 182 | 320 | 133 | 76.5 | 4 | 19 | 122 | 130 | 200 |
| BLP11F-E*-E | 3 | 0M-A | 75 | 152 | 200 | 350 | 146 | 86 | 8 | 19 | 132 | 130 | 200 |
| BLP12F-E*-E | 4 | 0M-A | 90 | 190.5 | 228 | 395 | 160 | 107 | 8 | 19 | 180 | 130 | 200 |
All dimensions are in mm unless otherwise specified
Size 25mm to 100mm ANSI 150 Flanged
Body UV stabalised PVC
Seat PTFE
Pressure 10 BAR
Temperature Ambient
Actuation Electric
-
What is a 2 Way ANSI 150 Flanged Electric UPVC Ball Valve?
A two way ANSI 150 flanged electric UPVC ball valve is constructed of UV Stabalised PVC. It has a direct mounted IP67 electric actuator fixed to the valve which conducts its 90 degree turn (open/close). This kind of ball valve design makes it easy to remove from the line as you do not need to unscrew the valve like you would need to do on a threaded valve. It is also easy to change the valve seats as you can access them directly by unscrewing the union ends. Our design also has a double shaft oring seal to add an extra level of sealing. They have teflon (PTFE) seats and either EPDM or FKM seals (select according to media compatibility). The actuator comes with extra limit switches for voltage free end of stroke open/close feedback and a visual indicator.
-
How does a Two Way Electric ANSI 150 Flanged PVC Ball Valve work?
A flanged electrically actuated PVC ball valves works the same as any normal two way ball valve whereby the ball is rotated 90 degrees within the body of the valve which will either open or close the valve. The ball itself has a hole at either end which the media will flow through when it is open. When the valve is closed these holes are blocked off to the flow effectively isolating the media either side of the valve. The ball is turned by an electric actuator which is connected to a shaft which in turn is mated to the ball by a female slot. When the actuator is operated by an external relay it will take anywhere from 8 to 20 seconds for a cycle depending upon the actuator size (it generally gets longer as the actuator size increases with required torque). Once it rotates its required 90 degrees a microswitch on a cam is triggered and power to the motor is shut off. It will then wait for the relay to be switched and the valve will do the same thing in the other direction.
-
How long will my Flanged Electrically Actuated UV Stabalised PVC Ball Valve last?
Like any valve this depends upon the usage case of your ball valve, its environment, media and how many times it is cycled. For instance if it is on a clean media, in a clean environment and not cycled regularly the life will be decades or more. If it is on a corrosive media and in a dry application with a high cycle rate the life will be much shorter. These valves have repair kits available to refurbish the valve. The actuator's life will depend upon how clean the environment is, its correct installation, its duty cycle and electrical supply. Being CE certified they have been tested to 6,000 life cycles for general purpose applications but can last much longer. One common mistake we see is an incorrectly rated cable gland being installed. Our actuators are IP67 which gives you great water ingress protection but it will only be as good as the cable gland installation. You need to bear in mind the duty cycle of the actuator model you are using and do not exceed that eg. (if it is 75% you can use the actuator for 75 seconds with a 25 second down time out of 100 seconds). If you do it can lead to premature failure of the actuator.
-
How do I install an Electric ANSI 150 Flanged PVC Ball Valve?
As this is an ANSI 150 flanged 2 way valve it will need to be fitted between two of the same flanges (ANSI 150 standard) in the pipework. Between the mated flanges will need to be a gasket to ensure a positive seal. The type of gasket will depend upon the media and temperature, for instance a water application may use EPDM. The bolts should be fitted and then tightened in a diagonal direction to ensure an even fastening force across the face of the flange (for bolt torque refer to the flange standard). The electric actuator must be wired in accordance with the wiring diagram which is on the front of the actuator and also inside the housing. This varies between models and voltages so if there is any doubt please consult us.
-
What are typical uses of a Flanged Electrically Actuated PVC Ball Valve?
These flanged PVC ball valves are mainly used in water treatment or chemical dosing applications however they can really be used in a wide range of other cases as long as the media, temperature and pressure are compatible. As it has an electric actuator it is usually used in applications where a reliable air source is not present (as it is cheaper and faster to use a pneumatically actuated ball valve). Also if the actuator loses power it will fail in the position it is in (even if it is part way through a cycle eg. half open etc) so they are not used in fail safe applications. Here a spring return pneumatic or spring return electric actuator would be used (spring return electric is expensive). These are also only an on or off design however modulating is available if positional control is needed.
-
How long will my product take to get to me?
This depends upon where you are based and the freight method chosen. If the express freight option is selected it is usually next day delivery to metropolitan areas in Australia for under 5kg. If free freight has been selected it will go by road freight which can be anywhere from 1 to 10 days depending upon your location. It usually averages 3 days.
-
What warranty do I get?
All of our products come standard with a 12 month warranty. The good news is we have very strict quality controls and all valves leave our warehouse tested (full material and testing certificates to API598 are available) and inspected so there are rarely any issues. Also once your valve is in and operating it will most likely continue to do so for a very long time.
