Ductile Iron Y Strainer

From $104.50

Inc GST
In Stock
Make an Enquiry

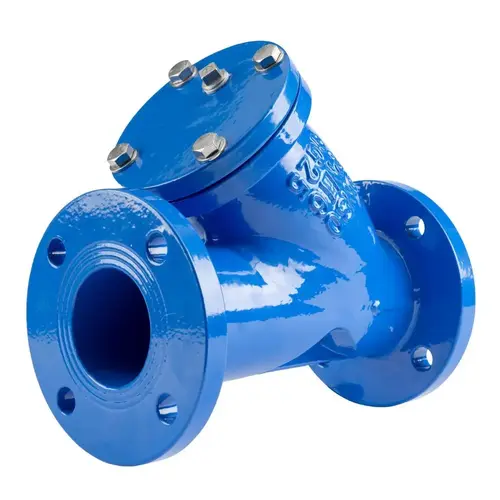

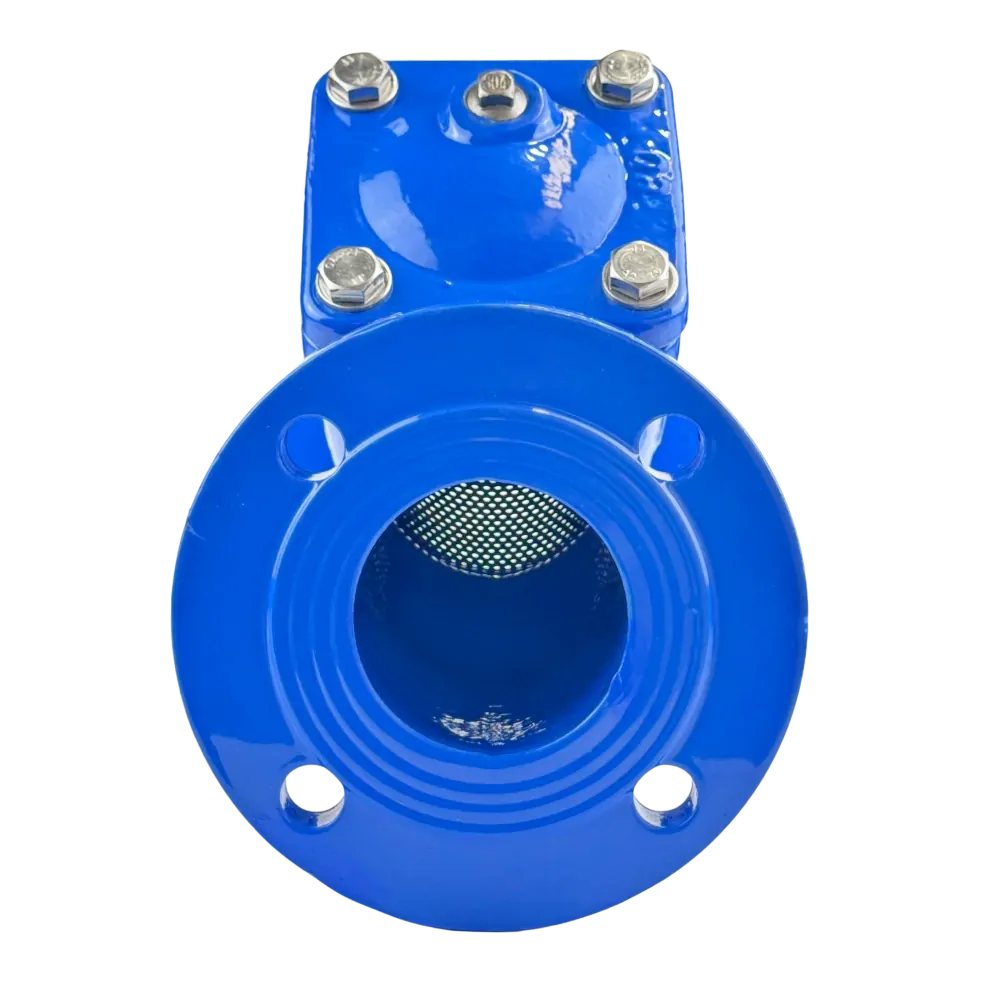

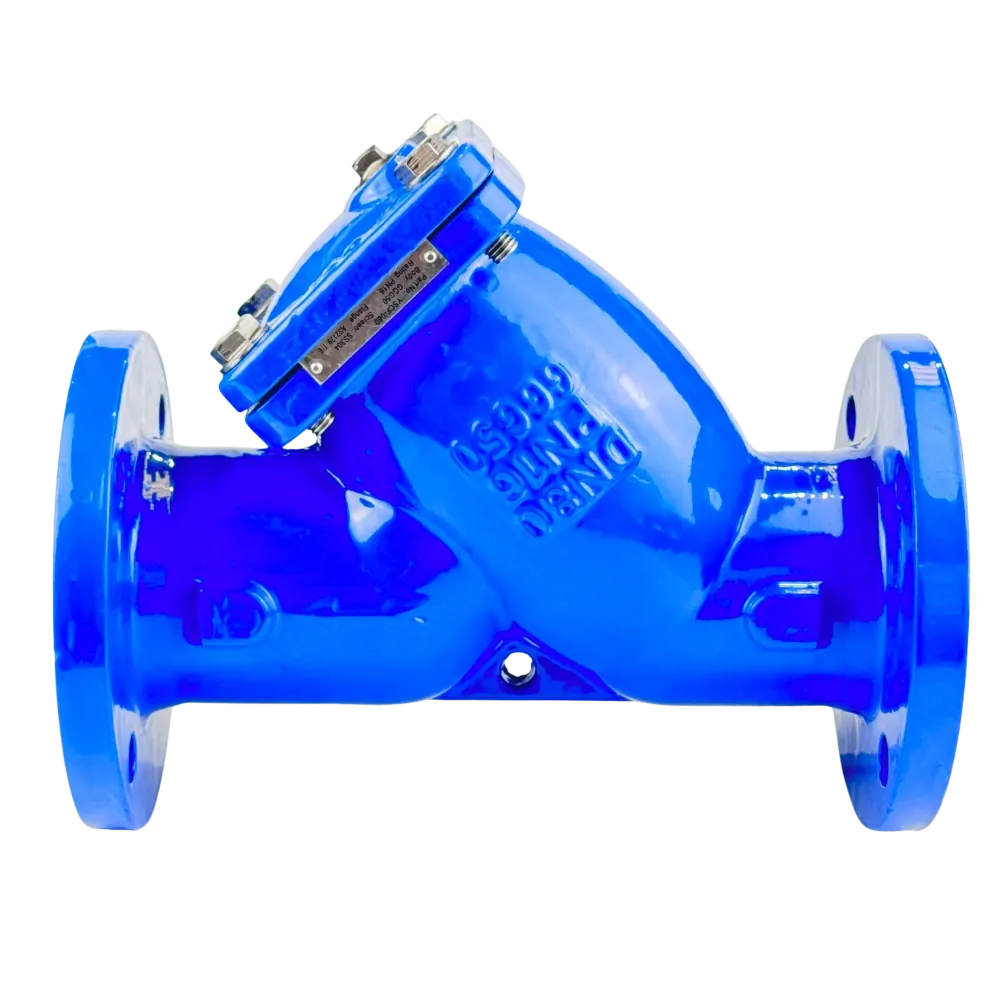

Fusion Bonded Epoxy Coated Ductile Iron Y Strainer Flanged to Table E with 304 Stainless Steel Mesh (refer to dimensions for mesh size). This Y strainer is great for waste water or other applications where straining needs to occur in an efficient and simple manner. Tested in accordance with API 598.

Model DN (mm) Pressure Range Media Temp Weight (kg) Plug Size
YSCF-050 50 0 to 16 BAR 0 to 80°C 9.6 ¼”
YSCF-065 65 0 to 16 BAR 0 to 80°C 12.3 3/8”
YSCF-080 80 0 to 16 BAR 0 to 80°C 17 ½”
YSCF-100 100 0 to 16 BAR 0 to 80°C 28.1 ½”
YSCF-125 125 0 to 16 BAR 0 to 80°C 40 ½”
YSCF-150 150 0 to 16 BAR 0 to 80°C 48.9 1”
YSCF-200 200 0 to 16 BAR 0 to 80°C 82.3 1”
YSCF-250 250 0 to 16 BAR 0 to 80°C 127.3 1”
YSCF-300 300 0 to 16 BAR 0 to 80°C 200 1”
YSCF-350 350 0 to 16 BAR 0 to 80°C 320 1”
YSCF-400 400 0 to 16 BAR 0 to 80°C 420 1”
YSCF-450 450 0 to 16 BAR 0 to 80°C 620 1”
YSCF-500 500 0 to 16 BAR 0 to 80°C 780 1”
YSCF-600 600 0 to 16 BAR 0 to 80°C 1050 1”

Ductile Iron Y Strainer Flanged Table E

DN L D D1 n-d d0 Mesh
50 230 150 114 4*18 2 10
65 290 165 127 4*18 2 10
80 310 185 146 4*18 3 7
100 350 215 178 8*18 3 7
125 400 255 210 8*18 3 7
150 480 280 235 8*22 4.5 4
200 600 335 292 8*22 5 4
250 730 405 356 12*22 5 4
300 850 455 406 12*26 5 4
350 980 525 470 12*26 5 4
400 1100 580 521 12*26 5 4
450 1200 640 584 16*26 5 4
500 1250 705 641 16*26 5 4

All dimensions in mm unless shown otherwise.

Ductile Iron Y Strainer

Number Part Material Grade Standard
1 Body Ductile Iron GGG50 ASTM A536
2 Screen Stainless Steel SS304 ASTM A370
3 Seating Rubber EPDM
4 Bonnet Ductile Iron GGG50 ASTM A536
5 Bolt Stainless Steel SS304 ASTM A370

Size 50mm to 600mm
Body FBE Coated Ductile Iron
Mesh 304 Stainless Steel
Pressure Range 0 to 16 BAR
Flanged AS2129 Table E / AS4087 PN16
Factory Accredited CE, ISO 9001, TUV, WRAS

Others Also Bought

YSCF

Ductile Iron Y Strainer

Features:

Size 50mm to 600mm
Body FBE Coated Ductile Iron
Mesh 304 Stainless Steel
Pressure Range 0 to 16 BAR
Flanged AS2129 Table E / AS4087 PN16
Factory Accredited CE, ISO 9001, TUV, WRAS

Description:

Fusion Bonded Epoxy Coated Ductile Iron Y Strainer Flanged to Table E with 304 Stainless Steel Mesh (refer to dimensions for mesh size). This Y strainer is great for waste water or other applications where straining needs to occur in an efficient and simple manner. Tested in accordance with API 598.

Model DN (mm) Pressure Range Media Temp Weight (kg) Plug Size
YSCF-050 50 0 to 16 BAR 0 to 80°C 9.6 ¼”
YSCF-065 65 0 to 16 BAR 0 to 80°C 12.3 3/8”
YSCF-080 80 0 to 16 BAR 0 to 80°C 17 ½”
YSCF-100 100 0 to 16 BAR 0 to 80°C 28.1 ½”
YSCF-125 125 0 to 16 BAR 0 to 80°C 40 ½”
YSCF-150 150 0 to 16 BAR 0 to 80°C 48.9 1”
YSCF-200 200 0 to 16 BAR 0 to 80°C 82.3 1”
YSCF-250 250 0 to 16 BAR 0 to 80°C 127.3 1”
YSCF-300 300 0 to 16 BAR 0 to 80°C 200 1”
YSCF-350 350 0 to 16 BAR 0 to 80°C 320 1”
YSCF-400 400 0 to 16 BAR 0 to 80°C 420 1”
YSCF-450 450 0 to 16 BAR 0 to 80°C 620 1”
YSCF-500 500 0 to 16 BAR 0 to 80°C 780 1”
YSCF-600 600 0 to 16 BAR 0 to 80°C 1050 1”
.

Ductile Iron Y Strainer

YSCF

Dimensions:

Ductile Iron Y Strainer Flanged Table E

DN L D D1 n-d d0 Mesh
50 230 150 114 4*18 2 10
65 290 165 127 4*18 2 10
80 310 185 146 4*18 3 7
100 350 215 178 8*18 3 7
125 400 255 210 8*18 3 7
150 480 280 235 8*22 4.5 4
200 600 335 292 8*22 5 4
250 730 405 356 12*22 5 4
300 850 455 406 12*26 5 4
350 980 525 470 12*26 5 4
400 1100 580 521 12*26 5 4
450 1200 640 584 16*26 5 4
500 1250 705 641 16*26 5 4

All dimensions in mm unless shown otherwise.

.

Ductile Iron Y Strainer

YSCF

Construction:

Ductile Iron Y Strainer

Number Part Material Grade Standard
1 Body Ductile Iron GGG50 ASTM A536
2 Screen Stainless Steel SS304 ASTM A370
3 Seating Rubber EPDM
4 Bonnet Ductile Iron GGG50 ASTM A536
5 Bolt Stainless Steel SS304 ASTM A370
