Flanged Spring Return 3 Way Stainless Steel

From $555.50

In Stock
Make an Enquiry

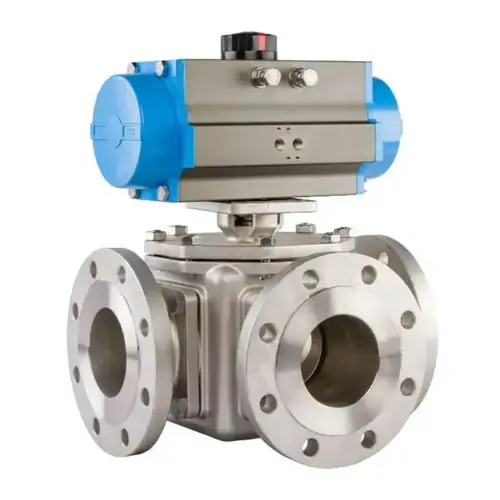

High performance 3 way full bore 316 Stainless Steel ball valve with ANSI 150 flanged connections and a spring return pneumatic actuator. Self adjusting stem packing assembly with belleville spring for temperature fluctuations and vibration. Pre drilled metric ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. Anodized aluminium rack and pinion actuator with visual indicator, namur interface and stop adjustments. Typical applications include water treatment, chemical, marine, petrochemical and general industry.

Model DN (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BLS3L4FA-SR-RT 15 SR63 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS3L5FA-SR-RT 20 SR75 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS3L6FA-SR-RT 25 SR75 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS3L7FA-SR-RT 32 SR88 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLS3L8FA-SR-RT 40 SR100 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLS3L9FA-SR-RT 50 SR115 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLS3L10FA-SR-RT 65 SR125 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLS3L11FA-SR-RT 80 SR145 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLS3L12FA-SR-RT 100 SR160 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 6 to 8 BAR 1/4"

Change the 'L' (L port) to a 'T' (T port) as required.

L Port T Port

3 way flanged spring return stainless steel ball valve

DN Actuator A B C D E F G H L T
15 SR63 162 100 60.5 89 81 2 35 153.5 152 11
20 SR75 208 117 70 98 97 2 43 167 167 11
25 SR75 208 117 79.5 108 97 2 51 182 180 12
32 SR88 245 136 89 117 116 2 64 195.5 190 13
40 SR100 266 142 98.5 127 122 2 73 210.5 212 15
50 SR115 310 172 120.5 152 142 2 92 248 230 16
65 SR125 340 184 139.5 178 154 2 105 273 290 18
80 SR145 401 209 152.5 190 179 2 127 304.25 310 19
100 SR160 430 222 190.5 229 192 2 157 336.5 350 24

All dimensions in mm unless shown otherwise.

3 way flanged spring return pneumatic stainless steel ball valve

Number Item Material
1 Flanged End CF8M
2 Seat Reinforced PTFE
3 Ball ASTM A182 316
4 Body ASTM A351 CF8M
5 Shaft ASTM A276 316
6 Thrust Washer SS201
7 Chevron Packing PTFE
8 Shaft Seal Oring Viton
9 Belleville Washers SS201
10 Retaining Nut SS304
13 Shaft Seal Viton
14 Cap Gasket PTFE
15 Pneumatic Actuator Anodized Aluminium
16 Stops ASTM A276 316
17 Indicator Thermoplastic
18 Bonnet ASTM A351 CF8M

Size 15mm to 100mm
Body 316 Stainless Steel
Pressure 20 BAR @ ambient
Temperature -10°C to 180°C
Actuation Spring Return Pneumatic
Port  L or T port

  • What is a 3 Way Flanged Stainless Steel Spring Return Pneumatic Ball Valve?

    A three way stainless steel spring return ball valve operates on the same principle as a two way spring return pneumatic ball valve, but instead of a complete isolation or completely open (2 states, closed or open) it will have one line open and one line closed (in either an L or T port configuration). It is important to note that during its 90 degree turn from one line to another there is a point where all lines are partially open to each other, even though this is for a very short period of time (the time for one cycle depends upon the size of the actuator, your air pressure and 5/2 valve size but is usually a second or so in the smaller sizes and a few seconds in the bigger sizes). The 3 way ball valve itself is made of cast stainless steel (CF8M) with a polished stainless steel ball and a direct mounted anodised aluminium rack and pinion actuator. The size of the actuator will get bigger with the size of the valve as the torque required increases. We match all of our actuators with at least a 30% safety margin in torque for the spring when it is fully extended so you know it will have enough torque to return to your fail safe position with no air.

  • How does a Flanged 3 Way Stainless Steel Spring Return Pneumatic Ball Valve work?

    The 3 way ball valve will work by the spring return actuator rotating the ball 90 degrees in the valve. This will be in a clockwise or anticlockwise direction depending upon the actuator involved (ours usually open anti clockwise). The actuator itself is controlled by a 5/2 valve (either solenoid or manual) where air will be put into one side of the pistons and exhausted out the other side, allowing the actuator to rotate 90 degrees (in turn rotating the ball). It can also be controlled by a 3/2 valve as the actuator is spring return, air can be used to open the valve (or vice versa) and the spring force to close it once the air is exhausted. We always recommend using a 5/2 valve however as that way you can ensure clean air is being delivered to your actuator which will help it last a lot longer.

  • How long will my Flanged 3 Way Stainless Steel Double Acting Ball Valve last?

    This depends upon the usage case of your valve, its environment, media, supply air cleanliness and how many times it is cycled. For instance, if it is on a clean media in a clean environment and not cycled regularly, the life will be decades. If it is on a corrosive media and in a dry application with a high cycle rate, the life will be much shorter. We conduct regular lab testing and 30,000 cycles is a reasonable life cycle depending upon the application. The actuator's life will depend upon how clean and dry the supply air is (the air that makes the actuator operate) however we regularly lab test these to over 800,000 cycles. Install a basic air filter if you are not sure about the quality of your air. We have pneumatic actuators that have been in operation for decades.

  • How do I install a 3 Way Flanged Stainless Steel Spring Return Ball Valve?

    This really depends upon the application it is going into. As this 3 way valve is female threaded, it will need a male thread to fit into each of its ports (eg. male nipple). These should be sealed with thread tape or a thread sealant. As the body is full stainless steel, if dissimilar metals are used this can be a potential corrosion point so make sure they are isolated from each other with some PTFE thread tape. The actuator can accommodate a namur solenoid valve which is a very popular configuration (the 5/2 control valve bolts directly onto the actuator with an o-ring face seal on the back of the valve) or just a standalone 5/2 valve. If you are using a stand alone 5/2 valve, the air lines will need to be run from here into the ports on the actuator (remember the longer the run the slower the operation unless you use quick exhaust valves near the actuator). A 3/2 valve can also be used by running the air into the open port on the actuator. If this method is chosen we would recommend a silencer or exhaust regulator silencer in the unused port as it will help filter out suspended solids being sucked into the actuator from the surrounding environment.

  • What are typical uses of a three way flanged stainless steel spring return ball valve?

    These three way spring return ball valves are used on a wide variety of applications. Everything from the food industry, power generation, mining and irrigation. The common theme though is where either a diversion (switching from one line to another) or isolation of one line to change over to another is used. The media can range from water, steam all the way through to corrosive chemicals that are compatible with the materials of the valve. As they have springs in the actuator that have enough torque to actuate the valve without air, you can have a fail safe position (either open or close) if you lose power/air. This is used a lot in the fuel industry where it is quite often necessary to achieve this.

  • How long will my product take to get to me?

    This depends upon where you are based and the freight method chosen. If the express freight option is selected it is usually next day delivery to metropolitan areas in Australia for under 5kg. If free freight has been selected it will go by road freight which can be anywhere from 1 to 10 days depending upon your location. It usually averages 3 days.

  • What warranty do I get?

    All of our products come standard with a 12 month warranty. The good news is we have very strict quality controls and all valves leave our warehouse tested (full material and testing certificates to API598 are available) and inspected so there are rarely any issues. Also once your valve is in and operating it will most likely continue to do so for a very long time.
