SKU: TSF-13

Ductile Iron High Capacity Float Steam Trap

From $2,739.00

Inc GST
In Stock
Make an Enquiry
  • Reliable performance and large discharge capacities through the use of a double-port structure
  • Internal parts such as the valves, seats, air vents and floats are constructed from Stainless Steel, offering corrosion resistance and durability
  • Incorporated Air Vent allow air to be exhausted quickly, which significantly reduces equipment start up time
  • Use of a large float allows for stable operation
Particular Description
Application Steam Condensate
Type High Capacity Float Trap
Pressure 0.1 to 5 Bar | 0.1 to 10 Bar* | 0.1 to 14 Bar
Temperature 0°C to 220°C
Connection BPST (ISO 7.1)*
Size 1-½"* & 2"
Body Ductile Cast Iron
Valve and Seat Stainless Steel
Float Stainless Steel

*Standard Pressure Range, 2" BPST as standard (1-½" and flanged upon request)

It is recommended to install a strainer at the inlet of the Steam Trap to protect it from any scale or other foreign substances that may enter and impact on the function of the trap.

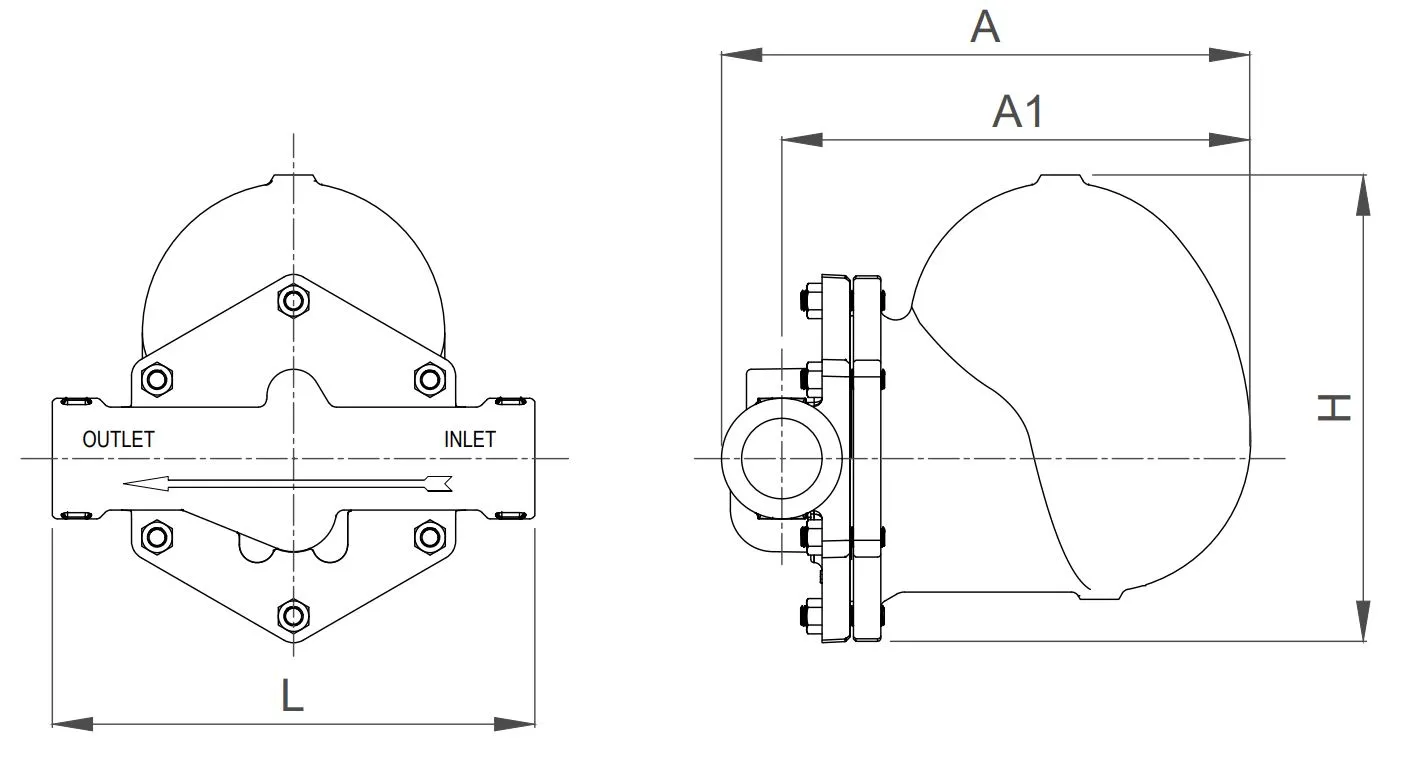

Model Size L A A1 H Weight (kg)
TSF-13-10-09 2" BSPT 300 328 291 290 20

All dimensions are in mm unless specified otherwise

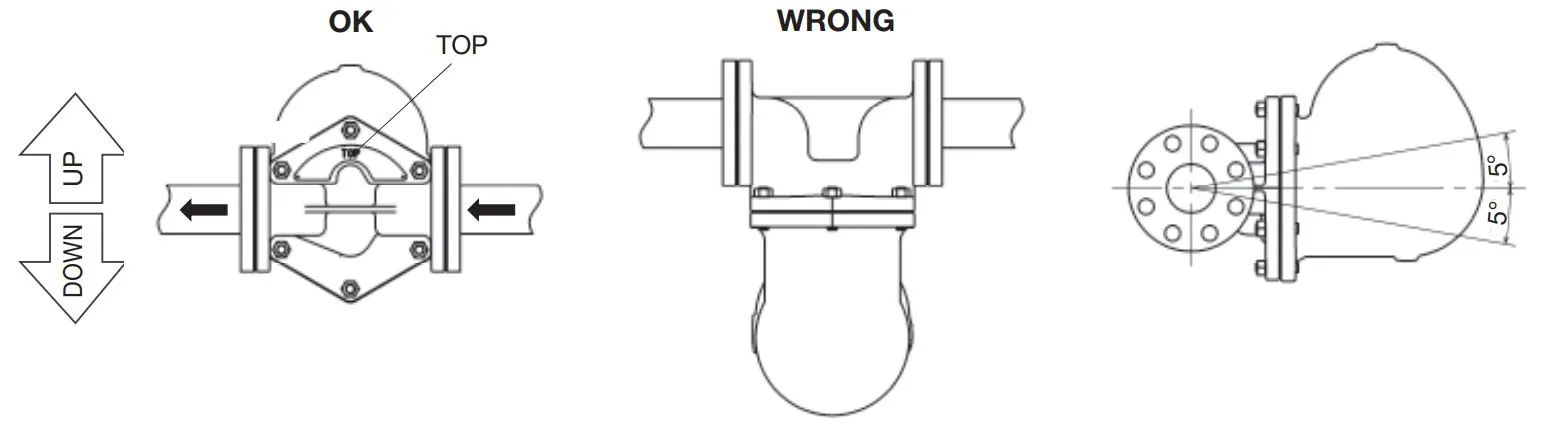

Installation Guide

Size 2" BSPT
Body Ductile Iron
Pressure Range 0.1 to 14 BAR
Temperature 0 to 220°C

Others Also Bought

TSF-13

Ductile Iron High Capacity Float Steam Trap 50mm

Features:

Size 2" BSPT
Body Ductile Iron
Pressure Range 0.1 to 14 BAR
Temperature 0 to 220°C

Description:

  • Reliable performance and large discharge capacities through the use of a double-port structure
  • Internal parts such as the valves, seats, air vents and floats are constructed from Stainless Steel, offering corrosion resistance and durability
  • Incorporated Air Vent allow air to be exhausted quickly, which significantly reduces equipment start up time
  • Use of a large float allows for stable operation
Particular Description
Application Steam Condensate
Type High Capacity Float Trap
Pressure 0.1 to 5 Bar | 0.1 to 10 Bar* | 0.1 to 14 Bar
Temperature 0°C to 220°C
Connection BPST (ISO 7.1)*
Size 1-½"* & 2"
Body Ductile Cast Iron
Valve and Seat Stainless Steel
Float Stainless Steel

*Standard Pressure Range, 2" BPST as standard (1-½" and flanged upon request)

It is recommended to install a strainer at the inlet of the Steam Trap to protect it from any scale or other foreign substances that may enter and impact on the function of the trap.

.

Ductile Iron High Capacity Float Steam Trap 50mm

TSF-13

Dimensions:

Model Size L A A1 H Weight (kg)
TSF-13-10-09 2" BSPT 300 328 291 290 20

All dimensions are in mm unless specified otherwise

Installation Guide

.

Ductile Iron High Capacity Float Steam Trap 50mm

TSF-13

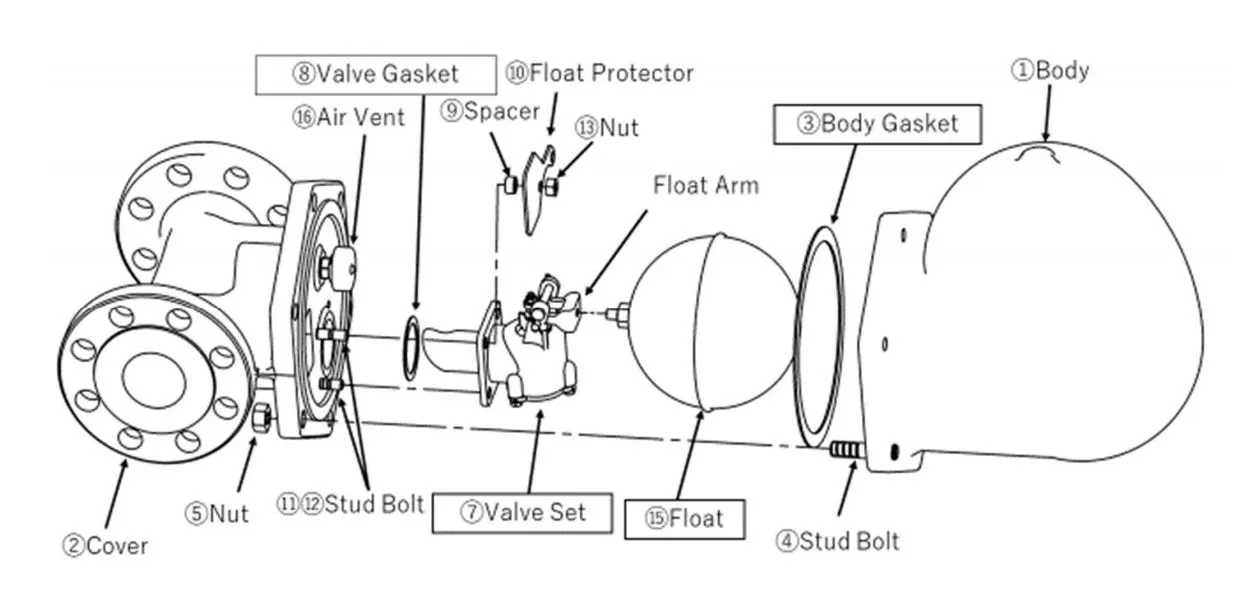

Construction:

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult Process Systems Pty Ltd. Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by Process Systems Pty. Ltd. are warranted by Process Systems to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. Process Systems obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of Process Systems and provided such defective product is returned to Process Systems freight prepaid and upon examination by Process Systems such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from Process Systems Pty. Ltd. representatives or employees. Process Systems reserves the right to change Valve and Brochure specifications without notice.
