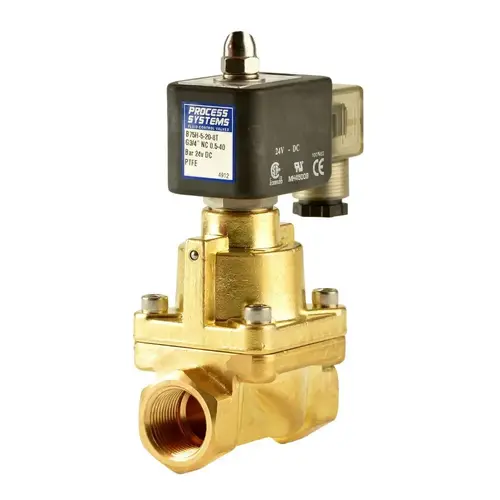

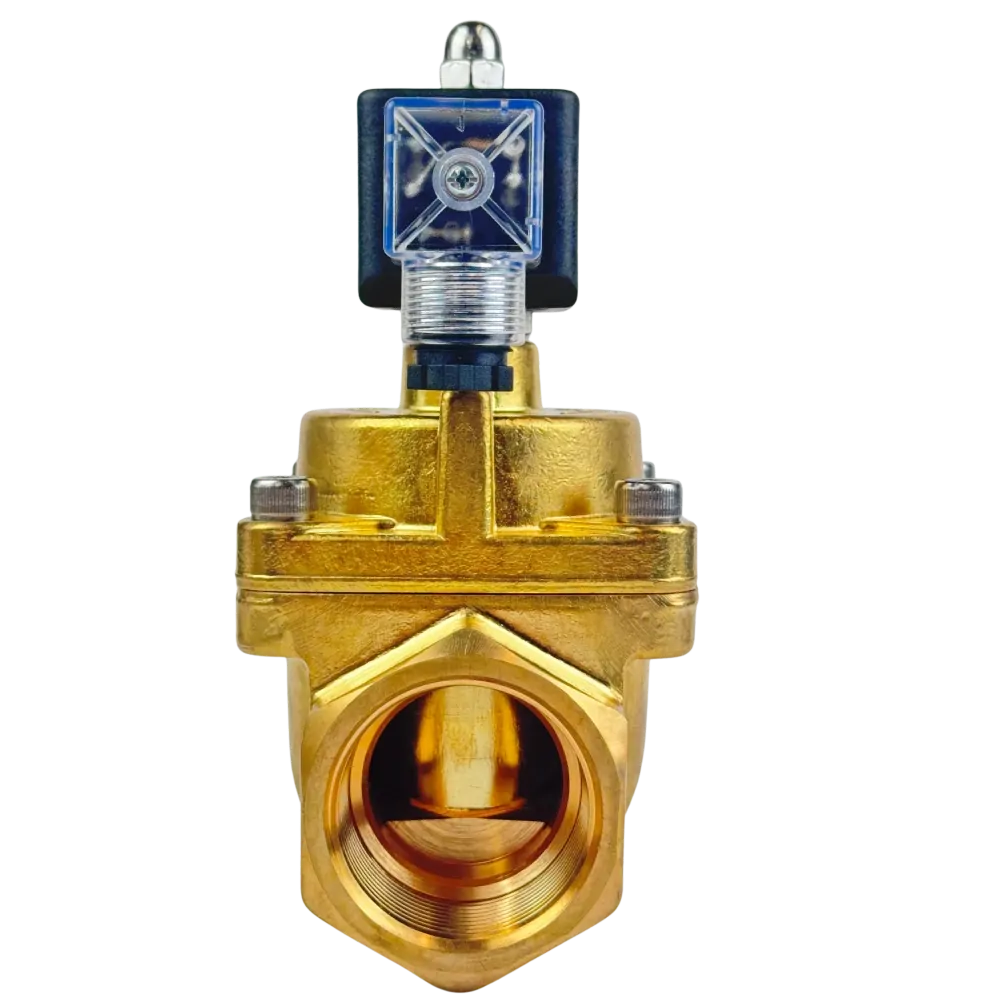

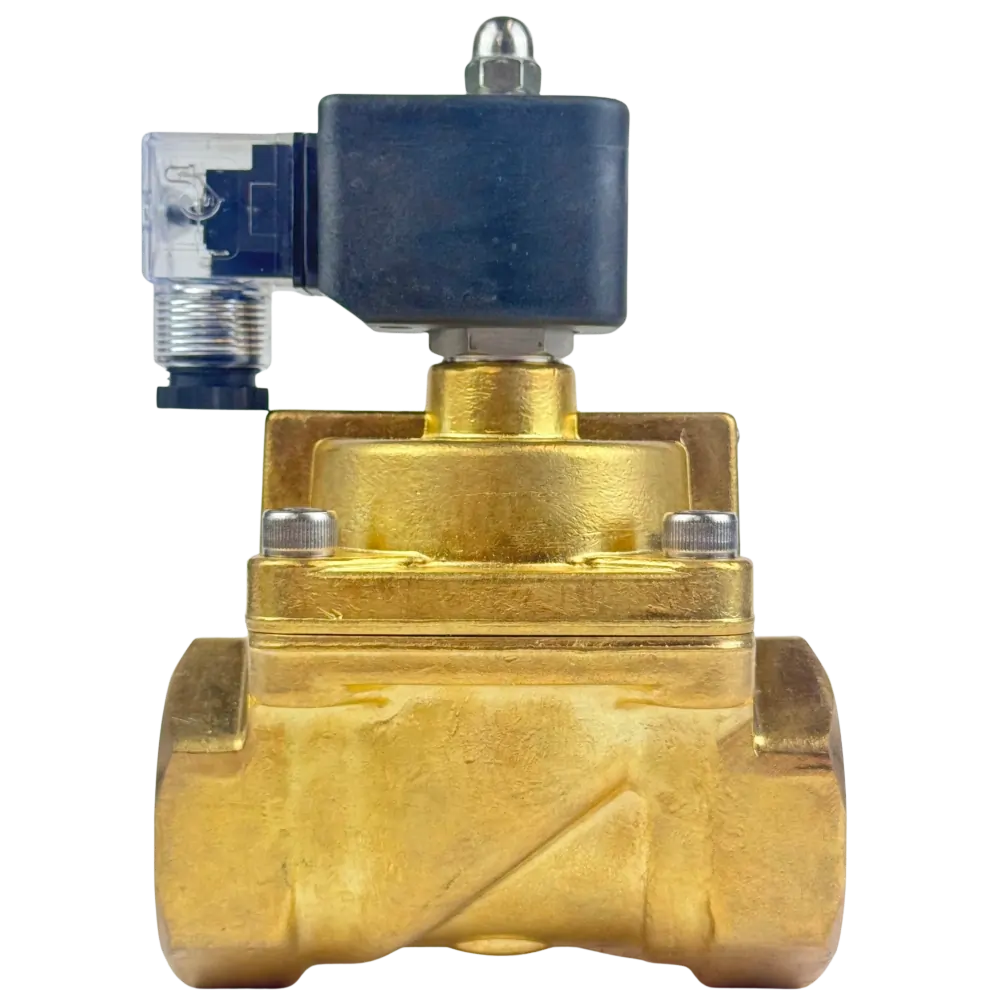

Brass High Pressure 80 BAR Normally Closed Solenoid Valve

SKU: B75HH

$764.50
Inc GST In Stock
Free Shipping Australia Wide*

Size
Voltage


Calculate Shipping


DATA SHEET

A high flow and high pressure (to 80 Bar) piston type differential solenoid valve. Brass forged body with Teflon seats applicable for air and fluid up to 50 centistoke viscosity. Comes with 100% duty rated encapsulated coil (grade H insulation) and LED din plug (IP65). Threads conform to ISO 7.1 Sealing Threads.

Model Port Size (BSP) Orifice ømm CV Pressure (BAR) Media Temperature Repair Kit Coil Specifications
B75HH-3-15-*T 3/8 15 4.5 0.5 to 80 -10°C to 120°C RK-B75HH-4-T SC-C2
24.4 Volt Amps
18 Watts
Class F Insulation
100% ED
B75HH-4-15-*T 1/2 15 4.5 0.5 to 80 -10°C to 120°C RK-B75HH-4-T
B75HH-5-20-*T 3/4 20 9.3 0.5 to 80 -10°C to 120°C RK-B75HH-5-T
B75HH-6-25-*T 1 25 13.2 0.5 to 80 -10°C to 120°C RK-B75HH-6-T
B75HH-7-35-*T 1 ¼ 35 26 0.5 to 80 -10°C to 120°C RK-B75HH-8-T
B75HH-8-35-*T 1 ½ 35 26 0.5 to 80 -10°C to 120°C RK-B75HH-8-T
B75HH-9-50-*T 2 50 48 0.5 to 80 -10°C to 120°C RK-B75HH-9-T

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC.

For Installation and Maintenance instructions please click here or find in our References section under Valve Installation and Maintenance for Solenoid Valves.

(B75HH)

Brass Normally Closed High Pressure Solenoid Valve 80 BAR

Model A B C D E F G (BSP) H Weight Kg
B75HH-3-15-*T 75 52 129 53 47 43 3/8" 14.5 1.15
B75HH-4-15-*T 75 52 129 53 47 43 1/2" 14.5 1.13
B75HH-5-20-*T 85 60 141 53 47 43 3/4" 18 1.53
B75HH-6-25-*T 100 70 148 53 47 43 1” 23 1.85
B75HH-7-35-*T 120 90 168 53 47 43 11/4" 33 3.35
B75HH-8-35-*T 120 90 168 53 47 43 11/2" 33 3.30
B75HH-9-50-*T 150 120 203 53 47 43 2” 40.5 6.85

Brass Normally Closed High Pressure Solenoid Valve 80 BAR

No. Item Material
1 Valve Body Forged Brass
2 Piston Seat Teflon®
3 Leak proof Gasket Teflon®
4 Fixed Pin Stainless Steel
5 Piston Ring MoS 2+Teflon®
6 Piston Brass
7 Spring Stainless Steel
8 Valve Bonnet Forged Brass
9 Sleeve Stainless Steel
10 Seat Teflon®
11 Spring SUS 304
12 Armature Core Stainless Steel
13 Solenoid Tube Stainless Steel
14 Coil Brass Wire

Size 3/8" to 2" BSP
Function Normally Closed (power to open)
Valve Operation Servo Assisted
Body Forged Brass
Seat PTFE
Pressure Range 0.5 to 80 BAR
Media Non aggressive media
