3 Way 2 position Raised Button Spring Return Valve

3 Way 2 position Raised Button Spring Return Valve

SKU: RBS32

$24.75
Inc GST In Stock
Make an Enquiry
Free Shipping Australia Wide
Size
Colour
Select Options

DATA SHEET

The RBS32 series are a three way two position raised button spring return valve. The button is pressed down and once released the button will spring back to its resting position.Great for use as a pilot or control valve in a pneumatic system or on spring return/single acting cylinders or actuators. Simple to use, install and maintain.

3 way 2 position raised button spring return valve

Specification RBS32-01-B RBS32-01-G RBS32-01-R RBS32-02-B RBS32-02-G RBS32-02-R
Port Size G1/8” G1/8” G1/8” G1/4” G1/4” G1/4”
Button Colour Black Green Red Black Green Red
Pressure Range 0 to 10 BAR (147 psi)
Max Inlet Pressure 10 BAR (147 psi)
Medium Temperature -5 to 60°C
Body Die Cast Aluminium
Button Thermoplastic
Lubrication Not Required
Applicable Medium Air

(RBS32)

3 way 2 position raised button spring return valve

Size 1/8" to 1/4" BSP
Function 3 way 2 position raised button
Body Aluminium
Pressure Range 0 to 10 BAR
Media Air

We Also Recommend


Male Straight Connector Push Fit

SKU: YPC

Male Straight Connector Push Fit

From $1.76

More Info
Male Swivel Elbow Push Fit

SKU: YPL

Male Swivel Elbow Push Fit

From $2.20

More Info

Others Also Bought


Cast Iron Spring Return Butterfly Valve with 316 Stainless Steel Disc

SKU: BFDSR

Cast Iron Spring Return Butterfly Valve with 316 S

From $231.00

More Info
3 Way 2 position Flush Button Spring Return Valve

SKU: FBS32

3 Way 2 position Flush Button Spring Return Valve

From $24.75

More Info
Mini Ball Valve M&F Ends

SKU: MBVF

Mini Ball Valve M&F Ends

From $6.60

More Info
3 Way 2 position Palm Button Latching Valve

SKU: PBL32

3 Way 2 position Palm Button Latching Valve

From $66.00

More Info

More From This Category


3 Way 2 position Flush Button Spring Return Valve

SKU: FBS32

3 Way 2 position Flush Button Spring Return Valve

From $24.75

More Info
1/4" BSP 5/2 Way Rotary Lever Black

SKU: ROL52-02

1/4" BSP 5/2 Way Rotary Lever Black

$71.50

More Info
50% OFF RRP $143.00
3 Way 2 position Roller Lever Spring Valve

SKU: RLS32

3 Way 2 position Roller Lever Spring Valve

From $19.25

More Info
3 Way 2 position Rotary Lever Valve

SKU: ROL32

3 Way 2 position Rotary Lever Valve

From $30.25

More Info

RBS32

3 Way 2 position Raised Button Spring Return Valve

Features:

Size 1/8" to 1/4" BSP
Function 3 way 2 position raised button
Body Aluminium
Pressure Range 0 to 10 BAR
Media Air

Description:

The RBS32 series are a three way two position raised button spring return valve. The button is pressed down and once released the button will spring back to its resting position.Great for use as a pilot or control valve in a pneumatic system or on spring return/single acting cylinders or actuators. Simple to use, install and maintain.

3 way 2 position raised button spring return valve

Specification RBS32-01-B RBS32-01-G RBS32-01-R RBS32-02-B RBS32-02-G RBS32-02-R
Port Size G1/8” G1/8” G1/8” G1/4” G1/4” G1/4”
Button Colour Black Green Red Black Green Red
Pressure Range 0 to 10 BAR (147 psi)
Max Inlet Pressure 10 BAR (147 psi)
Medium Temperature -5 to 60°C
Body Die Cast Aluminium
Button Thermoplastic
Lubrication Not Required
Applicable Medium Air
.

3 Way 2 position Raised Button Spring Return Valve

RBS32

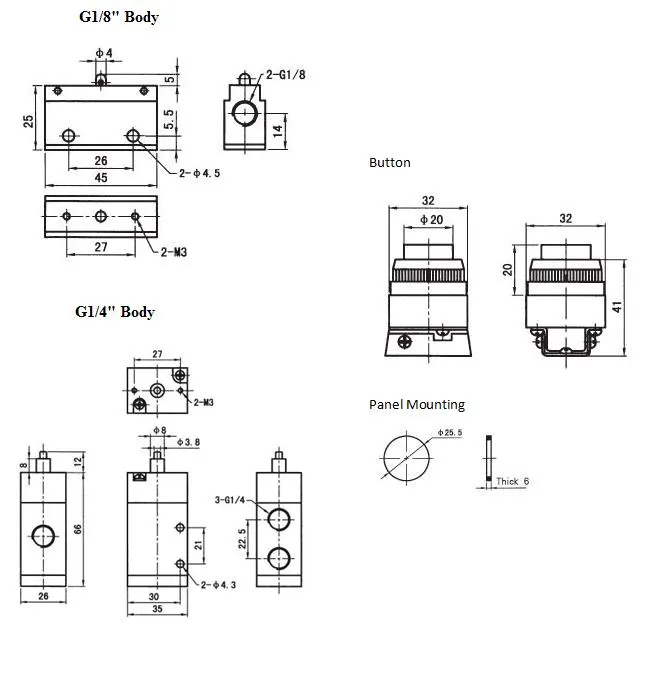

Dimensions:

3 way 2 position raised button spring return valve

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult Process Systems Pty Ltd. Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by Process Systems Pty. Ltd. are warranted by Process Systems to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. Process Systems obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of Process Systems and provided such defective product is returned to Process Systems freight prepaid and upon examination by Process Systems such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from Process Systems Pty. Ltd. representatives or employees. Process Systems reserves the right to change Valve and Brochure specifications without notice.

.
