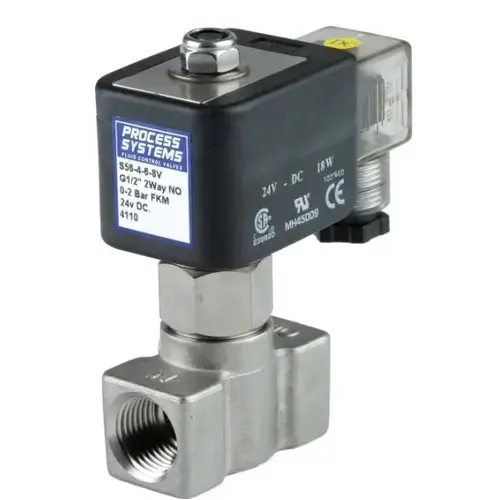

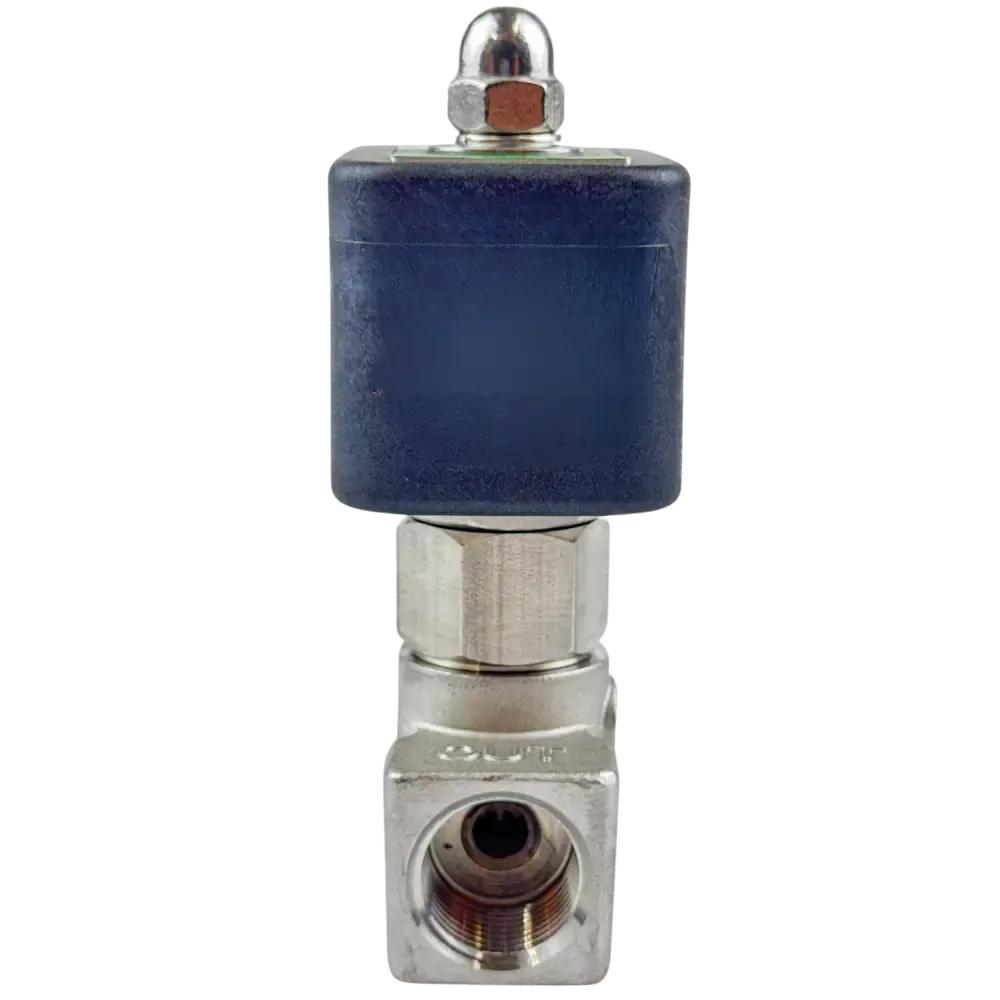

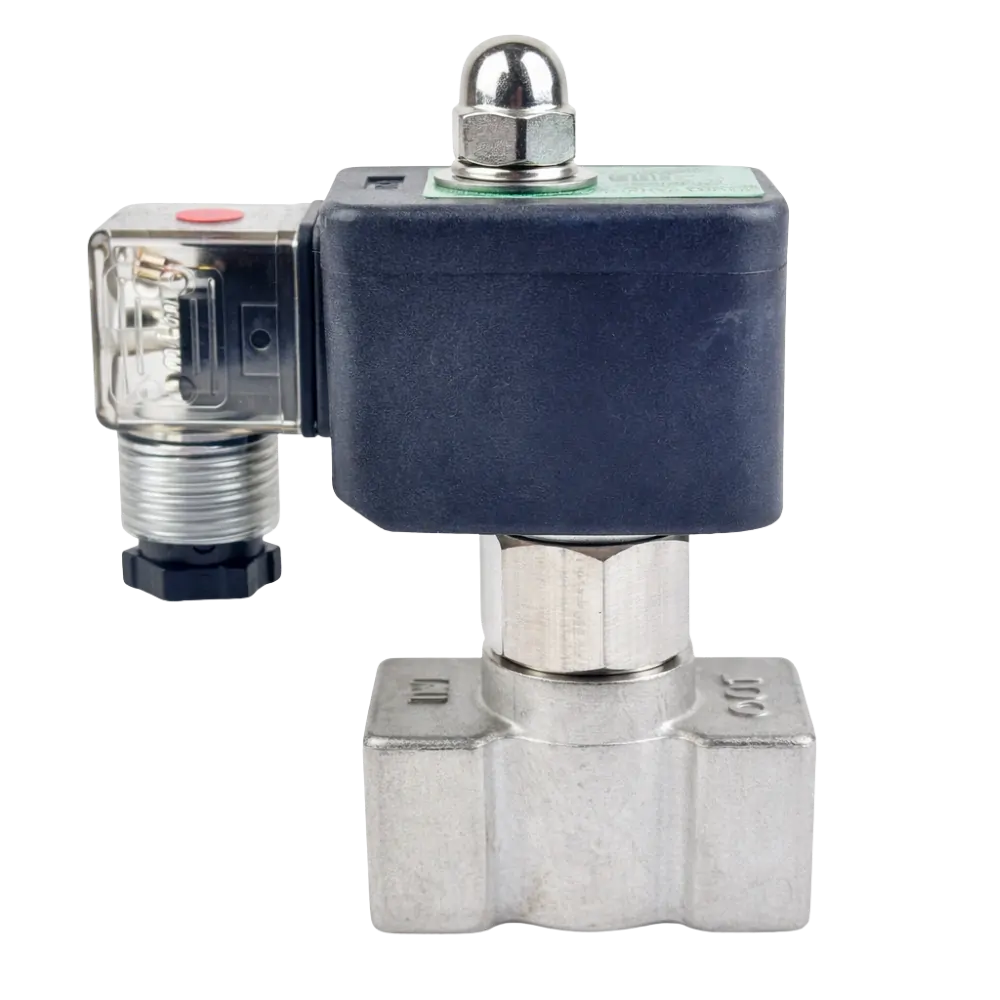

Stainless Steel Petrochemical Direct Acting Normally Open Solenoid Valve

SKU: S56D

$357.50
Inc GST In Stock
Free Shipping Australia Wide

Size
Voltage
Orifice


DATA SHEET

A direct acting normally open (power to close) 316 Stainless Steel body solenoid valve with a stainless steel operator. Suitable for low head and zero head applications. available in various seat materials including Viton (standard), Silicone, Neoprene, EPDM & Nitrile (contact us for any seals other than standard). Liquids to 40cst viscosity. Standard coil is weatherproof to IP65 and has LED illuminated plug. Typical Applications include: Petrochemical, diesel farms, vacuum packaging, tank drain or low pressure service & general industry. Threads conform to ISO 7.1 Sealing Threads.

Model Port Size BSP Orifice ømm CV Media Pressure Media Temperature Repair Kit Coil Specifications
S56-2-3-*V 1/4 3 0.26 0 to 10 BAR -10°C to 100°C RK-S56D-2-V SC-C2
24.4 Volt Amps
24 Watts
Class F Insulation
100% ED
S56-2-4-*V 1/4 4 0.58 0 to 6 BAR -10°C to 100°C RK-S56D-2-V
S56-2-5-*V 1/4 5 0.64 0 to 4 BAR -10°C to 100°C RK-S56D-2-V
S56-3-4-*V 3/8 4 0.58 0 to 6 BAR -10°C to 100°C RK-S56D-4-V
S56-3-6-*V 3/8 6 0.79 0 to 2 BAR -10°C to 100°C RK-S56D-4-V
S56-4-6-*V 1/2 6 0.79 0 to 2 BAR -10°C to 100°C RK-S56D-4-V

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

For Installation and Maintenance instructions please click here or find in our References section under Valve Installation and Maintenance for Solenoid Valves.

(S56D)

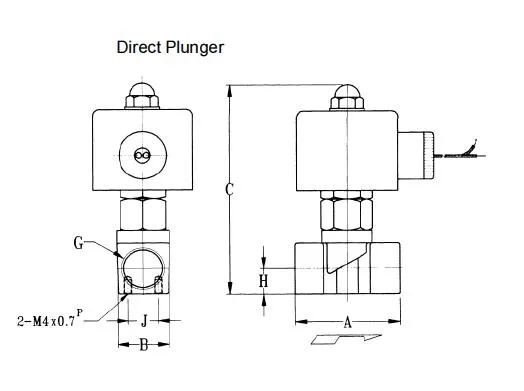

316 Stainless Steel Normally Open Direct Acting Solenoid Valve

Model G (BSP) A B C H J Weight Kg
S56-2-3-*V 1/4 41 19 108 10.5 15 0.50
S56-2-4-*V 1/4 41 19 108 10.5 15 0.50
S56-2-5-*V 1/4 41 19 108 10.5 15 0.50
S56-3-4-*V 3/8 50 25 110 11.7 15 0.80
S56-3-6-*V 3/8 50 25 110 11.7 15 0.80
S56-4-6-*V 1/2 55 27 112 13 15 0.95

All dimensions in mm unless shown otherwise.

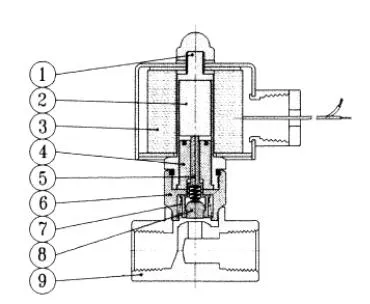

316 Stainless Steel Normally Open Direct Acting Solenoid Valve

Item Article Material
1 Solenoid Tube Stainless Steel
2 Slide Core Stainless Steel
3 Coil Brass Wire
4 Armature Core Stainless Steel
5 Operating Spindle Stainless Steel
6 Joint Sleeve Stainless Steel
7 Spring Stainless Steel
8 Seat Viton
9 Valve Body 316 Stainless Steel

Size 1/4" to 1/2" BSP
Function Normally Open (power to close)
Valve Operation Direct Acting
Body 316 Stainless Steel
Seat FKM
Pressure Range 0 to 10 BAR (depending on size)
Media Petrochemical
