G1/2" NO 0-5 Bar 12v DC NBR

SKU: ES56-4-16-7N

$176.00
Inc GST In Stock
Free Shipping Australia Wide*

Size
Voltage


Calculate Shipping

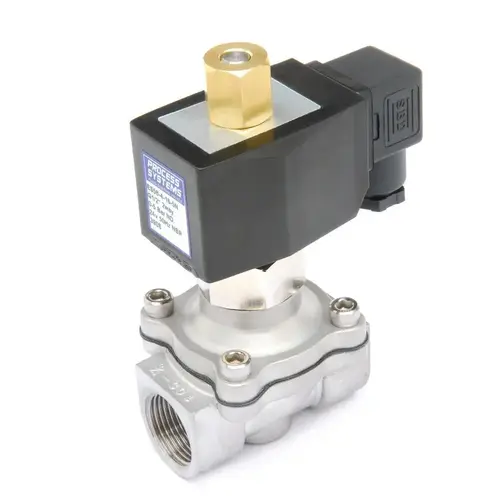

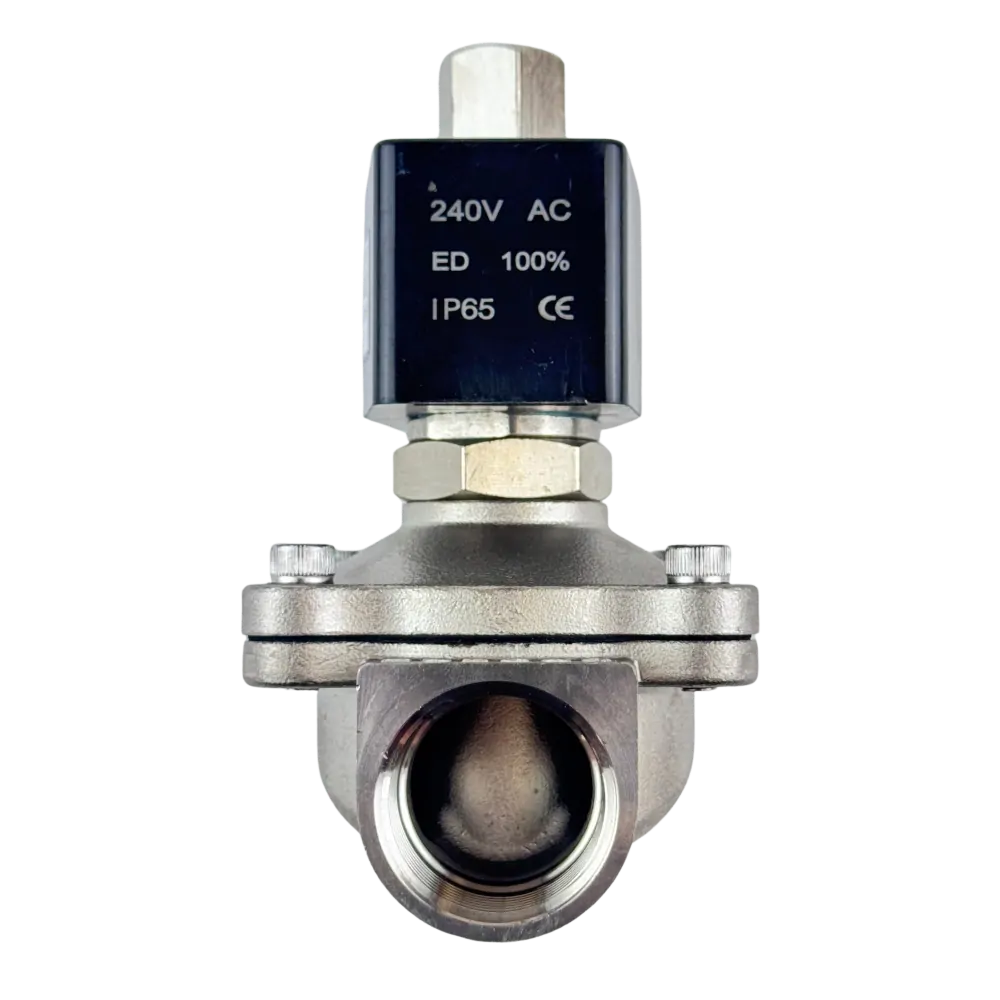

304 S.S 2 way 2 position normally open zero differential solenoid valve.G1/2", 16mm orifice, 304 SS operator, copper shading ring, NBR seat.0-5 BAR pressure range, media temp -10°C to 80°C.Coil Class H insulation, 30 Watts, IP65 protection.

A high flow normally open (power to close) valve with a 304 Stainless Steel forged body and stainless steel operator. Suitable for low head and zero head applications with a coupled diaphragm and standard with NBR seat and seals. Liquids to 20 centistoke viscosity. Standard coil is weatherproof to IP65 and has LED illuminated plug. Typical Applications include tank drain and low pressure general industry applications.

Model Port Size (BSP) Orifice ømm CV Pressure Air Pressure Liquid Media Temperature Coil Specifications
ES56-3-4-*N 3/8 4 0.5 0 to7 Bar 0 to 5 Bar -10°C to 80°C SC-E16H
45 Volt Amps
30 Watts
Class H Insulation
100% ED
ES56-4-16-*N ½ 16 4.5 0 to7 Bar 0 to 5 Bar -10°C to 80°C
ES56-5-20-*N ¾ 20 9.3 0 to7 Bar 0 to 5 Bar -10°C to 80°C
ES56-6-25-*N 1 25 13.2 0 to7 Bar 0 to 5 Bar -10°C to 80°C

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

(ES56)

Normally Open 2 way zero differential solenoid valve

Model K (BSP) A B C D Weight Kg
ES56-3-4-*N 3/8” 110 33 125 58 0.8
ES56-4-16-*N 1/2” 120 56 172 69 0.8
ES56-5-20-*N 3/4” 125 55 172 73 0.9
ES56-6-25-*N 1” 125 78 195 99 1.35

All dimensions in mm unless otherwise shown.

Size 3/8" to 1" BSP
Function Normally Open (power to close)
Valve Operation Coupled Diaphragm
Body 304 Stainless Steel
Seat NBR
Pressure Range 0 to 5 BAR
Media Non aggressive media
