Features:
Size 1/4" to 1/2" BSP
Function Female Quick Connector
Body 304 Stainless Steel
Pressure 15 Bar
Temperature -10°C to 80°C

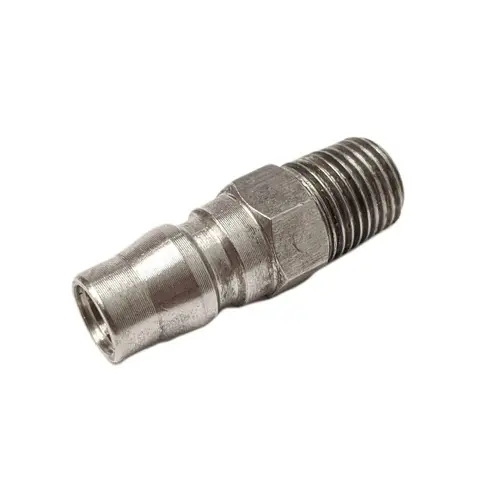

304 Stainless Steel threaded male quick coupler adaptor with NBR seals. Nitto compatable. Ideal for use in air lines or other applications where fluid is present and corosion resistance is required.
(S-PM)

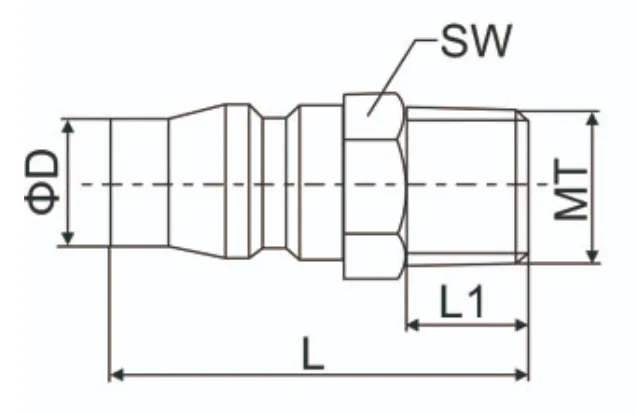

Model | L | ØD | L1 | SW | MT (BSP) |
---|---|---|---|---|---|
S-20PM | 40 | 11 | 13 | 14 | 1/4" |
S-30PM | 41 | 11 | 14 | 19 | 3/8" |
S-40PM | 42.5 | 11 | 15 | 21 | 1/2" |
All dimensions in mm unless shown otherwise.
Size 1/4" to 1/2" BSP
Function Female Quick Connector
Body 304 Stainless Steel
Pressure 15 Bar
Temperature -10°C to 80°C
