G1/2" 13 Bar Stainless Steel Globe Valve

SKU: GLS-04

$38.50
Inc GST In Stock
Free Shipping Australia Wide*

Size


Calculate Shipping


BSP Threaded 316 Stainless Steel Globe Valve. Aluminium Hand Wheel.G1/2" CF8M body, CF8M Disc, 316 SS trim, PTFE packing & seals.0-13.6 BAR (200psi) pressure range, media temp -20°C to 180°C.Media: Air, water, gas, oil & some acids. Steam to 10 Bar.

DATA SHEET

Forged Stainless Steel threaded Globe Valve with metal seat. Tested in accordance with API 598. Max temperature of 180°C.  PTFE gasket and packing with stainless steel seats and disc for greater durability and wear. Great for steam and high temperature applications. Globe Valves are also regularly used over gate valves or other manual control valves where the user wants to achieve a greater degree of flow control. As the shaft comes down it has a 'globe shape' on the bottom of it which slowly cuts down the flow before shutting off on the seat. All globe valves come are available with testing and mil certificates.

Model DN (mm) Pressure Range Media Temp CV
GLS-04 15 0 to 13 Bar -20°C to 180°C 10
GLS-05 20 0 to 13 Bar -20°C to 180°C 27
GLS-06 25 0 to 13 Bar -20°C to 180°C 52
GLS-07 32 0 to 13 Bar -20°C to 180°C 90
GLS-08 40 0 to 13 Bar -20°C to 180°C 140
GLS-09 50 0 to 13 Bar -20°C to 180°C 265

Stainless Steel Threaded Globe Valve Pressure vs Temperature

(GLS)

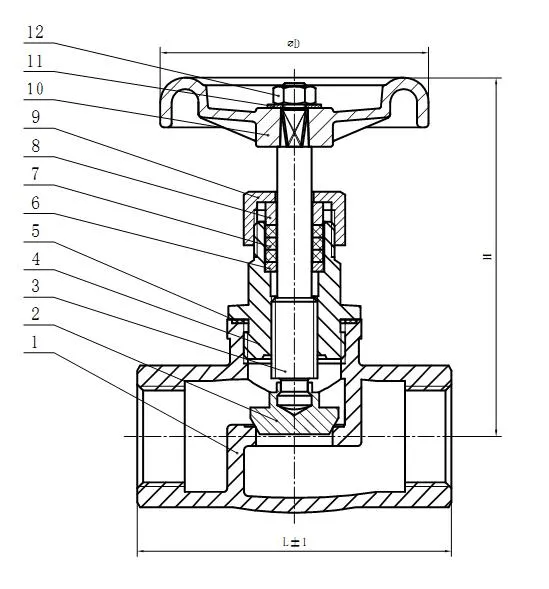

Stainless Steel Threaded Globe Valve

Model Size L H D Weight (kg)
GLS-04 ½” 61 90 65 0.4
GLS-05 ¾” 74 96 72 0.5
GLS-06 1” 85 102 72 0.7
GLS-07 1 ¼” 95 120 96 1.2
GLS-08 1 ½” 104 126 105 1.5
GLS-09 2” 123 140 105 2.2

All dimensions in mm unless shown otherwise.

Stainless Steel Threaded Globe Valve

Number Name Material
1 Body ASTM A351 CF8M
2 Disc ASTM A351 CF8M
3 Stem ASTM A276 316
4 Bonnet ASTM A351 CF8M
5 Body Gasket PTFE
6 Washer ASTM A276 316
7 Packing PTFE
8 Packing Sleeve ASTM A276 316
9 Packing Gland ASTM A351 CF8M
10 Hand Wheel Aluminium Alloy
11 Nut ASTM A194-B8M
12 Plain Washer ASTM A276 304

Size 1/2" to 2" BSP
Body 316 Stainless Steel
Seat Stainless Steel
Nominal Pressure 13 BAR
Max Temp 180°C
