Stainless Steel General Purpose Normally Open Solenoid Valve

Stainless Steel General Purpose Normally Open Solenoid Valve

SKU: S36

$170.50
Inc GST In Stock
Make an Enquiry
Free Shipping Australia Wide
Size
Voltage
Select Options

DATA SHEET

This 304 Stainless Steel normally open (power to close) differential solenoid valve is suitable for non aggressive media up to 40 centistoke viscosity. Typically used for air, water, mechanical services, irrigation and general industry or any application downstream of a pump or compressor (or mains). Comes with EPDM seat and seals and is continuously rated (100% ED). Soft close anti water hammer design. Threads conform to ISO 7.1 Sealing Threads.

Model Port Size (BSP) Orifice ømm CV Media Pressure Media Temperature Coil Specifications
S36-4-14-*N 1/2 14 5 0.25 to 16 BAR -10°C to 90°C SC-N12
11 Volt Amps
15 Watts
Class H Insulation
100% ED
S36-5-20-*N 3/4 20 10 0.25 to 16 BAR -10°C to 90°C
S36-6-25-*N 1 25 11 0.25 to 16 BAR -10°C to 90°C
S36-7-40-*N 1 ¼ 40 28 0.7 to 16 BAR -10°C to 90°C SC-N14
20 Volt Amps
21 Watts
Class H Insulation
100% ED
S36-8-40-*N 1 ½ 40 34 0.7 to 16 BAR -10°C to 90°C
S36-9-50-*N 2 50 50 0.7 to 16 BAR -10°C to 90°C

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC.

For Installation and Maintenance instructions please click here or find in our References section under Valve Installation and Maintenance for Solenoid Valves.

(S36)

2 way Stainless Steel Normally Open Differential Solenoid valve

Model G (BSP) L A B C Weight Kg
S36-4-14-*N 1/2 64 85 99 40 0.5
S36-5-20-*N 3/4 82 95 115 60 1.3
S36-6-25-*N 1 82 95 115 60 1.3
S36-7-40-*N 1 ¼ 135 113 142 92 2.9
S36-8-40-*N 1 ½ 135 113 142 92 2.8
S36-9-50-*N 2 160 124 158 108 4.2

All dimensions in mm unless otherwise shown.

Size 1/2" to 2" BSP
Function Normally Open (power to close)
Valve Operation Servo Assisted
Body 304 Stainless Steel
Seat EPDM
Pressure Range 0.3 to 16 BAR
Media Non aggressive media

Others Also Bought


Brass General Purpose Normally Closed Differential Solenoid Valve

SKU: B35

Brass General Purpose Normally Closed Differential

From $77.00

More Info
Brass General Purpose Manual Override Normally Closed Differential Solenoid Valve

SKU: B35M

Brass General Purpose Manual Override Normally Clo

From $137.50

More Info
Brass General Purpose Normally Open Differential Solenoid Valve

SKU: B36

Brass General Purpose Normally Open Differential S

From $104.50

More Info
High Pressure Normally Closed Solenoid Valve 1/4" Only

SKU: B55H

High Pressure Normally Closed Solenoid Valve 1/4"

From $181.50

More Info

More From This Category


Brass Petrochemical Normally Open Differential Solenoid Valve

SKU: B56

Brass Petrochemical Normally Open Differential Sol

From $385.00

More Info
Stainless Steel Petrochemical Normally Open Differential Solenoid Valve

SKU: S56

Stainless Steel Petrochemical Normally Open Differ

From $698.50

More Info
5 Way 2 Postion Namur Double Solenoid Valve

SKU: END

5 Way 2 Postion Namur Double Solenoid Valve

From $104.50

More Info
Stainless Steel Normally Closed Direct Acting IEC Ex Solenoid Valve

SKU: S55DEX

Stainless Steel Normally Closed Direct Acting IEC

From $1,320.00

More Info

S36

Stainless Steel General Purpose Normally Open Solenoid Valve

Features:

Size 1/2" to 2" BSP
Function Normally Open (power to close)
Valve Operation Servo Assisted
Body 304 Stainless Steel
Seat EPDM
Pressure Range 0.3 to 16 BAR
Media Non aggressive media

Description:

This 304 Stainless Steel normally open (power to close) differential solenoid valve is suitable for non aggressive media up to 40 centistoke viscosity. Typically used for air, water, mechanical services, irrigation and general industry or any application downstream of a pump or compressor (or mains). Comes with EPDM seat and seals and is continuously rated (100% ED). Soft close anti water hammer design. Threads conform to ISO 7.1 Sealing Threads.

Model Port Size (BSP) Orifice ømm CV Media Pressure Media Temperature Coil Specifications
S36-4-14-*N 1/2 14 5 0.25 to 16 BAR -10°C to 90°C SC-N12
11 Volt Amps
15 Watts
Class H Insulation
100% ED
S36-5-20-*N 3/4 20 10 0.25 to 16 BAR -10°C to 90°C
S36-6-25-*N 1 25 11 0.25 to 16 BAR -10°C to 90°C
S36-7-40-*N 1 ¼ 40 28 0.7 to 16 BAR -10°C to 90°C SC-N14
20 Volt Amps
21 Watts
Class H Insulation
100% ED
S36-8-40-*N 1 ½ 40 34 0.7 to 16 BAR -10°C to 90°C
S36-9-50-*N 2 50 50 0.7 to 16 BAR -10°C to 90°C

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC.

For Installation and Maintenance instructions please click here or find in our References section under Valve Installation and Maintenance for Solenoid Valves.

.

Stainless Steel General Purpose Normally Open Solenoid Valve

S36

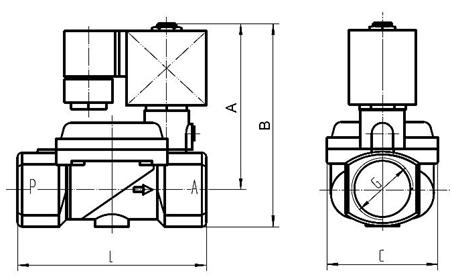

Dimensions:

2 way Stainless Steel Normally Open Differential Solenoid valve

Model G (BSP) L A B C Weight Kg
S36-4-14-*N 1/2 64 85 99 40 0.5
S36-5-20-*N 3/4 82 95 115 60 1.3
S36-6-25-*N 1 82 95 115 60 1.3
S36-7-40-*N 1 ¼ 135 113 142 92 2.9
S36-8-40-*N 1 ½ 135 113 142 92 2.8
S36-9-50-*N 2 160 124 158 108 4.2

All dimensions in mm unless otherwise shown.

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult Process Systems Pty Ltd. Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by Process Systems Pty. Ltd. are warranted by Process Systems to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. Process Systems obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of Process Systems and provided such defective product is returned to Process Systems freight prepaid and upon examination by Process Systems such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from Process Systems Pty. Ltd. representatives or employees. Process Systems reserves the right to change Valve and Brochure specifications without notice.

.
