G1/4" NO 0-10 Bar 12v DC FKM

SKU: B56-2-3-7V

$291.50
Inc GST In Stock
Free Shipping Australia Wide*

size
Voltage
Orrifice


Calculate Shipping


Brass 2 way 2 position normally open direct acting solenoid valve.G1/4", 3mm orifice, 304 SS operator, copper shading ring, FKM seat.0-10 BAR pressure range, vacuum 27"Hg, media temp -10°C to 100°C.Coil Class H insulation, 12 Watts, IP65 protection.

A direct acting normally open (power to close) brass forged body solenoid valve with a stainless steel operator. Suitable for low head and zero head applications. available in various seat materials including Viton (standard), Silicone, Neoprene, EPDM & Nitrile (contact us for any seals other than standard). Liquids to 40cst viscosity. Standard coil is weatherproof to IP65 and has LED illuminated plug. Typical Applications include: Petrochemical, diesel farms, vacuum packaging, tank drain or low pressure service & general industry.

Model Port Size BSP Orifice ømm CV Media Pressure Media Temperature Coil Specifications
B56-2-3-*V 1/4 3 0.26 0 to 10 BAR -10°C to 100°C SC-C2
24.4 Volt Amps
18 Watts
Class F Insulation
100% ED
B56-2-4-*V 1/4 4 0.58 0 to 6 BAR -10°C to 100°C
B56-2-5-*V 1/4 5 0.64 0 to 4 BAR -10°C to 100°C
B56-3-4-*V 3/8 4 0.58 0 to 6 BAR -10°C to 100°C
B56-3-6-*V 3/8 6 0.79 0 to 2 BAR -10°C to 100°C
B56-4-6-*V 1/2 6 0.79 0 to 2 BAR -10°C to 100°C

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

(B56D)

Brass Normally Open DIrect Acting Solenoid Valve

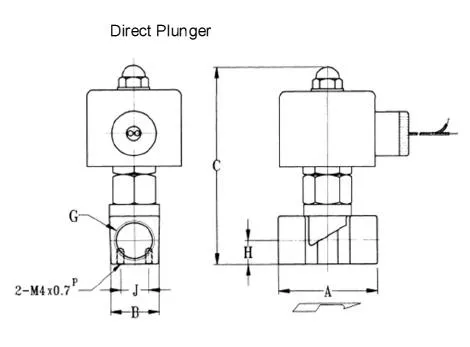

Model G (BSP) A B C H J Weight Kg
B56-2-3-*V 1/4 41 19 108 10.5 15 0.50
B56-2-4-*V 1/4 41 19 108 10.5 15 0.50
B56-2-5-*V 1/4 41 19 108 10.5 15 0.50
B56-3-4-*V 3/8 50 25 110 11.7 15 0.80
B56-3-6-*V 3/8 50 25 110 11.7 15 0.80
B56-4-6-*V 1/2 55 27 112 13 15 0.95

All dimensions in mm unless otherwise stated.

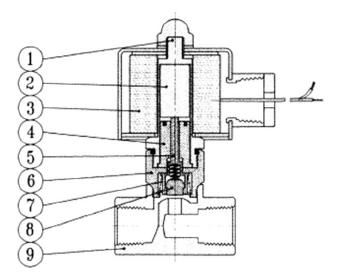

Brass Normally Open DIrect Acting Solenoid Valve Construction

Item Article Material
1 Solenoid Tube Stainless Steel
2 Slide Core Stainless Steel
3 Coil Brass Wire
4 Armature Core Stainless Steel
5 Operating Spindle Stainless Steel
6 Joint Sleeve Stainless Steel
7 Spring Stainless Steel
8 Seat Viton
9 Valve Body Brass

Size 1/4" to 1/2" BSP
Function Normally Open (power to close)
Valve Operation Direct Acting
Body Brass
Seat FKM
Pressure Range 0 to 10 BAR (depending on size)
Media Petrochemical
