Features:
Shape Square
Voltage 10 to 250v AC/DC
Features Illuminated LED + MOV Surge Supression

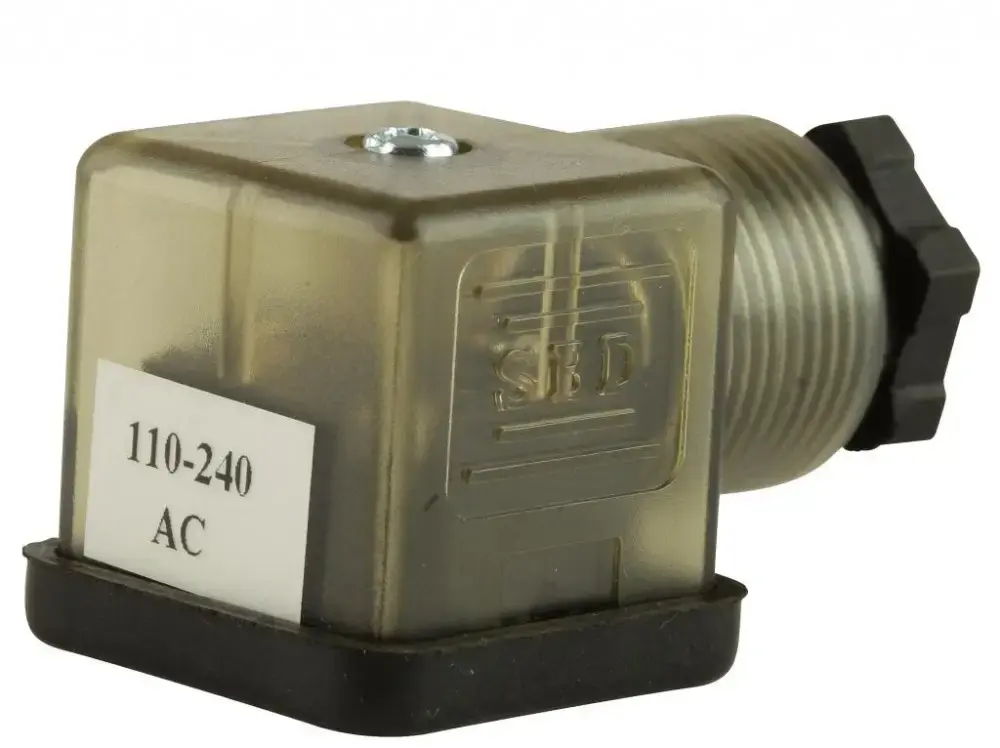

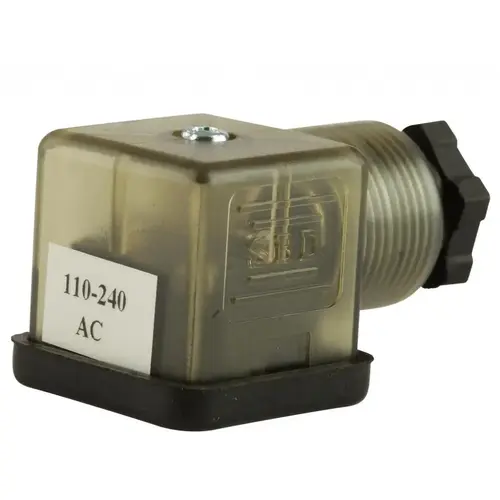

Hirschman type connector DIN 43650 for solenoid valve. Interface between the solenoid coil terminal and the supply wires.
Model | Plug Dimensions (mm) | Description | Gromet (ID mm) | Cable Gland | Voltage Range | Pin Details |
---|---|---|---|---|---|---|
DPSM-6-H-PG11 | 28 x 28 | Square Surge Suppression DIN 43650A | 6 | PG11 | 61~240v AC/DC | 2 Pin + Earth 18mm Pin spacing |
DPSM-6-L-PG11 | 28 x 28 | Square Surge Suppression DIN 43650A | 6 | PG11 | 0~60v AC/DC | 2 Pin + Earth 18mm Pin spacing |
(DPSM)
Shape Square
Voltage 10 to 250v AC/DC
Features Illuminated LED + MOV Surge Supression
