• Solenoid Mounted Digital Timer
  • Solenoid Mounted Digital Timer

SKU: EMD

Solenoid Mounted Digital Timer

From $198.00

Inc GST
In Stock
Make an Enquiry

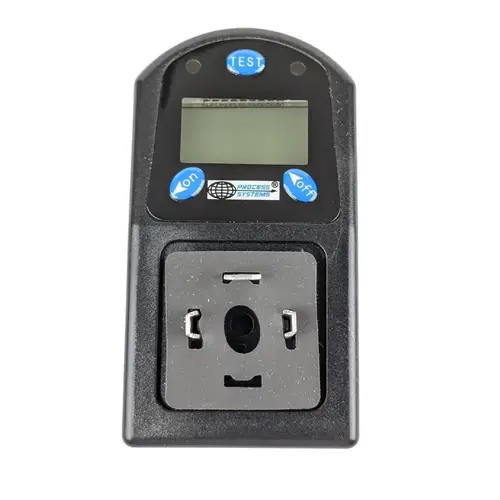

Digital sandwich timer which fits between the DIN plug and coil on a solenoid valve. With a broad range of functions (see below) and programable from 0.01 seconds to 99 hours it fits a wide range of uses. Easy to use with a maximum of 1 Amp current. Featuring a Non-Volatile memory that will reset to the beginning of its set function if power is removed from the unit, but still remember your programmed settings.

Supply Voltage EMD-12A = 110~240v AC/DC
EMD-12B = 10~48v AC/DC
ON Time (Whole Intervals) 10 to 990 milliseconds
1 to 99 seconds
1 to 99 minutes
1 to 99 hours
OFF Time (Whole Intervals) 10 to 990 milliseconds
1 to 99 seconds
1 to 99 minutes
1 to 99 hours
Current consumption 4 mA Max
Case Material ABS plastic
Connection DIN 43650-A, ISO 4400/6952
Indicators Digital Display
Environmental Protection IP65 Nema 4
Certifications CE, cULus, RoHS



Function Number Function
A Start with ON time and then OFF time, repeats indefinitely.
B Single shot, starts with ON time and then switches OFF indefinitely.
C Start with OFF time and then ON time, repeats indefinitely.
D Single shot, starts with OFF time and then switches ON indefinitely.
E Start with ON time then OFF time and then switches ON indefinitely.
F Start with OFF time then ON time and then switches OFF indefinitely.

Factory Setting is function A.

Electronic Solenoid Valve Timer

Electronic Solenoid Valve Timer

Function Digital Sandwich Timer
Operation 0.01 to 99 hours programable
Max Current 1 Amp
Voltage 10v to 240v AC/DC
Functions 6

DATA SHEET

We Also Recommend

Others Also Bought

EMD

Solenoid Mounted Digital Timer

Features:

Function Digital Sandwich Timer
Operation 0.01 to 99 hours programable
Max Current 1 Amp
Voltage 10v to 240v AC/DC
Functions 6

Description:

Digital sandwich timer which fits between the DIN plug and coil on a solenoid valve. With a broad range of functions (see below) and programable from 0.01 seconds to 99 hours it fits a wide range of uses. Easy to use with a maximum of 1 Amp current. Featuring a Non-Volatile memory that will reset to the beginning of its set function if power is removed from the unit, but still remember your programmed settings.

Supply Voltage EMD-12A = 110~240v AC/DC
EMD-12B = 10~48v AC/DC
ON Time (Whole Intervals) 10 to 990 milliseconds
1 to 99 seconds
1 to 99 minutes
1 to 99 hours
OFF Time (Whole Intervals) 10 to 990 milliseconds
1 to 99 seconds
1 to 99 minutes
1 to 99 hours
Current consumption 4 mA Max
Case Material ABS plastic
Connection DIN 43650-A, ISO 4400/6952
Indicators Digital Display
Environmental Protection IP65 Nema 4
Certifications CE, cULus, RoHS



Function Number Function
A Start with ON time and then OFF time, repeats indefinitely.
B Single shot, starts with ON time and then switches OFF indefinitely.
C Start with OFF time and then ON time, repeats indefinitely.
D Single shot, starts with OFF time and then switches ON indefinitely.
E Start with ON time then OFF time and then switches ON indefinitely.
F Start with OFF time then ON time and then switches OFF indefinitely.

Factory Setting is function A.

.

Solenoid Mounted Digital Timer

EMD

Dimensions:

Electronic Solenoid Valve Timer

.

Solenoid Mounted Digital Timer

EMD

Construction:

Electronic Solenoid Valve Timer

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult Process Systems Pty Ltd. Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by Process Systems Pty. Ltd. are warranted by Process Systems to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. Process Systems obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of Process Systems and provided such defective product is returned to Process Systems freight prepaid and upon examination by Process Systems such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from Process Systems Pty. Ltd. representatives or employees. Process Systems reserves the right to change Valve and Brochure specifications without notice.
