SKU: P55

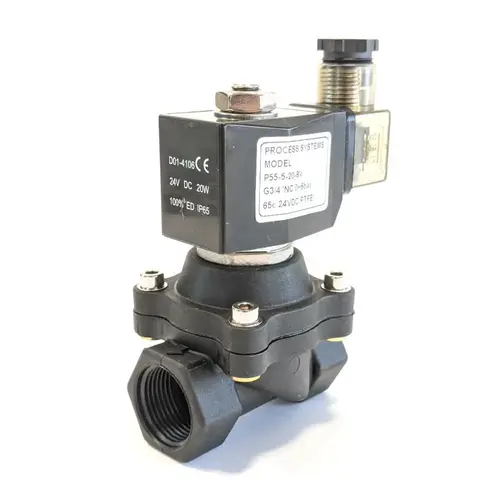

Nylon General Purpose Normally Closed Zero Differential Solenoid Valve

From $82.50

Inc GST
In Stock
Make an Enquiry

General purpose zero differential solenoid valve for general purpose applications. Glass reinforced nylon body for added strength and viton seals for chemical resistance. Normally closed (energise to open) and available in all voltages. Comes with coil (class F insulation) and DIN plug (IP65 protection). Ideal for tank drain, low head and irrigation applications. Threads conform to ISO 7.1 Sealing Threads.

Model Port Size (BSP) Orifice ømm CV Media Pressure Media Temp Repair Kit Coil Specifications
P55-4-16-*V 1/2 16 4.8 0 to 6 BAR 5°C to 65°C RK-P55-5-V SC-E16
33 Volt Amps
20 Watts
Class H Insulation
100% ED
P55-5-20-*V 3/4 20 7.6 0 to 6 BAR 5°C to 65°C RK-P55-5-V
P55-6-25-*V 1 25 12 0 to 6 BAR 5°C to 65°C RK-P55-6-V

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

For Installation and Maintenance instructions please click here or find in our References section under Valve Installation and Maintenance for Solenoid Valves.

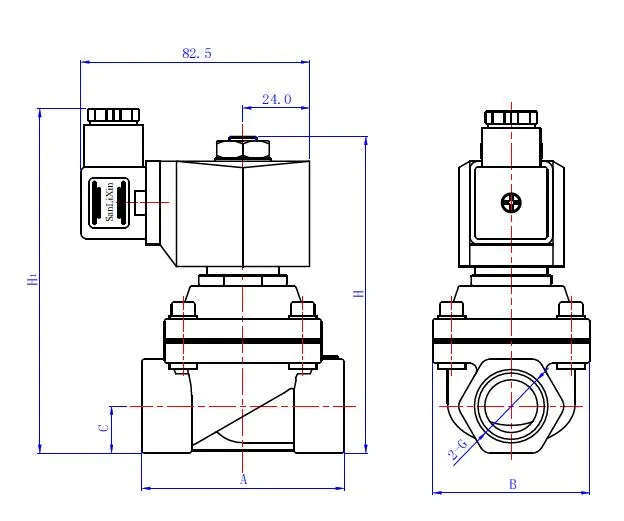

Nylon Zero Differential Normally Closed Solenoid Valve

Model G (BSP) A B C H Weight (kg)
P55-4-16-*V 1/2 69 57 15.5 107 0.57
P55-5-20-*V 3/4 73 57 17 115 0.60
P55-6-25-*V 1 99 77 21 121 0.70

All dimensions in mm unless noted otherwise.

Size 1/2" to 1" BSP
Function Normally Closed (power to open)
Valve Operation Servo Assisted
Body Glass Reinforced Nylon
Seat FKM
Pressure Range 0 to 6 BAR
Media Non aggressive media, some chemicals

.
.
