Features:
Shape Square Mini
Voltage 10 to 250v AC/DC
Features Illuminated LED

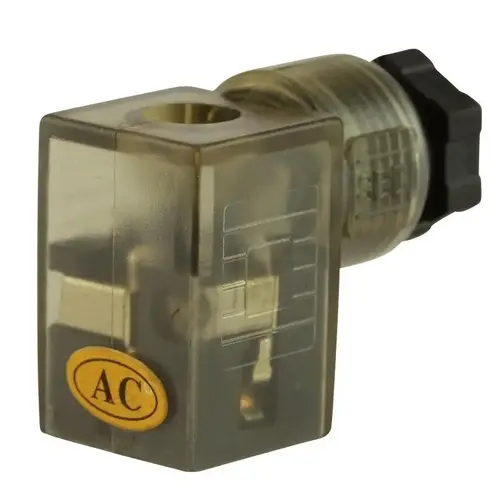

Hirschman type connector DIN 43650 for solenoid valve. Interface between the solenoid coil terminal and the supply wires.
Model | Plug Dimensions (mm) | Description | Gromet (ID mm) | Cable Gland | Voltage Range | Pin Details |
---|---|---|---|---|---|---|
DPML-4-H-PG7 | 15 x 15 | Mini square plug LED Illuminated DIN 43650 | 4 | PG7 | 70~250v AC/DC | 2 Pin + Earth 9.4mm Pin Spacing |
DPML-4-L-PG7 | 15 x 15 | Mini square plug LED Illuminated DIN 43650 | 4 | PG7 | 10~50v AC/DC | 2 Pin + Earth 9.4mm Pin Spacing |
(DPML)
Shape Square Mini
Voltage 10 to 250v AC/DC
Features Illuminated LED
