Features:
Size 1/4" to 1/2" BSP
Function Female Quick Connector
Body Plated Steel
Pressure 8 Bar
Temperature 0°C to 50°C

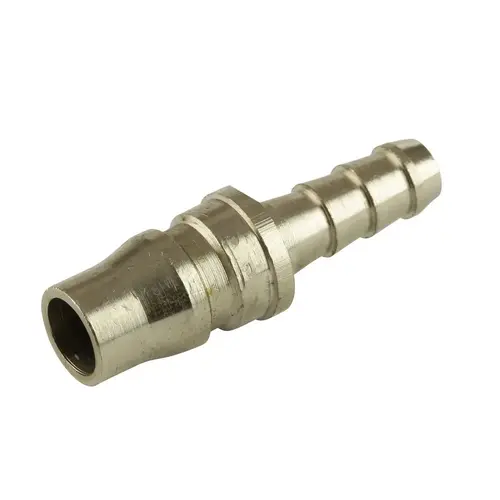

Male Quick Connector to hose barb. Great for attatching a male quick connect to the end of an air hose. Simply slide the hose over the end of the hose barb and clamp on.
(PHC)

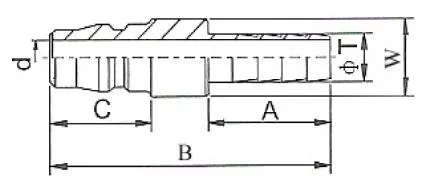

Item | B | A | C | øW | d | øT |
---|---|---|---|---|---|---|
PHC-08 | 49.5 | 24 | 20 | 15 | 7.5 | 8.3 |
PHC-10 | 50 | 24 | 20 | 15 | 7.5 | 10.3 |
PHC-12 | 51 | 26 | 20 | 17 | 7.5 | 13.3 |
All dimensions in mm unless shown otherwise.
Size 1/4" to 1/2" BSP
Function Female Quick Connector
Body Plated Steel
Pressure 8 Bar
Temperature 0°C to 50°C
