Features:
Size 1/8" to 4" BSP
Function M&F Elbow
Body 316 Stainless Steel
316 Stainless Steel threaded BSP Male to Female Elbow (M&F). Great for use in a wide range of industrial applications. All threads are qualified and fittings are acid cleaned to ensure they are free from swarf and contaminants. 150 pound pressure rating.
(SF25)

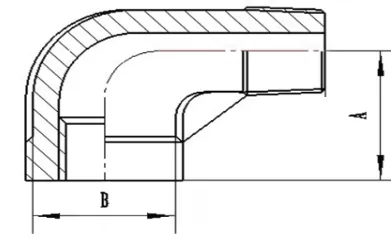

Size | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" | 2 1/2" | 3" | 4" |
---|---|---|---|---|---|---|---|---|---|---|---|---|
A | 15.5 | 16.5 | 18.2 | 20.5 | 23.2 | 29.5 | 35 | 37.5 | 49.5 | 62.5 | 79.5 | 100.5 |
B | 13 | 27 | 29 | 30 | 38 | 44.2 | 53 | 56 | 70 | 84 | 97.5 | 121 |
All Dimensions in mm unless shown otherwise.
