Features:
Size 8mm to 12mm Hose
Function Hose Quick Connector
Body Plated Steel
Pressure 8 Bar
Temperature 0°C to 50°C
Female Quick Connector to male hose barb. Great for putting a quick connector on the end of your air hose by sliding the hose over the barb and clamp it in place.
(SHC)

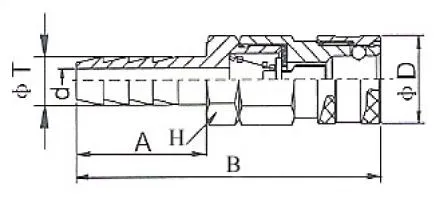

Item | B | A | øT | d | H | øD |
---|---|---|---|---|---|---|
SHC-08 | 58 | 26.7 | 8.3 | 5 | 19 | 22 |
SHC-10 | 60 | 25.5 | 10.4 | 7 | 19 | 23 |
SHC-12 | 60 | 26.4 | 12 | 7.8 | 20 | 23 |
All diemnsiosn in mm unless shown otherwise.
Size 8mm to 12mm Hose
Function Hose Quick Connector
Body Plated Steel
Pressure 8 Bar
Temperature 0°C to 50°C
