Flanged Electric 3 Way Stainless Steel

From $907.50

In Stock
Make an Enquiry

High performance 3 way full bore 316 Stainless Steel ball valve with ANSI 150 flanged connections and an electric actuator. Self adjusting stem packing assembly with belleville spring for temperature fluctuations and vibration. Pre drilled metric ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. Powder coated die aluminium electric actuator with visual indicator, extra limit switches and a manual override. Typical applications include water treatment, chemical, marine, petrochemical and general industry.

Model DN (mm) Actuator Media Pressure Media Temperature
BLS3L4FA-E*-RT 15 0M-1 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L5FA-E*-RT 20 0M-1 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L6FA-E*-RT 25 0M-1 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L7FA-E*-RT 32 0M-A Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L8FA-E*-RT 40 0M-2 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L9FA-E*-RT 50 0M-2 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L10FA-E*-RT 65 0M-3 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L11FA-E*-RT 80 0M-4 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L12FA-E*-RT 100 0M-4 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C

*Voltage Code 1 = 240v AC, 2 = 110v AC, 5 = 24v AC, 7 = 12v DC, 8 = 24v DC. Change the 'L' (L port) to a 'T' (T port) as required.

L Port T Port

Electric Flanged 3 way stainless steel ball valve

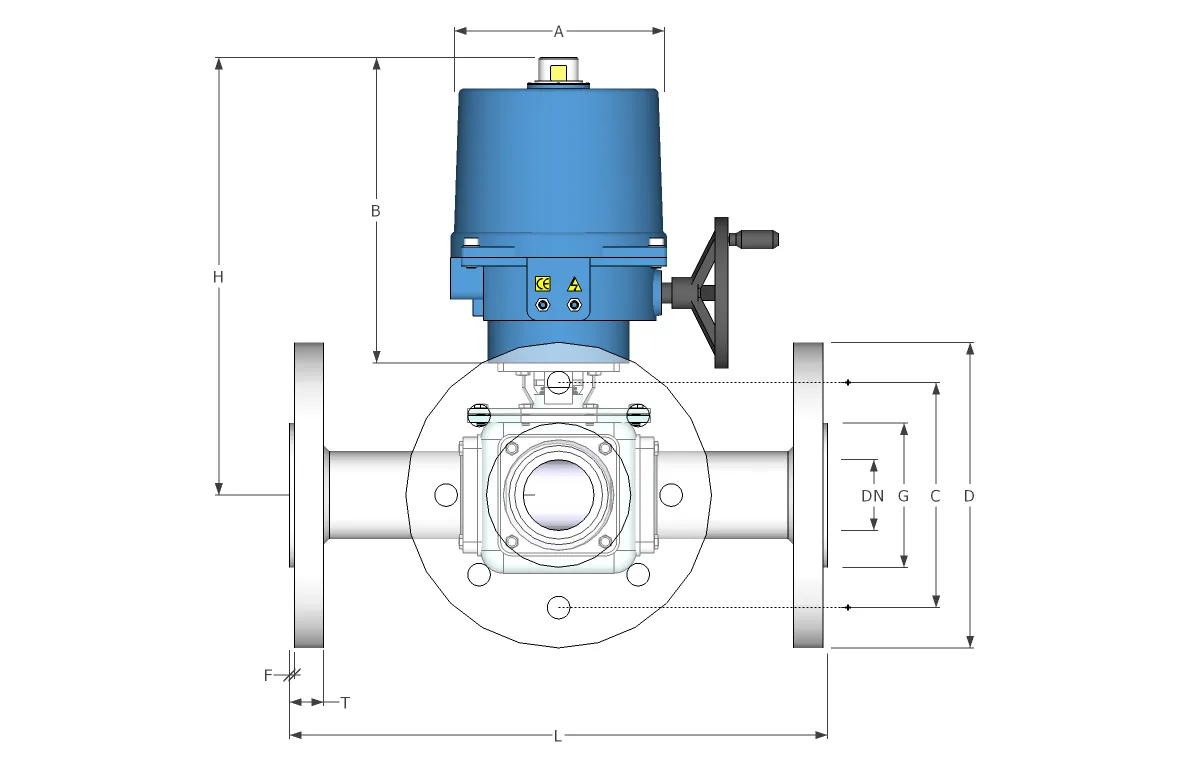

DN Actuator A B C D F G H L T
15 0M-1 108 155 60.5 89 2 35 199.5 152 11
20 0M-1 108 155 70 98 2 43 204 167 11
25 0M-1 108 155 79.5 108 2 51 209 180 12
32 0M-A 108 200 89 117 2 64 258.5 190 13
40 0M-2 200 290 98.5 127 2 73 353.5 212 15
50 0M-2 200 290 120.5 152 2 92 366 230 16
65 0M-3 200 290 139.5 178 2 105 379 290 18
80 0M-4 234 315 152.5 190.5 2 127 410.25 310 19
100 0M-4 234 315 190.5 229 2 157 429.5 350 24

All dimensions in mm unless shown otherwise.

Electric Stainless Steel 3 way flanged ball valve

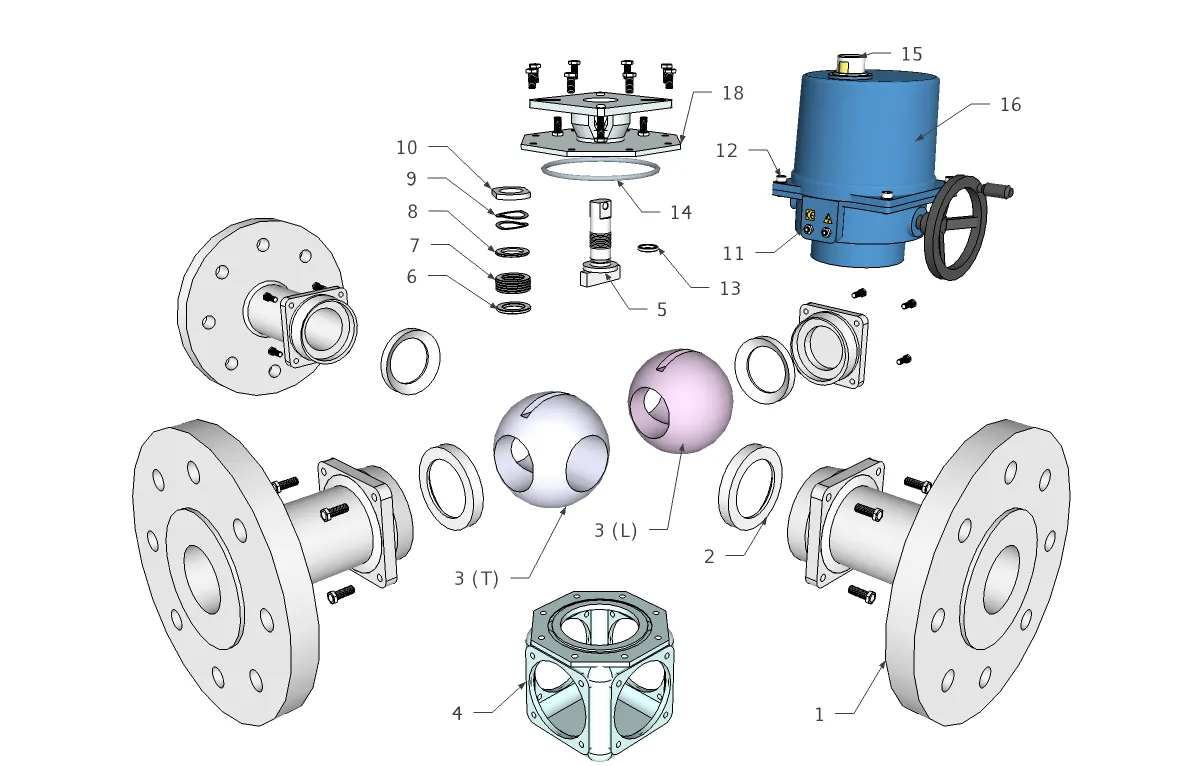

Number Item Material
1 Flanged End CF8M
2 Seat Reinforced PTFE
3 Ball ASTM A182 316
4 Body ASTM A351 CF8M
5 Shaft ASTM A276 316
6 Thrust Washer SS201
7 Chevron Packing PTFE
8 Shaft Seal Oring Viton
9 Belleville Washers SS201
10 Retaining Nut SS304
11 Conduit Entry Powder coated Aluminium
12 Screw SS316
13 Shaft Seal Viton
14 Cap Gasket PTFE
15 Indicator Metal/Polycarbonate
16 Actuator Body Powder coated Aluminium
18 Bonnet ASTM A351 CF8M

Size 15mm to 100mm
Body 316 Stainless Steel
Pressure 20 BAR @ ambient
Temperature -10°C to 180°C
Actuation Electric

  • What is a 3 Way Stainless Steel Flanged Electric Ball Valve?

    A three way stainless steel flanged electrically actuated ball valve operates on the same principle as a two way valve but instead of a complete isolation or completely open (2 states, closed or open) it will have one line open and one line closed. It is important to note that during its 90 degree turn from one line to another there is a point where all lines are partially open to each other even though this is for a limited period of time (the time for one cycle is around 12 seconds depending upon the actuator size). The 3 way flanged ball valve itself is made of cast stainless steel (CF8M) with a polished stainless steel ball and a direct mounted IP67 electric actuator. The size of the actuator will get bigger with the size of the valves as the torque required increases. We match all of our actuators with at least a 30% safety margin in torque.

  • How does a Flanged 3 Way Stainless Steel Electrically Actuated Ball Valve work?

    The 3 way flanged ball valve will work by the electric actuator rotating the ball 90 degrees in the valve. This will be in a clockwise or anticlockwise direction depending upon the actuator involved (ours usually open anti clockwise). The actuator itself is controlled by an external relay that you wire in upon installation (eg. a switch). This will then turn the ball 90 degrees as the actuator is mated to the shaft of the ball valve, switching the ports to the other configuration. It is important to note that if power is lost during its cycle the actuator will remain in that position as it has no power to continue (similar to a double acting pneumatic actuator). The actuator itself has a visual indicator as well as an extra set of limit switches for end of position voltage free feedback. Power to the electric motor is cut once the valve does a 90 degree turn (1 cycle) by a switch which is fixed by a cam to the shaft inside the actuator.

  • How long will my Flanged 3 Way Stainless Steel Electric Ball Valve last?

    This depends upon  a range of variables including the usage case of your valve, its environment, media and how many times it is cycled. For instance if it is on a clean media, in a clean environment and not cycled regularly the life may be decades. If it is on a corrosive media and in a dry application with a high cycle rate the life will be much shorter. We conduct regular lab testing and 30,000 cycles is a reasonable life cycle depending upon the application. The actuator's life will depend upon how clean the environment is, its correct installation, its duty cycle and electrical supply. One common mistake we see is an incorrectly rated cable gland being installed. Our actuators are IP67 which gives you great water ingress protection but it will only be as good as the cable gland installation. You need to bear in mind the duty cycle of the actuator model you are using and do not exceed that eg. (if it is 75% you can use the actuator for 75 seconds with a 25 second down time out of 100 seconds). If you do it can lead to premature failure of the actuator. As the actuator is CE certified it has to meet a standard of 6,000 cycles in a general purpose application to get certified. The actuator may last a lot longer than this depending upon the above factors.

  • How do I install a Flanged 3 Way Stainless Steel Electrically Actuated Ball Valve?

    As this 3 way valve is ANSI 150 flanged it will be mated to another flange on the pipe of the same standard. A suitable gasket will be inserted between the two flanges (the gasket type and material will depend upon the application and user preference) to ensure proper sealing. The bolts connecting the flanges together should then be tightened in a diagonal direction with a torque wrench with the torque setting as per the flange & material standard. The actuator must be wired in accordance with the wiring diagram which is on the front of the actuator and also inside the housing. This varies between models so if in doubt please consult us.

  • What are typical uses of a three way flanged stainless steel electrically actuated ball valve?

    These three way flanged electric ball valves are used on a wide variety of applications. Everything from the food industry, power generation, mining and irrigation. The common theme though is where either a diversion (switching from one line to another) or isolation of one line to change over to another is used. The media can range from water, steam all the way through to corrosive chemicals that are compatible with the materials of the valve. As they are flanged they will be used on pipe installs where flanges are utilised, this allows for easy removal in the future for service or replacement. Being power open/power close they are not typically used on fail safe applications however you can get a spring return electric actuator however these are quite rare in application due to the pricing.

  • How long will my product take to get to me?

    This depends upon where you are based and the freight method chosen. If the express freight option is selected it is usually next day delivery to metropolitan areas in Australia for under 5kg. If free freight has been selected it will go by road freight which can be anywhere from 1 to 10 days depending upon your location. It usually averages 3 days.

  • What warranty do I get?

    All of our products come standard with a 12 month warranty. The good news is we have very strict quality controls and all valves leave our warehouse tested (full material and testing certificates to API598 are available) and inspected so there are rarely any issues. Also once your valve is in and operating it will most likely continue to do so for a very long time.
